Specification
AgeRangeDescription : above eight years old
Brand : AYWHP
BulletPoint1 : High Torque Performance: Delivering up to 35kg/cm at 7.4V, 35KG high torque servo metal gear servo perfect for heavy-duty RC and robotic applications
BulletPoint2 : Wide Application Range: The servo motor supports 0-270° rotation angles, RC servo is used for RC planes, helicopters, boats, cars, and DIY projects
BulletPoint3 : Efficient Performance: 35KG high torque servo equipped with a hollow cup motor and dual ball bearings for fast, quiet, and stable operation.
BulletPoint4 : Durable Design: The DS3235 high torque servo features stainless steel gears and CNC aluminum casing for enhanced durability and reliability.
BulletPoint5 : Wide Application: The DS3235 servo is compatible with RC planes, helicopters, boats, cars, and DIY electronics, and its servo motor meets diverse project needs.
Color : One Color
CpsiaCautionaryStatement : no_warning_applicable
ExternallyAssignedProductIdentifier : 7505319863863
IncludedComponents : 1 X High Torque Servo Motor Servo
ItemName : 35KG High Torque Servo Motor Servo AYWHP 1 Pcs RC Servo High Torque Metal Gear Digital Servo RC Servo Servo for RC Robotic/Helicopter/Car/Boat/DIY, 1/8 1/10 RC Car (Control Angle 0-270°)
ItemPackageDimensions_Height : 0.4 inches
ItemPackageDimensions_Length : 0.4 inches
ItemPackageDimensions_Width : 0.4 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : AYWHP
ManufacturerMaximumAge : 216
ManufacturerMinimumAge : 96
Material : Metal
ModelName : High Torque Servo Motor Servo
ModelNumber : jnxwenu01
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : 1
ProductDescription :

Warm Tip:

When the servo appears to shake, you may need to check whether the following conditions exist:

1, because the servo is a power-consuming device, so the power supply current needs to be sufficient. When the servo rotation, when the on-board power indicator appears flashing, servo rotation is not controlled or error significantly large and other anomalies, that the power supply current is insufficient to replace the power supply!

2, servo power supply positive voltage 5V ~ 8.4V can be, specific to the actual servo power supply voltage shall prevail.

3, Micro USB input 5V voltage, terminal socket input 6-8.4V voltage, the two sockets can not be used at the same time.

Descrtion：

The Binghe DS3235 is engineered to deliver exceptional performance with up to 35KG/cm torque.

Built with precision stainless steel gears, a CNC aluminum middle case, and a hollow cup motor, this servo motor guarantees durability and smooth operation for all your RC and robotics projects.

Features：

High Torque: 35KG/cm at 7.4V

High-Precision Gears: Stainless steel and aluminum construction

Dual Ball Bearings: Smooth and efficient

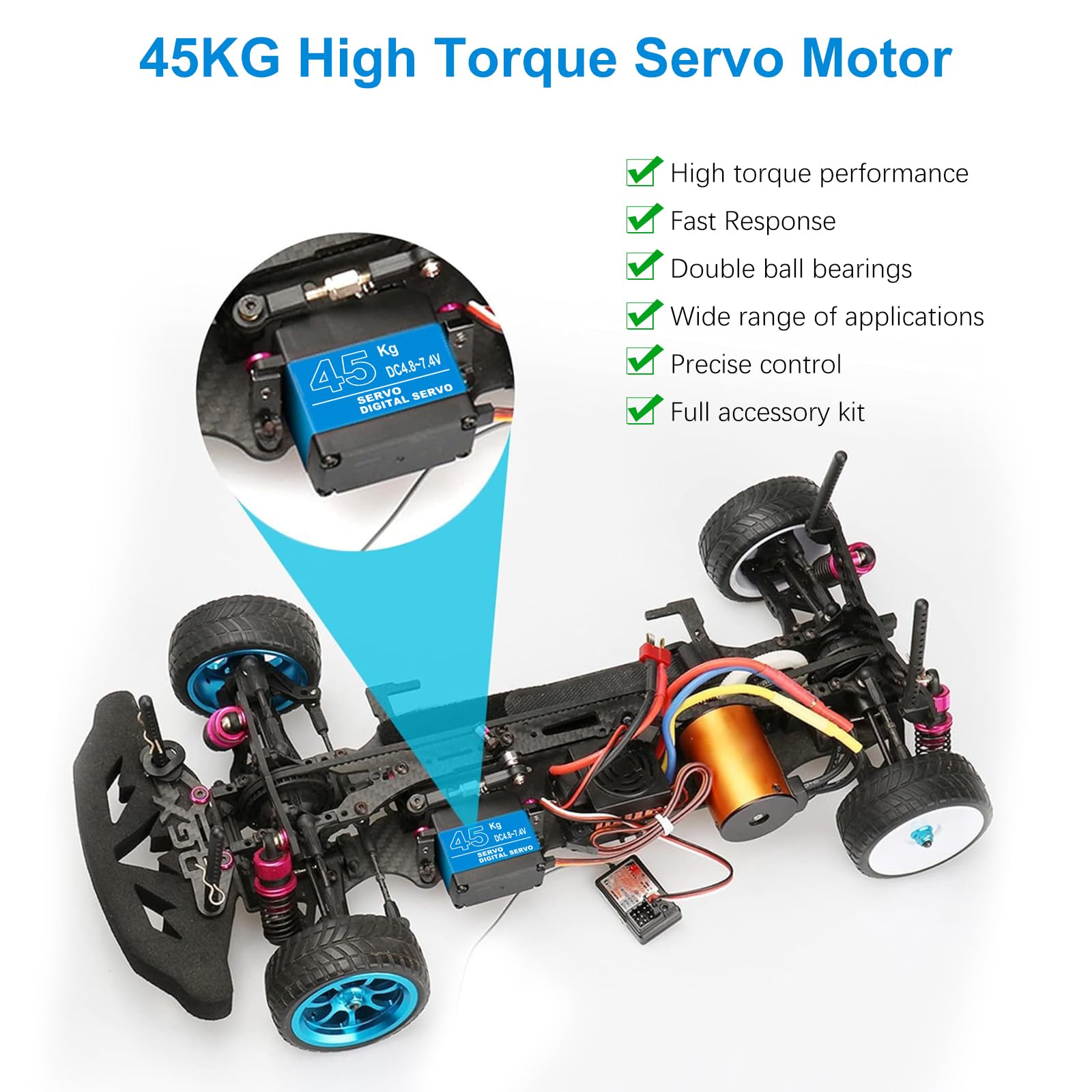

Versatile Applications: Perfect for RC planes, cars, boats, robotics

Operating voltage range: 5-7.4V Operating speed (at no load) : 0.13 sec/60 degree @5.0V

Operating speed (at no load): 0.12 sec/60 degree @6.0V

Operating speed (at no load): 0.11 sec/60 degree @ 7.4V

Stall torque (at locked): 29kg/cm @5.0V

Stall torque (at locked): 32kg/cm @6.0V

Stall torque (at locked) : 35kg/cm @7.4V

Stall current (at locked): 1.9A @5.0V

Stall current (at locked): 2.1 A@6.0V

Stall current (at locked): 2.3A@7.4V

Item:DS3235 35KG Coreless Stainless Steel Gear Digital Servo

Operating Voltage: 5 ~ 7.4 DC Volts

Dead brand: 3μs / 2 μs

Weight: 60 g (2.12 oz)

Motor Type: Coreless Motor

Gear Type: Copper & Aluminum / Stainless Steel & Aluminum

Working frequence: 50-333Hz

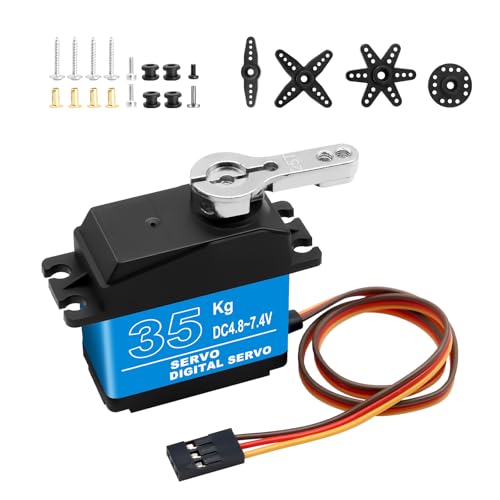

Package Included:

1 X DS3235 35KG High Torque Servo Motor

1 X 25T Adjustable Metal Servo Arm

1 X Servo Arms

1 X Screws Kit

ProductSiteLaunchDate : 2024-12-26T03:29:41.568Z
SafetyWarning : NOT
Size : 35KG 0-270°
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : unisex-children
TargetGender : unisex
UnitCount : 1
UnspscCode : 26111500
