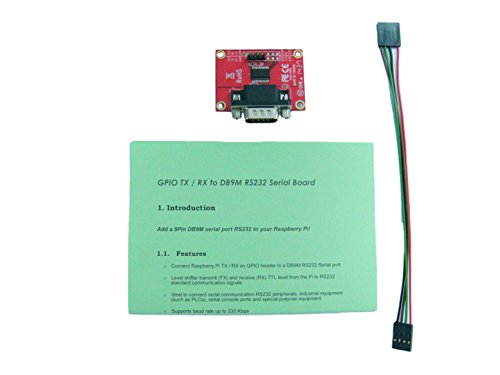

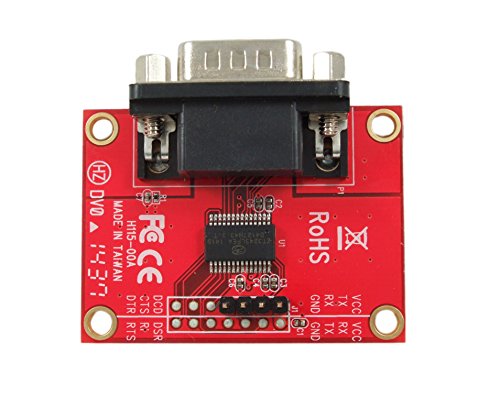

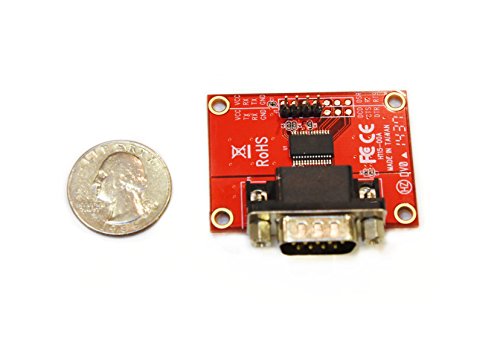

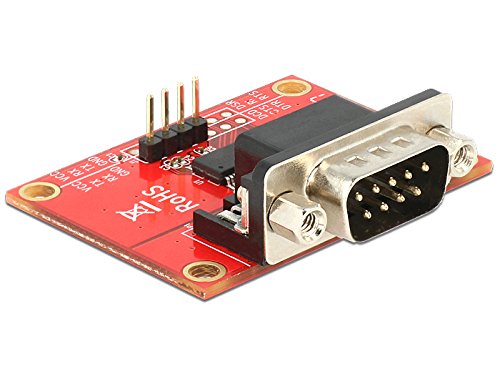

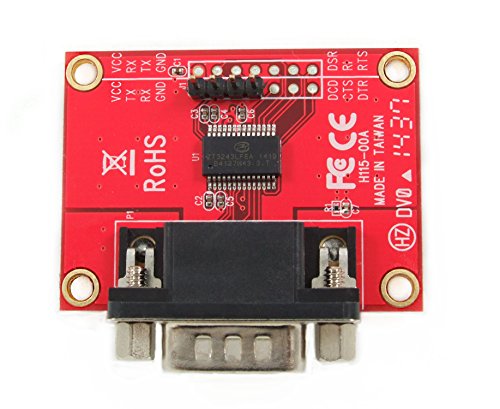

The Ableconn Pi accessory enables you to expand functions to your Raspberry Pi. The PI232DB9M let you add a 9-Pin DB9M serial port RS232 to your Raspberry Pi via an included cable that connects the 4-pin pin header and the GPIO pins of your Raspberry Pi . Specification * Connector: - 1 x serial RS232 DB9 male - 1 x 4-pin pin header * Chipset: zt3243 transceiver * One 16550 High performance UART (RS232) channel * Data transfer rate: - UART data rate up to 230 Kbps * Level shifter serial transmit (TX) and receive (RX) TTL level from the Pi to RS232 standard communication signals up to +- 25V.* Supports VCC input voltage: 2.7V ~ 5.25V * No device driver installation is required. * Dimensions (LxWxH): 1.9 x 1.6 x 0.5 in / 48 x 41 x 13 mm * CE, FCC, and Fully RoHS compliant. * Made in Taiwan System Requirements * GPIO pins for UART, +3.3V (Pi board), and GND Package Contents * Ableconn PI232DB9M GPIO TX / RX to DB9M RS232 Serial Board * 1 x header cable (4-pin to 5-pin) for Raspberry Pi Warranty * Limited One-Year Warranty and Lifetime Product Support
Features
1) Connect Raspberry Pi TX / RX on GPIO header to a DB9M RS232 Serial port
2) Level shifter serial transmit (TX) and receive (RX) TTL level from the Pi to RS232 standard communication signals up to +- 25V. Includes a PCBA and Pin Header cable for connecting with Pi GPIO.
3) Ideal to connect serial communication RS232 peripherals, industrial equipment (such as PLCs), serial console ports and special purpose equipment
4) Supports baud rate up to 230 Kbps; Supports VCC input 2.7V ~ 5.25V
5) CE, FCC, and Fully RoHS compliant. High quality product. Made in Taiwan.
Specification
Binding : Electronics
Brand : Ableconn
Color : GPIO UART Serial
Label : Ableconn
Manufacturer : Ableconn
Model : PI232DB9M
PackageDimensions_Weight : 0.10 pounds
PackageDimensions : L:5.60 X W:4.20 X H:1.80
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : Ableconn
Studio : Ableconn
Title : Ableconn PI232DB9M Compact GPIO TX / RX to DB9M RS232 Serial Expansion Board for Raspberry Pi
