Editorial Review

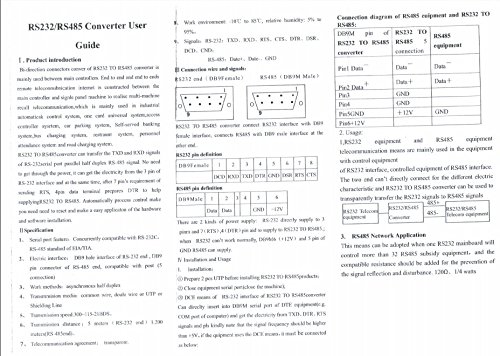

AYA-VGA-RS485 converter can convert the Transfer Data (TD) and Receive Data (RD) of RS-232C serial port to 2 wire half-duplex RS-485 signal. It's the best choice for long distance control devices and point to multi-point bus communications. This interface converter can work without power supply. It can "steal" power from TD signal, RTS signal of RS-485 port or DTR data terminator. It also has a plus function called Automatic Send Data Line Control, this is means that it doesn't need change the hardware configuration or install software. Perfectly surge protection ensures your RS-485 network security.

Features
1) Signals: RS-232: TXD, RXD,RTS, CTS,DTR, DSR, DCD, CND
2) DB9 hole interface of RS-232 edn,DB9 pin connector of RS-485 end, compatible with post (5 connection)
3) Common wire double wire or UTP or Shielding line
4) Transmission distance: 5 meters (RS-232 end) 1.200 meter(RS-485 end)
5) Transmission speed: 300~115~21BDS

Specification
Binding : Electronics
Brand : AYAGROUP
EAN : 0681441130220
Label : AYAGROUP
Manufacturer : AYAGROUP
Model : AYA-VGA-RS485
PackageDimensions_Weight : 0.10 pounds
PackageDimensions : L:4.50 X W:3.00 X H:0.90
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : AYAGROUP
Studio : AYAGROUP

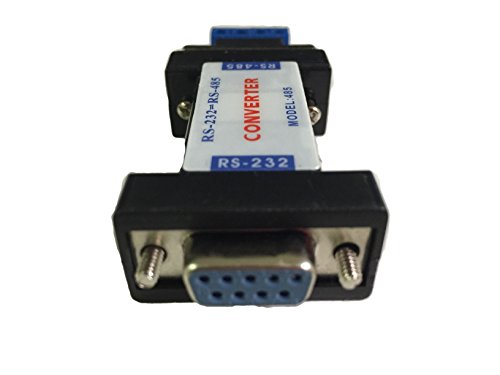

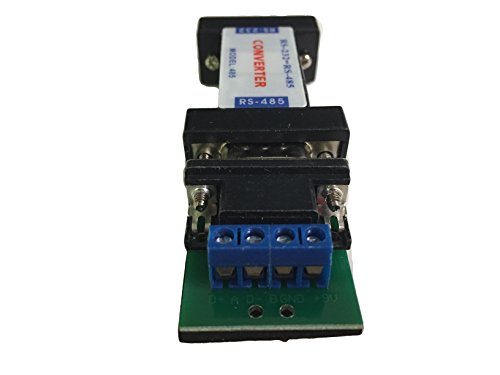

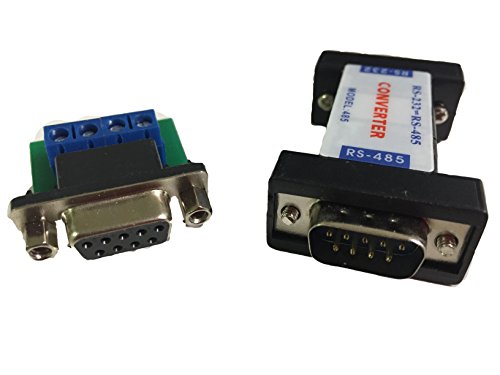

Title : AYA RS232 to RS485 Passive Interface Converter Adapter Data Communication
