Specification
AgeRangeDescription : adult
Brand : Generic
BulletPoint1 : 1. HR202 moisture sensor.
BulletPoint2 : 2. The comparator outputs a direct drive relay, which is connected with 220V ac or other equipment.
BulletPoint3 : 3. Equipped with potentiometer to adjust the temperature detection valve value
BulletPoint4 : 4. The sensor interface can be equipped with row needle and wet sensor with lead wire.
BulletPoint5 : 5. Shape and size of circuit board: 50x26mm, 19mm thick, with 4 3mm fixed bolt holes for easy installation
Color : One Color
ExternallyAssignedProductIdentifier : 7320501899327

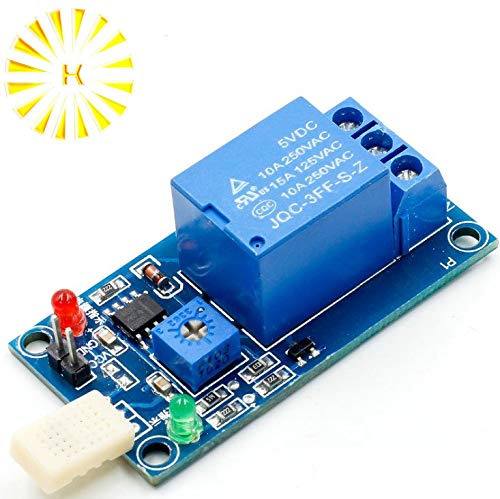

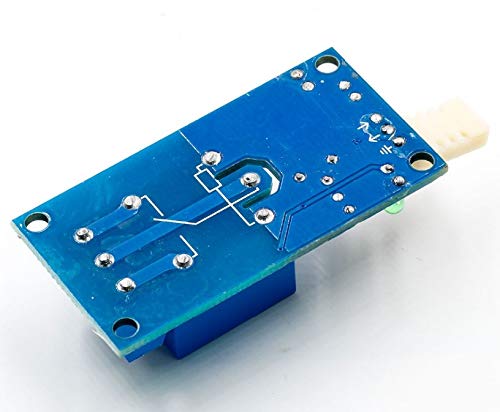

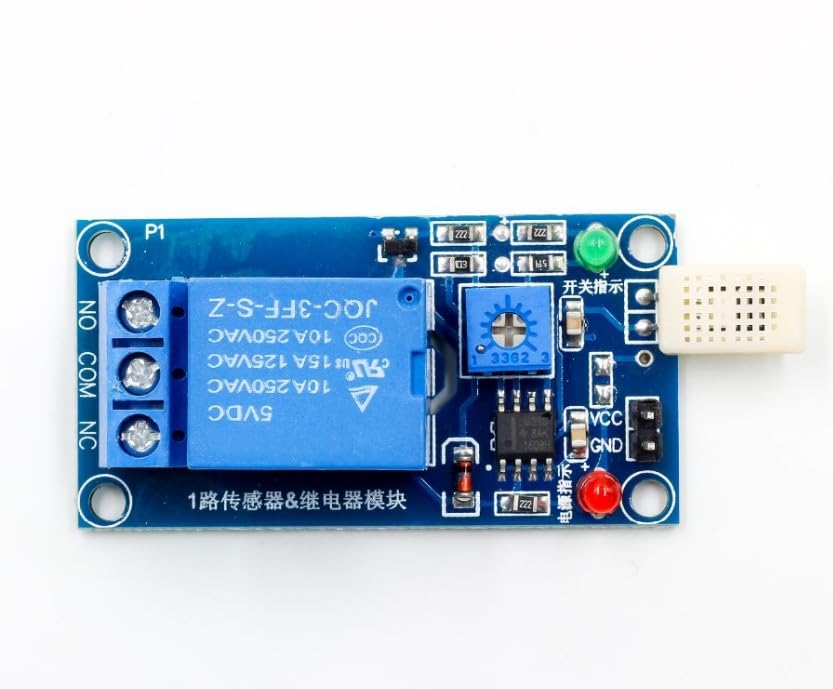

ItemName : Wiring Connecting Terminals - DC 5V 1-Channal 1CH Humidity Sensor Switch Relay Module Control Board Connector
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sensor-blocks
Manufacturer : CHIKIMIKI
ModelName : NHJLFKSA
ModelNumber : NHJLFKSA
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : CNCK5F7C598EDC3A34443B80D656AF1717F3
ProductDescription : Product Description
DC 5V 1-Channel Relay interface board.
Indication LED for output, can be directly output signal chip microcomputer control.
USES:
Humidity detection, humidity sensor, environmental humidity detection, with relay output, directly control the power supply of related equipment
Module Features:
1. HR202 moisture sensor.
2. The comparator outputs a direct drive relay, which is connected with 220V ac or other equipment.
3. Equipped with potentiometer to adjust the temperature detection valve value
4. The sensor interface can be equipped with row needle and wet sensor with lead wire.
5. Shape and size of circuit board: 50x26mm, 19mm thick, with 4 3mm fixed bolt holes for easy installation
Electrical parameters:
Power supply voltage: 5VDC
Current: greater than 150mA
Maximum load: 250V 10A ac or 30V 10A dc, less than this power can be used
Module instructions:
1. The humidity sensor is the most sensitive to the environmental humidity and is generally used to detect the ambient humidity.
In 2, modules, environment humidity more than set threshold, relay, absorption and often start through public end, and when the environment humidity is lower than the setting threshold, relay disconnect, public end with normally closed end connected.
3. The common end, normally open and normally closed three ports are equivalent to a double control switch. When the relay coil is energized, the common end and the normal start lead are connected. when there is no electricity, the common end and the normally closed end are connected.
ProductSiteLaunchDate : 2024-11-10T09:59:02.870Z
Size : One Size
UnitCount : 1
UnspscCode : 52140000
