Specification
Brand : Reland Sun
BulletPoint : Spot 1334 TCS34725 Color Sensor Color Sensor RGB Module Optical Sensor Development Tools RGB Color Sensor IR filter White LED
BulletPoint1 : ?Opto-isolator Control?3v 1 channel relay module supports photocoupler isolation control, has the output signal indicator,the signal input port can connect SCM IO port, high/Low level signal drive. Strong driving ability, stable performance.
BulletPoint2 : ?Dual Power Option Design? power relay module use double power selection design that has strong anti-interference ability and high photoelectric isolation protection reliability.
BulletPoint3 : ?Diode Continuous Flow Protection?Relay module with diode continuous flow protection, response time is less than 20 milliseconds,long life of relay can be absorbed 100,000 times continuously.
BulletPoint4 : ?30VDC 250VAC Load?Equiped with high-current relay, AC250V 10A ; DC30V 10A, each relay has normally open and normally closed contact. Can be selected by jumper relay and TTL or ground.
BulletPoint5 : ?Safer More Solid? The external connection adopts rotary compression terminal to make the connection stronger.
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 4701650302471
ExternallyAssignedProductIdentifier1 : 0756552854959
ExternallyAssignedProductIdentifier2 : 756552854959

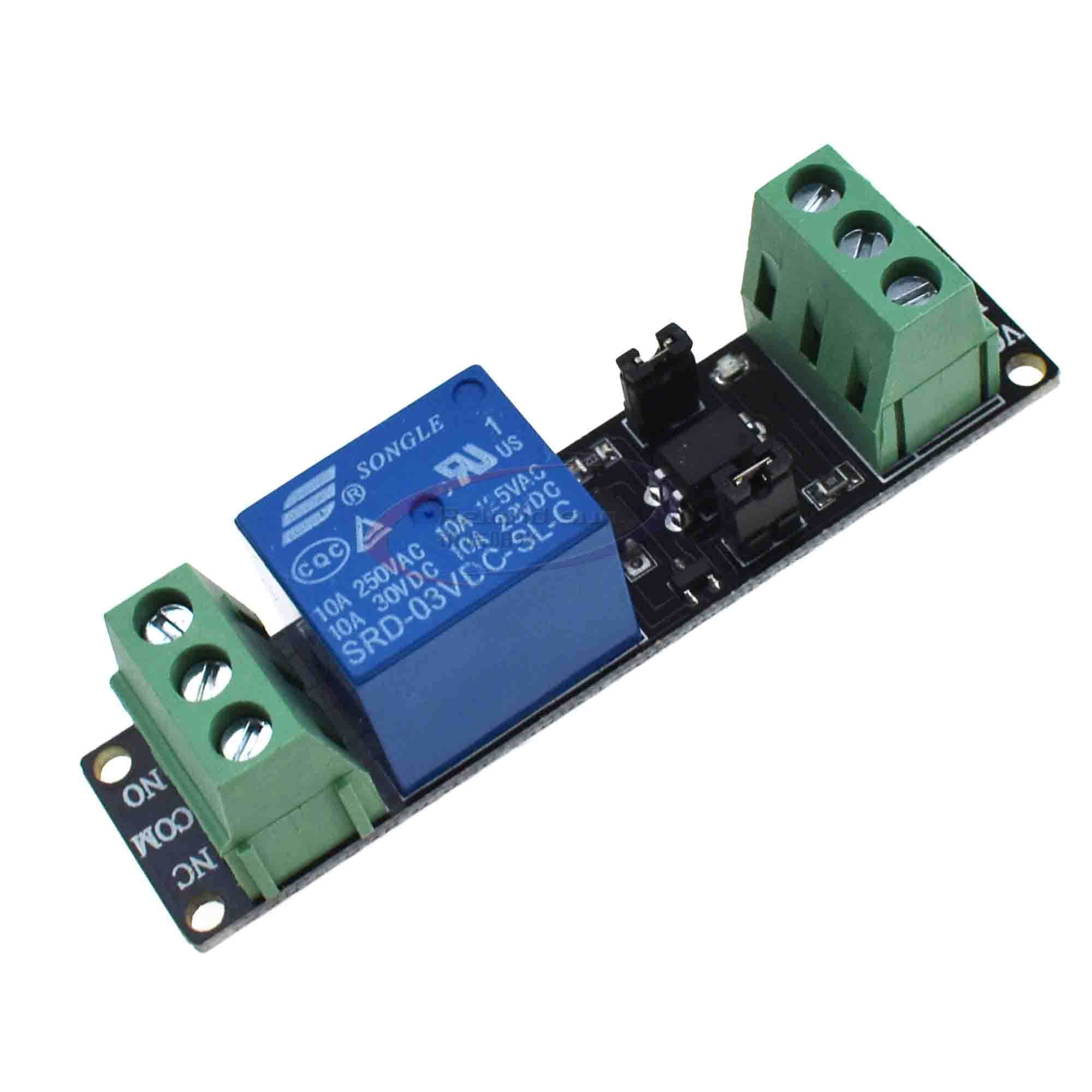

ItemName : Relay Module Board 1 Channel with Optocoupler Isolation Support High or Low Level Trigger (3V high)
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 6 inches
ItemPackageDimensions_Width : 4 inches
ItemPackageQuantity : 1
ItemTypeKeyword : sensor-blocks
Manufacturer : Reland Sun
Material : Copper
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 250 volts
MeasurementSystem : Metric
MountingType : Board Mount
NumberOfItems : 1
OperationMode : Automatic
PartNumber : SFH310FA
ProductDescription : Specifications:
Voltage: DC 3V
Working Current: 65mA
Trigger Current: 3mA
Load Current: 10A max
Single Socket Length: 7.5mm
Response Time: <20ms

Power Interface?
VCC(+): Connect to the positive pole
IN: High level control relay suction
GND(-): Connect to the negative pole

Load Interface:
NO: Normally open interface
COM: Relay common interface
NC: Normally closed interface

Feature:
The relay module has the output signal indicator light indication;
2. The signal input port can connect SCM IO port, high/Low level signal drive;
3. Dual power supply design with anti-interference ability
and high reliability of photoelectric isolation protection ;
4. With diode continuous flow protection;
5. Response time is less than 20 milliseconds;
6. Long life of relay can be absorbed 100,000 times continuously;
7. The external connection uses the Rotary crimping terminal, causes the wiring to be more solid;
8. With fixed installation hole, easy to install.
ProductSiteLaunchDate : 2022-03-31T09:36:53.211Z
Size : 3V high
SupplierDeclaredDgHzRegulation : unknown
UnspscCode : 43201500
