Specification
Brand : Generic

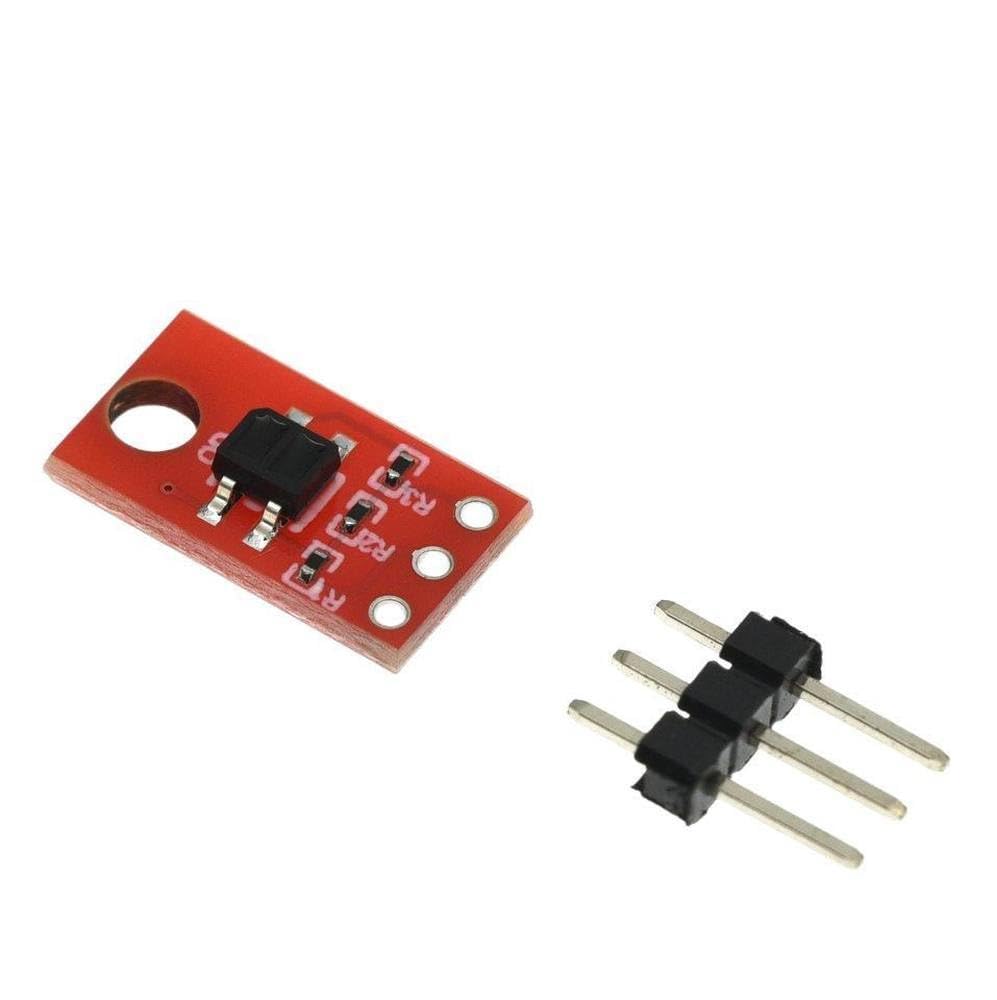

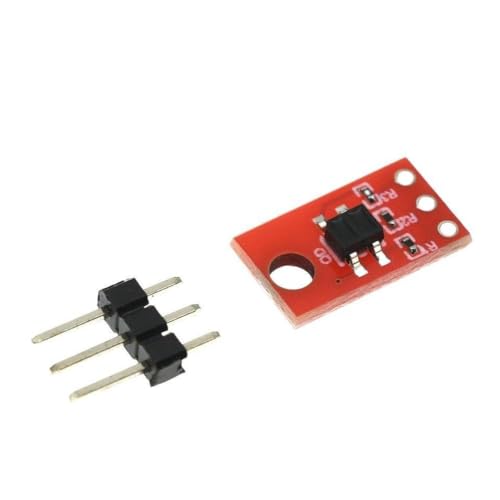

BulletPoint : QRE1113 IR LED Infrared Reflection Sensor Module Capacitor Discharge Circuit Breaker Board DC 3.3 -5V
BulletPoint1 : 【Durable】All-copper base, contacted better. Pure copper gold plated joints,resistance to plug.
BulletPoint2 : 【Reliable】Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that when in use won't causing dropped wires or poor contact.
BulletPoint3 : 【Thinner Design】The thickness is only 16mm, ensuring that the product can be used in a narrow space.
BulletPoint4 : 【Easy to Use】No Soldering Required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. The house adopts snap on design, can be opened and closed multiple times in case you want to reconfigure or re-use it.
BulletPoint5 : 【Wildly Applications】This db9 breakout board connect all kinds of serial devices. Such as automatic control equipment, industrial control equipment, cash register,computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
ConnectorType : D Sub
ExternallyAssignedProductIdentifier : 7864951705918
ItemName : QRE1113 IR LED Infrared Reflection Sensor Module Capacitor Discharge Circuit Breaker Board DC 3.3-5V
ItemPackageDimensions_Height : 21.59 centimeters
ItemPackageDimensions_Length : 2.54 centimeters
ItemPackageDimensions_Width : 13.462 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sensor-blocks
Manufacturer : Generic
Material : lead
Material1 : Acrylonitrile Butadiene Styrene (ABS)
Material2 : Copper
NumberOfItems : 4
NumberOfPositions : 9
PartNumber : Lile_HFN_2124
ProductDescription : Product
Descriptions:


This version of the QRE1113 branch board has a digital output that uses a capacitor discharge circuit to measure the amount of reflection. This compact board is ideal for line sensing when only digital l/O is available and can be used in 3.3V and 5V systems. The QRE1113 infrared reflectivity sensor consists of two parts - an LED that emits infrared and a phototransistor that is sensitive to infrared. When you power the VCC and GND pins, the IR LED inside the sensor lights up. A 100Q resistor is onboard and placed in series with the LED to limit current. The output of the phototransistor is connected to a 10nF capacitor. The faster the capacitor is discharged, the more reflective the surface is. These sensors are widely used in production-tracking robots. A white surface reflects more light than a black surface, so when pointed at a white surface, the capacitor discharges faster than when pointed at a black surface. Both the power input and output pins lead into a 3-pin, 0.1-inch pitch connector socket. If you want to screw it onto the board, the board also has a mounting hole.


Product parameters:

■ Working voltage :5vDC

■ Current :25mA

■ Compatible with digital I/O without ADC

■ Best sensing distance :0.125 inches (3 mm) Size :0.3x0.55 inches
ProductSiteLaunchDate : 2023-11-30T05:21:02.894Z
Style : Black Case DB9 Male
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
