Specification
Alarm : Visual
Brand : DKARDU
BulletPoint1 : Advantages: Comparator output, signal clean, good waveform, strong driving ability, more than 15mA
BulletPoint2 : Potentiometer: With adjustable preciseness potentiometer for sensitivity adjustment
BulletPoint3 : Detection angle: The detection angle is about 60 degrees, particularly sensitive to the flame spectrum
BulletPoint4 : Test distance: With the flame sensor to maintain a certain distance, so as not to damage the sensor temperature, the flame of a lighter test distance 80cm, for the greater flame, the farther the distance test
BulletPoint5 : Voltage and connection: The working voltage of 3.3V-5V; a small plate output interface can be directly connected to the microcontroller IO port

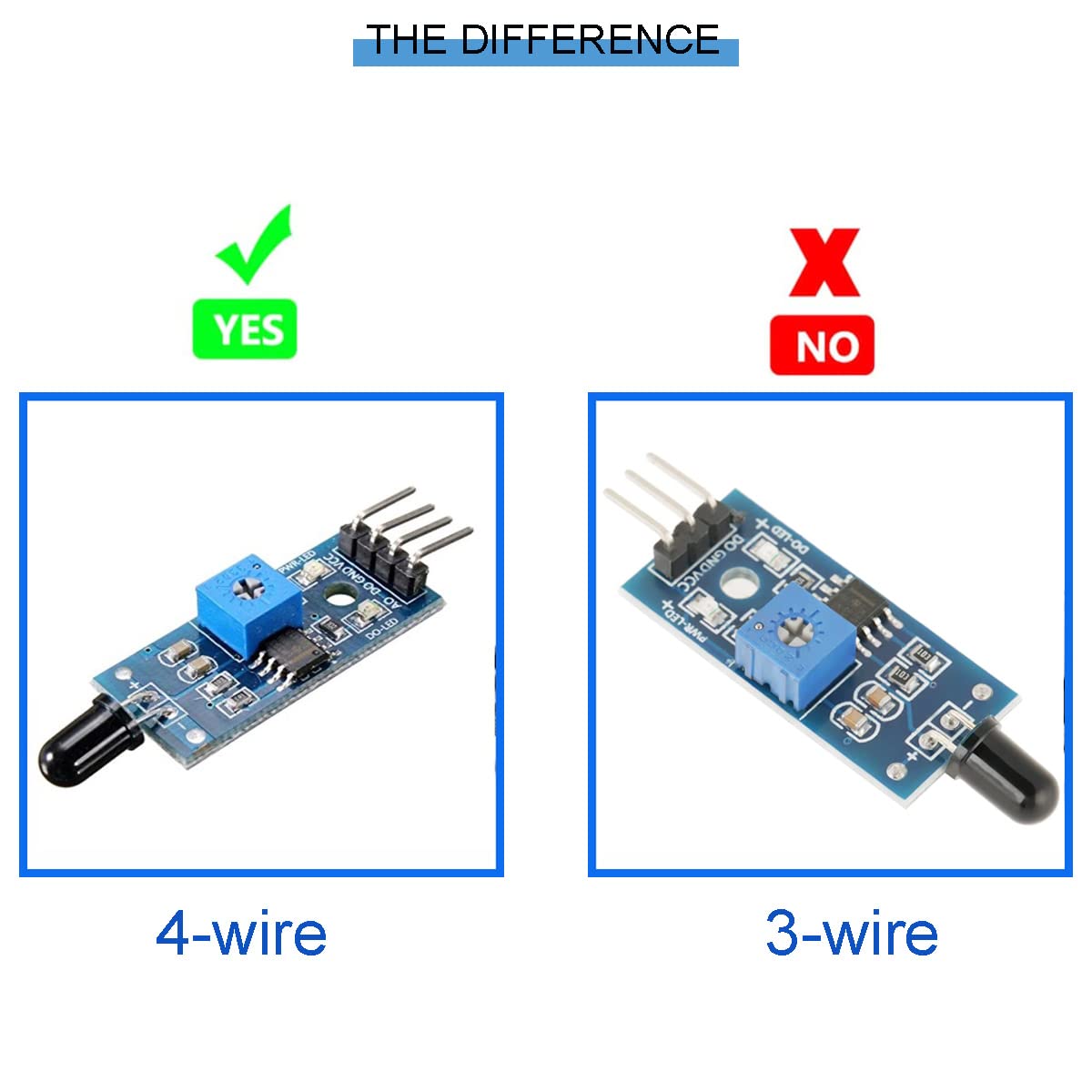

CircuitType : 4-way
Color : 4 Wire
ConnectivityProtocol : Infrared
ConnectivityTechnology : Infrared
ConnectorType : Pin
ControlMethod : touch
ExternallyAssignedProductIdentifier : 6431773212484
ExternallyAssignedProductIdentifier1 : 0738603054587
ExternallyAssignedProductIdentifier2 : 738603054587
IncludedComponents : Obstacle avoidance sensor module*10
InternationalProtectionRating : IP65

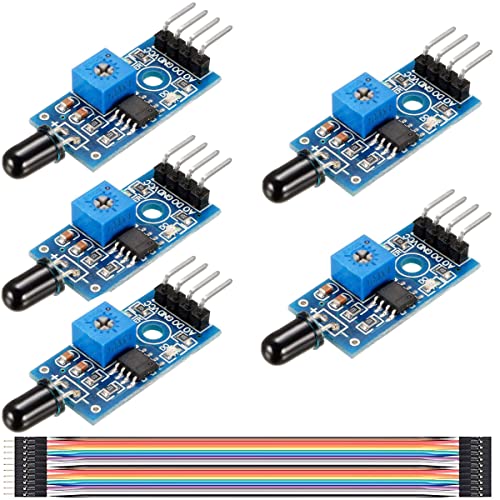

ItemName : DKARDU 5 pcs 3.3V-5V IR Infrared Flame Sensor Module 4 Pin Infrared Detection Module Detecting Distance 80cm with Dupont Cable for Arduino
ItemPackageDimensions_Height : 15.5956 centimeters
ItemPackageDimensions_Length : 2.3114 centimeters
ItemPackageDimensions_Width : 5.207 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sensor-blocks
Manufacturer : DKARDU
Material : Copper
MaximumSupplyVoltage : 5 volts
MeasuringRange : ±45 degrees
ModelNumber : JK-US-487A
MountingType : Surface Mount
NumberOfItems : 5
OperatingHumidity : 95 percent
OperatingVoltage : 5 volts
OperationMode : Hand
OutputType : Digital
PartNumber : JK-US-487A
PowerSourceType : PowerSource
ProductDescription : Product Description
Feature:
1. It can detect flame or light source with in the range of 760 nm to 1100 nm. The flame distance of the lighter is 80 cm. The larger the flame, the farther the test distance is.
2, the detection angle is about 60 degrees, which is particularly sensitive to the flame
3, the sensitivity is adjustable (blue digital potentiometer adjustment in the figure)
4, the comparator output, the signal is clean, the driving ability is strong, more than 15mA
5, with adjustable precision potentiometer to adjust sensitivity
6, working voltage 3.3V-5V
7, output form: digital switch output (0 and 1) and voltage output
8, with fixed bolt holes for easy installation
9, small board PCB size: 1.26inchx0.56inch/3.2cm x 1.4cm
10. Use a wide voltage LM393 comparator

Product wiring description:
VCC: 3.3-5V power supply "+"
GND: power supply "-"
DO: TTL switch signal output.
AO: analog signal output (voltage signal)

Module instructions:
1. The flame sensor is most sensitive to flame and is also active to ordinary light. It is generally used for flame alarms and other purposes.
2, the small board output interface can be directly connected to the port of the microcontroller
3. The sensor and the flame should be kept at a certain distance to avoid damage to the sensor at high temperature. The flame distance of the lighter is 80cm. The larger the flame, the farther the test distance is.
4, small board output mode can achieve higher precision

Package Includes:
5 x IR Infrared Flame Detection Sensor Module
1 x 20-pin Male and female DuPont cable
ProductSiteLaunchDate : 2022-05-31T07:29:10.929Z
Size : SW-520D (1pcs)
SpecificationMet : Vcc
SpecificUsesForProduct : High current applications
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Temperature Switch
TerminalType : Pin
UnitCount : 5
Voltage : 3.3 volts
WirelessCommStandard : infrared
