Specification
Brand : DiGiYes
BulletPoint1 : The VL53L0X time-of-flight range sensor is a next generation laser range module. The VL53LOX is a fully integrated sensor with embedded infrared, human eye safe laser, advanced filters and ultra high speed photon detection arrays for longer range, speed and accuracy.
BulletPoint2 : The VL53LOX ToF laser ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectance unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications.
BulletPoint3 : The VL53LOX integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds second generation flight sense patented technology.
BulletPoint4 : The VL53LOX's 940nm VCSEL emitter (Vertical Cavity Surface Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distance, higher immunity to ambient light and better robustness to cover glass optical cross-talk.
BulletPoint5 : The sensing capability of the VL53LOX can support a wide range of functions including gesture or proximity detection for a variety of innovative user interfaces, obstacle detection and collision avoidance systems for floor sweepers and service robots, user presence detection or power on/off monitors for home appliances and laptops, as well as drones and Internet of Things (IoT) products.
ConnectivityTechnology : I2C
ConnectorType : Quick Connect
ControllerType : Push Button
ControlMethod : application
ExternallyAssignedProductIdentifier1 : 0701715530317
ExternallyAssignedProductIdentifier2 : 701715530317
IncludedComponents : 6 Row Pin

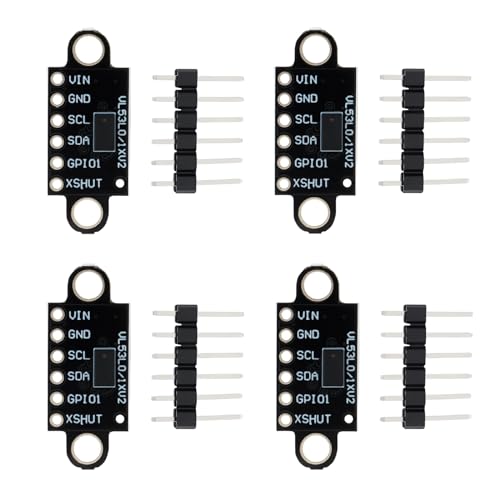

ItemName : DiGiYes 4Pcs VL53L0X Time-of-Flight (ToF) 940nm Laser Ranging Sensor Breakout GY-VL53L0XV2 Distance Measurement Module Fit for Arduino
ItemPackageDimensions_Height : 0.78 inches
ItemPackageDimensions_Length : 1.57 inches
ItemPackageDimensions_Width : 1.18 inches
ItemPackageQuantity : 1
ItemShape : Elongated Octagonal
ItemTypeKeyword : sensor-blocks
Manufacturer : DiGiYes
Material : lead
MeasurementAccuracy : 0.3%
ModelNumber : VL53L0X V2
MountingType : Surface Mount
NumberOfBoxes : 1
NumberOfContacts : 4
NumberOfItems : 4
NumberOfLevels : 2
OperatingVoltage : 2.6 volts
PartNumber : VL53L0X
ProductDescription : Parameter Information:
Sensor Type: Ranging Sensor
Output Mode: I2C IIC
Working Voltage: 2.6-5.5V
Communication Interface: I2C
Sensoring Distance: 2m(Max)
Emitter: 940nm Laser VCSEL
Accuracy: +/- 3 percent in the best range, over +/- 10 percent in less optimal conditions.
PIN Description:
- VDD: Regulated 2.8 V output. Almost 150mA is available to power external components (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.).
- VIN: This is the main 2.6V to 5.5V power supply connection. The SCL and SDA level shifters pull the I2C lines high to this level.
- GND: The ground (0V) connection for your power supply. Your I2C control source must also share a common ground with this board.
- SDA: Level shifted IIC data line: High is VIN, low is 0V.
- SCL: Level shifted IIC clock line: High is VIN, low is 0 V.
- XSHUT: This pin is an low active shutdown input, the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level shifted.
- GPIO1: Digital output. Interrupt output, open drain output.
Place of Application:
- Widely used in smart robots, drones and IoT market, sweeping robots, bathroom products, laptops and other products for gesture sensing or proximity detection, wall detection, cliff detection, collision detection, door presence detection or power switch monitoring.
Package Include:

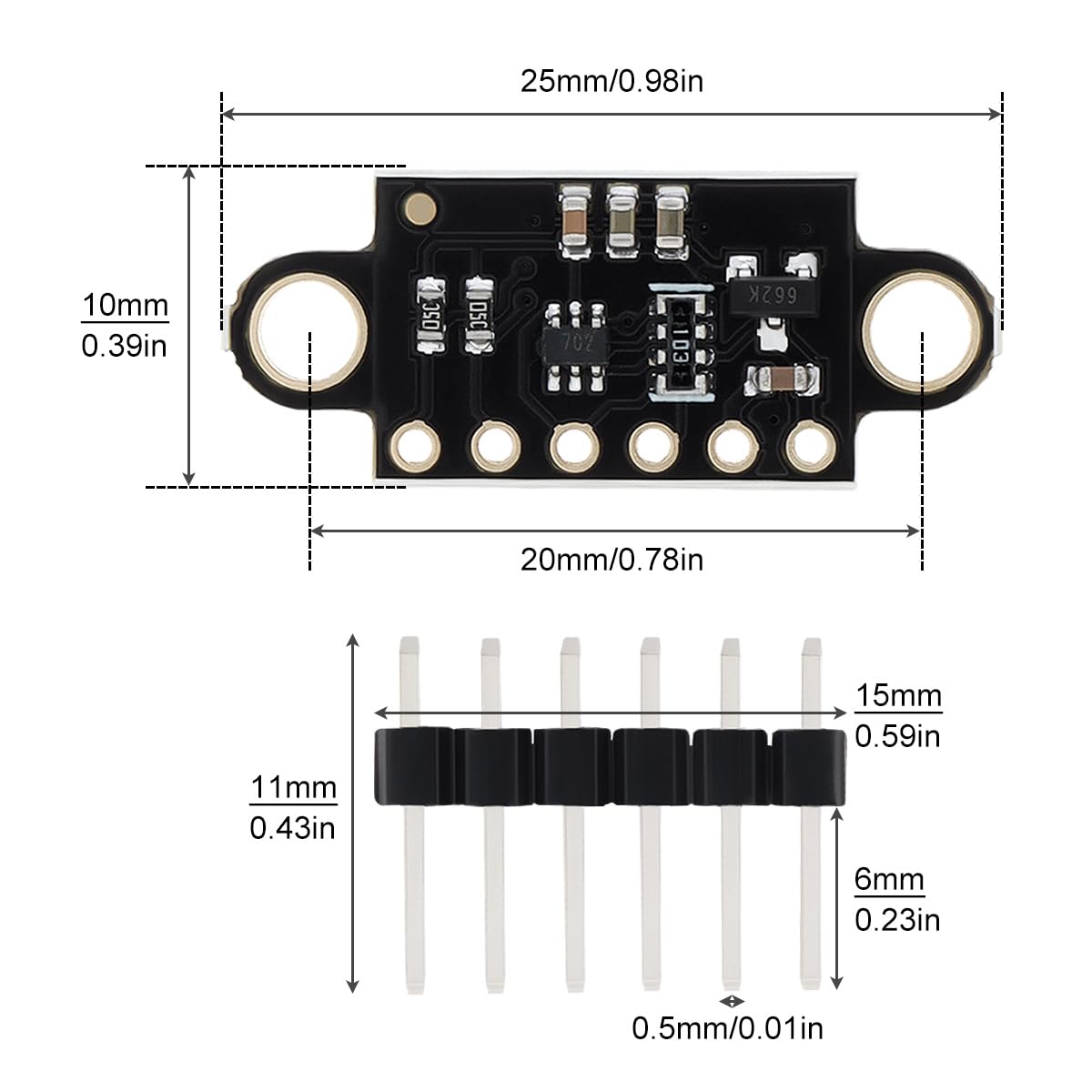

1 x VL53L0X Ranging Sensor Module
1 x 6 Row Pin

ProductSiteLaunchDate : 2023-12-20T07:11:17.181Z
Style : Magnet,Magnetic
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
Voltage : 5.5 volts
WarrantyDescription : No warranty
