Specification
Brand : Jopwkuin
BulletPoint1 : Characteristic: Simple digital control and serial interface, pin driven control, no programming required, selectable 10SPS or 80SPS output data rate, easy to use.
BulletPoint2 : Solid Construction: Fast weighing rugged aluminum alloy construction with reserved strain gauges and equipped with strain lines to accurately measure forces of 0‑5 kg (0‑11 lbs).
BulletPoint3 : Exquisite Manufacturing: Exquisite and careful workmanship, strictly follows the factory quality control, high performance, strong reliability, making sure safety use.
BulletPoint4 : Hx711 AD Module: The module adopts 24 high accuracy AD conversion chips hx711, and is specially designed for electronic scales with an internal integrated 128 times programmable gain amplifier with two analog input channels.
BulletPoint5 : Working Voltage and Current: The working voltage of the weighing pressure sensor set is 3.3V‑5V, 5V is recommended, and the working current is 1.5mA, safe and reliable to use.

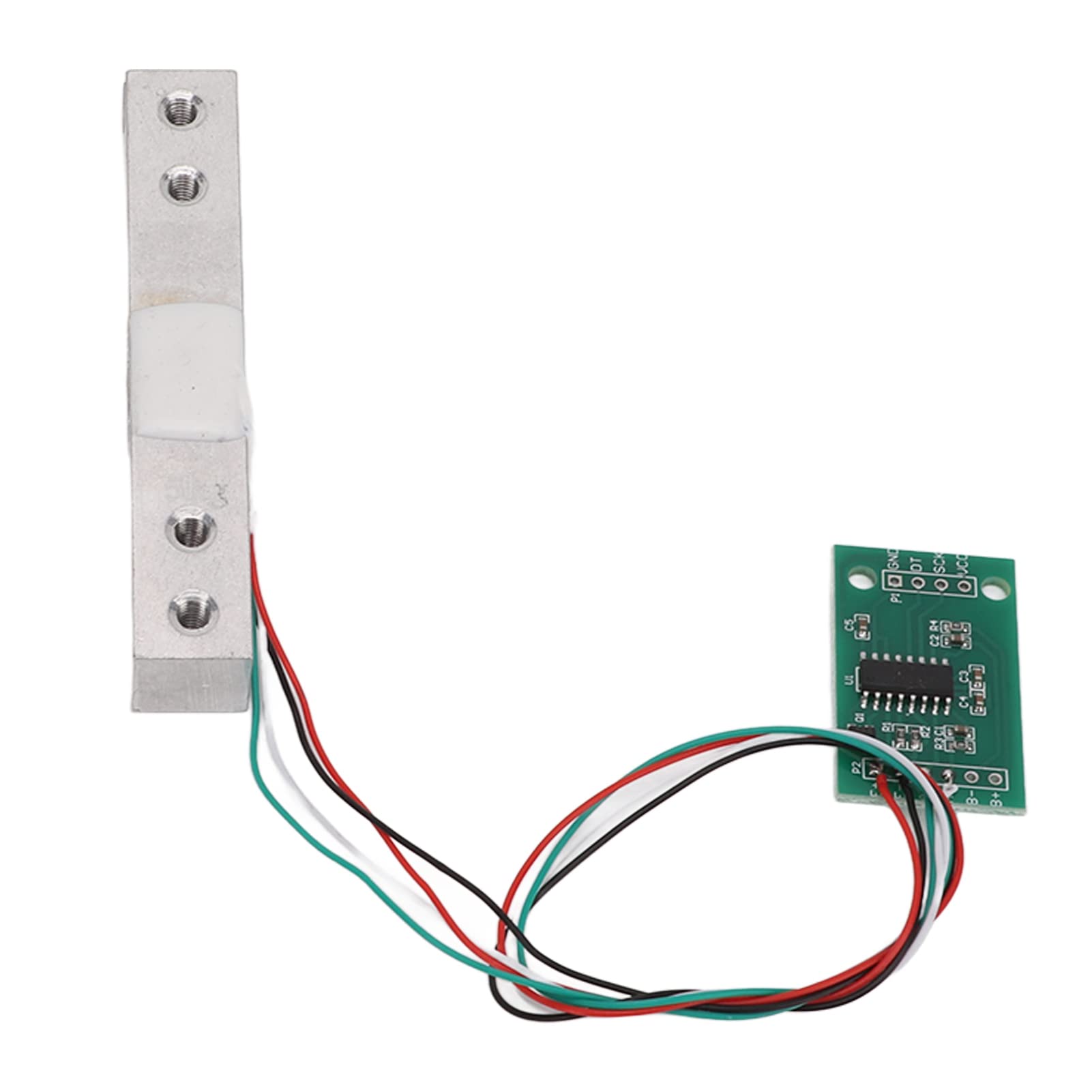

ItemName : Digital Load Cell Weight Sensor, HX711 AD Converter Module 5kg PCB Acrylic Aluminium Alloy High Accuracy Sturdy 3.3V‑5V for Scale
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemTypeKeyword : sensor-blocks
Manufacturer : Jopwkuin
ModelNumber : Jopwkuiniduwh3zfge
NumberOfItems : 1
PartNumber : Jopwkuiniduwh3zfge
ProductDescription : 1. Hx711 AD Module: The module adopts 24 high accuracy AD conversion chips hx711, and is specially designed for electronic scales with an internal integrated 128 times programmable gain amplifier with two analog input channels.
2. Solid Construction: Fast weighing rugged aluminum alloy construction with reserved strain gauges and equipped with strain lines to accurately measure forces of 0‑5 kg (0‑11 lbs).
3. Characteristic: Simple digital control and serial interface, pin driven control, no programming required, selectable 10SPS or 80SPS output data rate, easy to use.
4. Working Voltage and Current: The working voltage of the weighing pressure sensor set is 3.3V‑5V, 5V is recommended, and the working current is 1.5mA, safe and reliable to use.
5. Exquisite Manufacturing: Exquisite and careful workmanship, strictly follows the factory quality control, high performance, strong reliability, making sure safety use.

Specification:
Item Type: Digital Load Cell Weight Sensor
Material: PCB, acrylic, aluminum alloy
Bracket Diameter: Approx. 10cm/3.94in (Tray Diameter)
Working Voltage: 3.3V-5V (Recommended 5V)
Maximum Measuring Force: 5Kg
Height: Approx. 3.5cm/1.38in (Including Pillars)
AD Module: HX711 (24-Bit High Precise A D Conversion Chip Hx711)
Accuracy After Calibration: Within 1g
Working Current: 1.5mA

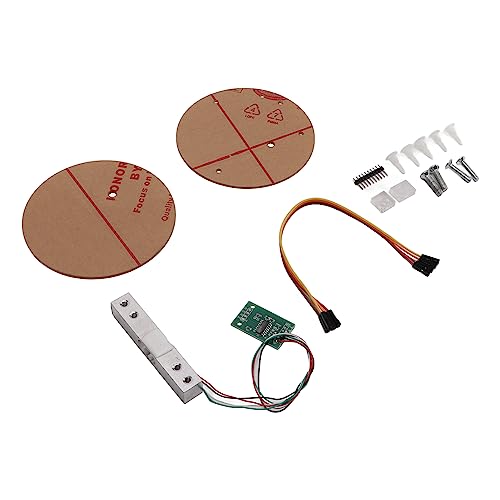

packing list:
1 x Module
1 x Pin Header
2 x Acrylic Board
1 x Cable
5 x Guide Post
2 x Spacer
4 x Screw

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
