Specification
AgeRangeDescription : adult
Brand : ATO.COM
BulletPoint1 : Wide Capacity Range: ATO Micro load cell available in 5kg, 10kg, 20kg, 50kg, 100kg, 300kg, and up to 1000kg capacity, meeting various measurement needs
BulletPoint2 : Compact and Durable Design: Button-type structure with a 20mm diameter and 9mm height, made of stainless steel for enhanced durability and precise force monitoring
BulletPoint3 : High Accuracy: Built with strain gauge technology, the sensor offers accuracy up to 0.3% F.S. for reliable weight and force measurement
BulletPoint4 : Flexible Output Options: Supports 0-5V, 0-10V, 4-20mA, or RS485 signal outputs for seamless integration with PLC, DCS, and other control systems
BulletPoint5 : Compatible Accessories: Pair with an ATO digital panel meter for direct readings or a transmitter for standardized output to automation systems
Color : One Color
ExternallyAssignedProductIdentifier : 3002980919089
IncludedComponents : 1*Micro Load Cell
ItemName : ATO Micro Load Cell 5kg~1000kg, Button Type, Weighing Mini Load Cell Sensor 100kg/200kg/500kg Strain Gauge Scale Sensor Micro Load Cell Accuracy 0.3% F.S (50kg)
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sensor-blocks
Manufacturer : ATO
Material : Stainless Steel
ModelName : Eacamk4gxb7aqnp
ModelNumber : LCBU-DYHW-120
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : LC-BU04
ProductDescription :

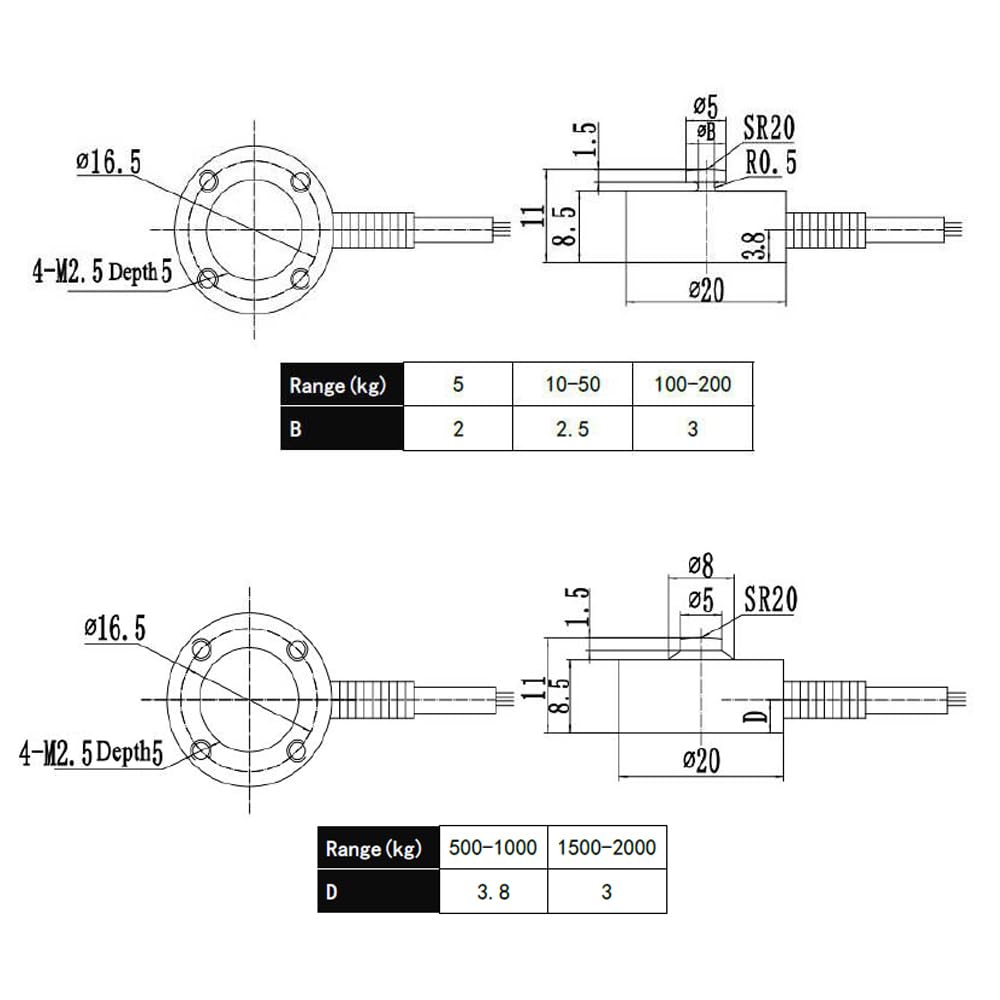

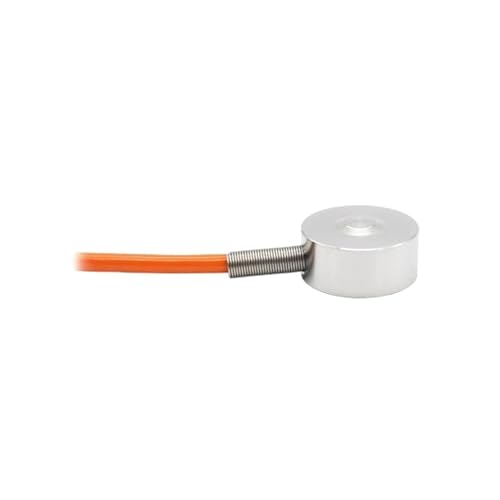

ATO Micro Load Cell offers a versatile capacity range from 5kg to 1000kg, making it suitable for various measurement needs. This button-type load cell features a compact design with a 20mm diameter, 9mm height, and a durable Φ3*2m cable. Ideal for applications like laminators, riveters, force testers, and other automated equipment requiring precise force monitoring.

ATO Micro Load Cell Specification:

Model:ATO-LCBU-DYHW-120

Shipping weight: 1.5kg

Capacity range :*5~1000kg

Matched Display Controller:ATO-DDC5-CHB

Accuracy:0.3%F.S (linearity + hysteresis + repeatability)

Sensitivity:2.0±10%mV/V (Low range variations may differ)

Creep: ±0.03%F.S/30min

Zero output:±2%F.S

Temperature effect on zero:±0.1%F.S/10℃

Temperature effect on output:±0.1%F.S/10℃

Operating temperature:-20℃~+80℃

Input impedance:1000Ω

Output impedance:1000Ω

Insulation resistance:≥5000MΩ

Safety overload:150%F.S

Bridge voltage (excitation voltage):DC 5-10V

Material: Stainless steel

Protection class: IP66

Cable length: 2m

Wiring: EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

ProductSiteLaunchDate : 2024-11-13T09:39:11.788Z
Size : 50kg
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 46171600
