Specification
Brand : MuchoWow
BulletPoint : 2 Relay Output Module Modbus RTU RS485 or RS232 Remote Data Acquisition
BulletPoint1 : SUPER MATERIAL: Made of high quality use electrical element and semiconductor components. High structural strength, impact resistance, strong shock resistance, small driving current at the input end can easily interface with computer terminals and various digital programmed circuits. Beautiful and generous, excellent electrical conductivity, safe and reliable, long mechanical life.
BulletPoint2 : ACKAGE INCUDIGN: Include 1pcs Light Automatic Control Module, Light threshold can be adjusted by potentiometer to set the relay start.
BulletPoint3 : CONVENIENT TOOL: The shell of relays is made of ABS flame retardant plastic material, wear resistant, high temperature resistant, dustproof and oil resistant. The internal structure adopts a high-efficiency spring structure and has a high life. High mechanical strength, reliable and stable.
BulletPoint4 : Main Parameter: The module Operating voltage: 12V.Output type: Output switch. Control capacity: maximum 10A. Detection frequency: 1MHZ. Load capacity: 10A / AC 250V or DC up to 30V.
BulletPoint5 : A WIDE RANGE OF APPLICATION: Widely used in Industrial automation, electric furnace heating, stage lighting control, photocopiers, medical equipment, petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, entertainment facilities and other automation control areas.and so on. etc.
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 7421456617704
ExternallyAssignedProductIdentifier1 : 0756552846039
ExternallyAssignedProductIdentifier2 : 756552846039

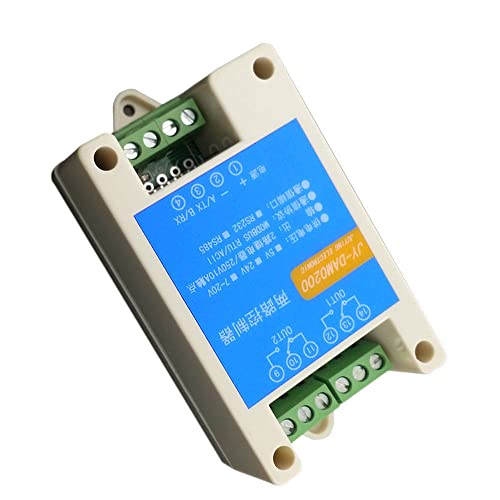

ItemName : 2 Relay Output Module Modbus RTU RS485 or RS232 Remote Data Acquisition
ItemTypeKeyword : sensor-blocks
Manufacturer : ElectricalZoo
Material : Plastic
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 24 volts
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
OperationMode : Automatic
PartNumber : EZautomjh_1254
ProductDescription :
Features:
The product has 2 relay outputs, 10A/30VDC, 10A/250VAC power supply can be three kinds of 5V / 7-20V / 24V;(Please select) The packaeg comes without power adapter.
communication interface supports RS485 or RS232;(Please select)
Communication baud rate support: 2400,4800,9600,19200,38400 (the default is 9600, can be modified); communication protocol for the standard modbus protocol, support to send Modbus rtu / Ascii control instructions; products can be set 0-255 device address, the default device address is 0, the use of broadcast address 254; products with a jog function (that is, flash on, flash off), can be sent through the instruction set, jog time custom; has a strobe function, you can control the relay periodic switch.

1, the relay output wiringRelay output for SPDT, with normally open, normally closed contact.
2, communication interface descriptionRS232 interface
232 communication in the 5-pin GND and the negative sharing of power supply.
485 interface
485 wiring for the A +, B-, 485 bus can cascade multiple devices (requires a device address from the beginning, each device address can not be the same), The device has a red DIP switch, Can be set by DIP switch device Address, the device can also be changed by software address.
1, configuration software (chinese only)
It can connect multiple devices at the same time. If you cascade multiple devices on 485 bus, you can view the working status of the device in real time. You can use this software to set up the device to start and shut down regularly, which can be used for historical operation and historical data export.

2, DAM debugging software (chinese/english)
Support for testing and controlling the use of a single device to support the modification of the device communication baud rate, device address and mode of operation.
The following control instructions are provided:
1, a single channel control instructions and instructions
ProductSiteLaunchDate : 2021-12-12T15:10:39.612Z
Size : 24V
UnspscCode : 39122300
