Specification
Brand : ATO.COM
BulletPoint1 : Rated Voltage:440V;frequency 50Hz; Rated Thermal Current: 20A/25A/32A/63A/125A//160A(Optional)
BulletPoint2 : Pole:4 Pole; Position:2 Position; Ambient Temperature:-25℃-40℃ Control Method: Manual
BulletPoint3 : Flexible operation, compact structure, safety and reliability, with high temperature resistance, rotating design and long service life.
BulletPoint4 : Application: ATO rotary cam switch can be used as a circuit control switch, a test equipment switch, a motor control switch and a master control switch, and a transfer switch for an electric welder, etc.
BulletPoint5 : If you are not sure about the size or have any issue about the product or service, please don't hesitate to email us. We will answer you within 12h
CircuitType : 2-way
ConnectivityProtocol : X-10
ControlMethod : application
CurrentRating : 63 amps
ExternallyAssignedProductIdentifier1 : 0783902771994
ExternallyAssignedProductIdentifier2 : 783902771994
InternationalProtectionRating : IP54

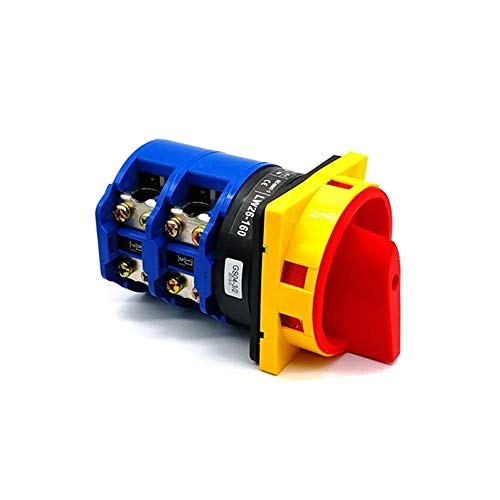

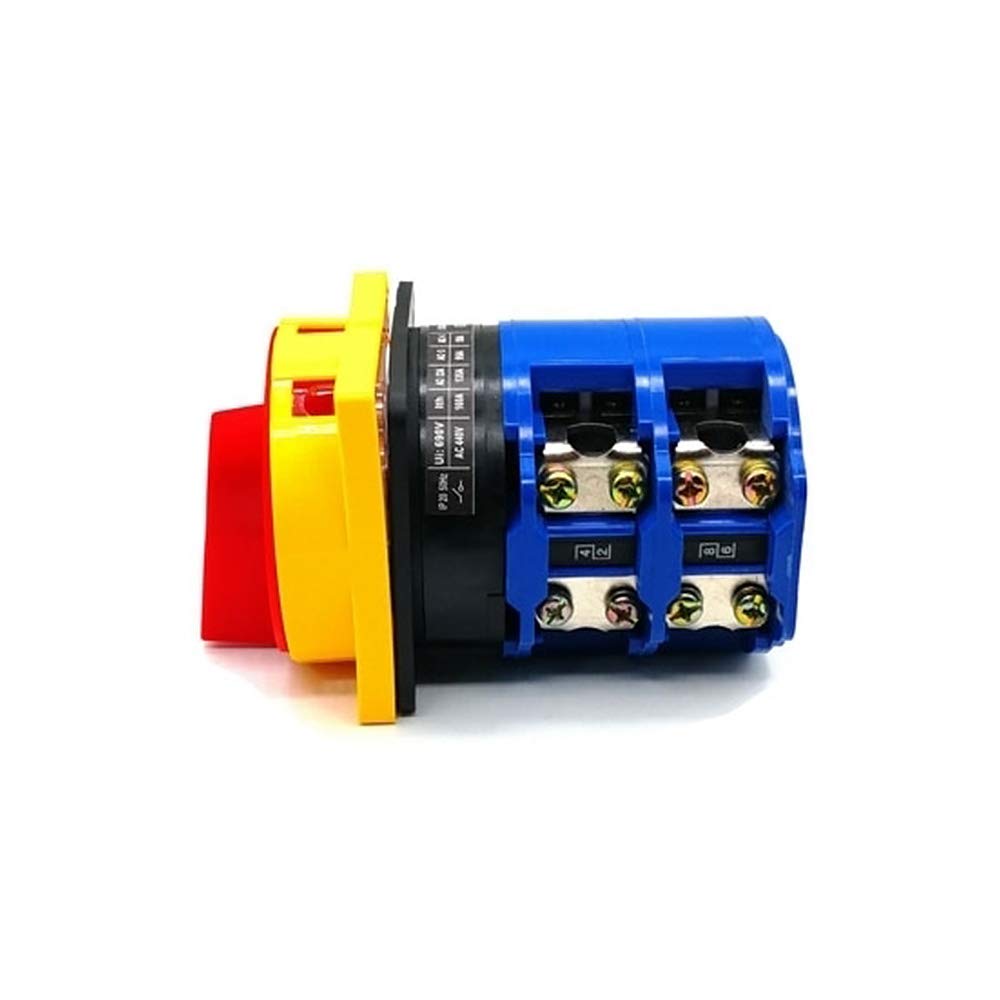

ItemName : ATO 63A Rotary Switch, 4 Pole, 2 Position Universal Rotary Cam Switch, Safe and Reliable Changeover Switch (63A)
ItemTypeKeyword : electronic-component-selector-switches
Manufacturer : ATO
Material : Metal
MountingType : Pole
NumberOfItems : 1
NumberOfPositions : 2
OperatingVoltage : 440 volts
OperationMode : Rotary Switch
ProductDescription :

ATO Rotary cam switch 2 position, 4 pole, 63A, it is suitable for standard low voltage control/load switching and ultra low voltage and electronic applications.

Specification:

Model ATO-LW26GS63

Rated Voltage 440V

Rated Thermal Current 63A

Rated Working Current:

AC-21 63A

AC-22 63A

AC-23 57A

Pole 4 Pole

Position 2 Position

Rated Power 30 kW

Escutcheon Plate M2

Ambient Temperature -25℃-40℃

Altitude ≤2000m

Humidity ≤50%

Conditions of Use

1. The ambient air temperature does not exceed +40 ° C, and the average temperature within 24 hours does not exceed 35 ° C.

2. The lower limit of ambient air temperature does not exceed -5 °C.

3. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%. When the temperature is low, high relative humidity can be allowed, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs with temperature changes.

4. The surrounding environment should be clean, free of flammable and flammable hazardous materials, no gas sufficient to damage insulation and metal, no conductive dust.

ProductSiteLaunchDate : 2020-07-21T23:32:27.196Z
Size : 63A
SwitchType1 : Limit Switch
SwitchType2 : Temperature Switch
UnitCount : 1
UnspscCode : 39122200
UpperTemperatureRating : 40 degrees_celsius
Wattage : 30000 watts
