Product Information
Editorial Review

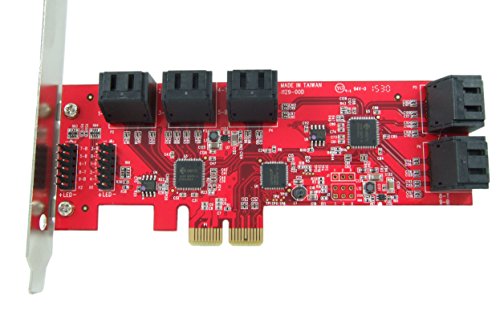

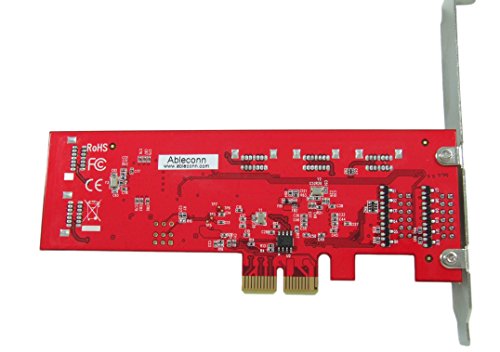

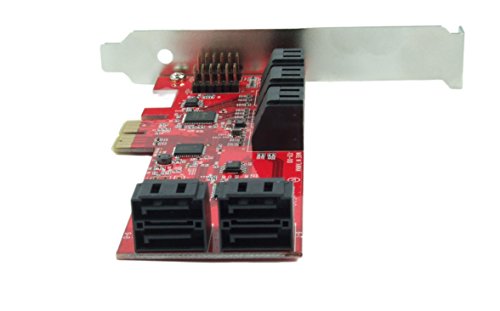

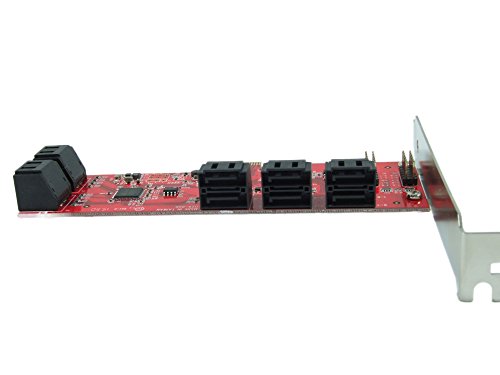

The Ableconn PEX10-SAT adds 10 SATA 6G ports through a Low Profile PCIe 2.0 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required. Specification * Connector: - 10 x SATA (7-pin, DATA) Female * Chipset: ASMedia ASM1062 + 2x JMicron JMB575 * Data transfer rate: - Up to 6 GBps * Software: - No driver installation required. The AHCI drivers are natively built-in on most Operating Systems - Support Windows 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later. * 6Gbps SATA III Internal 10 Ports PCIe Gen2 2-lane Host Adapter * Supports PCIe 1.0 and PCIe 2.0 motherboard * Compliant with 10Gbps x2 PCI Express 2.0 * Fully compliant with Serial ATA specifications 3.0 * Pin headers on board for activity indication on each channel * Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps * Supports ATA and ATAPI commands * Supports SATA Hotplug, and Native Command Queuing (NCQ) * Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive * Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included *Note: does NOT support SATA Port Multiplier * BIOS on board supports Windows and Linux OS booting * Fully RoHS compliant * Made in Taiwan Note: the product is not positioned for performance storage such as solid state drives. It's ideal for applications that need a lot of drives, or a huge capacity such as surveillance system, etc. Package Contents * Ableconn PEX10-SAT 10-Port SATA 6G PCIe Card * 1x low profile PCIe bracket
Features
1) Adds 10 SATA 6G ports through a Low Profile PCIe 2.0 x2 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required. It is not positioned for performance storage such as multiple SSD drives.

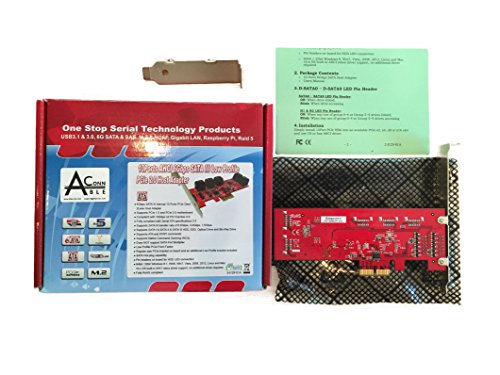

2) PCIe 2.0 x2 Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included. Compliant with PCI Express v2.0 and backward compatible with PCI Express 1.x
3) Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive. Support Native Command Queuing (NCQ), Hot plug and Hot swap SATA ports
4) No driver installation is required. The AHCI drivers are natively built-in on Windows 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
5) Fully RoHS compliant. High quality product. Made in Taiwan.
Specification
Binding : Electronics
Brand : Ableconn
Label : Ableconn
Manufacturer : Ableconn
Model : PEX10-SAT
PackageDimensions_Weight : 0.25 pounds
PackageDimensions : L:6.90 X W:5.70 X H:1.40
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : Ableconn
Studio : Ableconn
Title : Ableconn PEX10-SAT 10 Port SATA 6G PCI Express Host Adapter Card - AHCI 6 Gbps SATA III Low Profile PCIe 2.0 Expansion Card
The Ableconn PEX10-SAT adds 10 SATA 6G ports through a Low Profile PCIe 2.0 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required. Specification * Connector: - 10 x SATA (7-pin, DATA) Female * Chipset: ASMedia ASM1062 + 2x JMicron JMB575 * Data transfer rate: - Up to 6 GBps * Software: - No driver installation required. The AHCI drivers are natively built-in on most Operating Systems - Support Windows 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later. * 6Gbps SATA III Internal 10 Ports PCIe Gen2 2-lane Host Adapter * Supports PCIe 1.0 and PCIe 2.0 motherboard * Compliant with 10Gbps x2 PCI Express 2.0 * Fully compliant with Serial ATA specifications 3.0 * Pin headers on board for activity indication on each channel * Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps * Supports ATA and ATAPI commands * Supports SATA Hotplug, and Native Command Queuing (NCQ) * Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive * Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included *Note: does NOT support SATA Port Multiplier * BIOS on board supports Windows and Linux OS booting * Fully RoHS compliant * Made in Taiwan Note: the product is not positioned for performance storage such as solid state drives. It's ideal for applications that need a lot of drives, or a huge capacity such as surveillance system, etc. Package Contents * Ableconn PEX10-SAT 10-Port SATA 6G PCIe Card * 1x low profile PCIe bracket
Features
1) Adds 10 SATA 6G ports through a Low Profile PCIe 2.0 x2 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required. It is not positioned for performance storage such as multiple SSD drives.
2) PCIe 2.0 x2 Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included. Compliant with PCI Express v2.0 and backward compatible with PCI Express 1.x
3) Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive. Support Native Command Queuing (NCQ), Hot plug and Hot swap SATA ports
4) No driver installation is required. The AHCI drivers are natively built-in on Windows 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
5) Fully RoHS compliant. High quality product. Made in Taiwan.
Specification
Binding : Electronics
Brand : Ableconn
Label : Ableconn
Manufacturer : Ableconn
Model : PEX10-SAT
PackageDimensions_Weight : 0.25 pounds
PackageDimensions : L:6.90 X W:5.70 X H:1.40
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : Ableconn
Studio : Ableconn
Title : Ableconn PEX10-SAT 10 Port SATA 6G PCI Express Host Adapter Card - AHCI 6 Gbps SATA III Low Profile PCIe 2.0 Expansion Card
