Specification
Brand : MECCANIXITY
BulletPoint1 : Digital load cell weight sensor is made of aluminum alloy with parallel beam structure, it is suitable for electronic kitchen scales, small appliance force measurement, and intelligent electronic weighing equipment.
BulletPoint2 : Load Cell maximum measures force: 20kg (44 lb) ; Rated Output Sensitivity: 1.0+/-0.1 mV/V ; Accuracy: 2g ; Output impedance:1000±50 ohm ; Size: 80x12.7x12.7mm/3.15 x 0.5 x 0.5 inch.
BulletPoint3 : The load cell converts applied force into an electrical signal, applying a 5-10V drive voltage, the force is directly output as a voltage change signal. This electronic sensor is good for projects that require precise weight measurement, such as making a custom kitchen scale or other portable weighing device.
BulletPoint4 : Electronic sensor contains 4 leads for easy use,The weighing sensor needs to be connected to the HX711 module, red to E+, black to E-, green to A+, and white to A-
BulletPoint5 : One end of the sensor is fixed through the screw hole, and the other end is kept suspended. Apply gravity in the direction indicated by the label. Pay special attention not to press the white rubber part directly to avoid damaging the sensor.

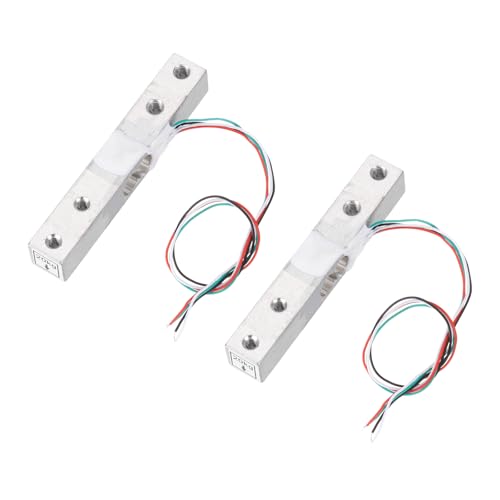

ItemName : MECCANIXITY 2PCS Digital Load Cell Weight Sensor 20KG Pressure Load Cell Weighting Sensor High Precision Miniature for DIY Portable Electronic Kitchen Scale Kit
ItemPackageDimensions_Height : 0.59 inches
ItemPackageDimensions_Length : 3.54 inches
ItemPackageDimensions_Width : 2.36 inches
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-scale-and-balance-parts
Manufacturer : MECCANIXITY
Material : Aluminum
NumberOfBoxes : 1
PartNumber : mea240623ee000133
ProductDescription : What is this?
Digital load cell weight sensor is made of aluminum alloy with parallel beam structure, it is suitable for electronic kitchen scales, small appliance force measurement, and intelligent electronic weighing equipment.

What will I get?
Load Cell maximum measures force: 20kg (44 lb)
Rated Output Sensitivity: 1.0+/-0.1 mV/V
Zero output: ±0.1mV/V
Nonlinear: 0.05%F.S
Lag: 0.05%F.S
Repeatability: 0.05%F.S
Creep(5Min):0.05%F.S/3min
Output impedance:1000±50 ohm
Temperature Effect On Sensitivity: 0.05%F.S/°C
Temperature Effect On Zero: 0.05%F.S/°C
Accuracy: 2g
Size: 80x12.7x12.7mm/3.15 x 0.5 x 0.5 inch
Connection:Red to E+ / Black to E- / Green to A+ / White to A-
Package contains: 2pcs x load cell weight sensor.

Are there any advantages of the product?
The load cell converts applied force into an electrical signal, applying a 5-10V drive voltage, the force is directly output as a voltage change signal. This electronic sensor is good for projects that require precise weight measurement, such as making a custom kitchen scale or other portable weighing device.

How to use it?
Electronic sensor contains 4 leads for easy use,The weighing sensor needs to be connected to the HX711 module, red to E+, black to E-, green to A+, and white to A-

What should I notice?
One end of the sensor is fixed through the screw hole, and the other end is kept suspended. Apply gravity in the direction indicated by the label. Pay special attention not to press the white rubber part directly to avoid damaging the sensor.
