Specification
Brand : PZPZP
BulletPoint1 : It is widely used in the fields of electronics, chemical industry, textile, paper making, machinery, etc.
BulletPoint2 : It has high measurement accuracy, reliability and stability in the field of tension measurement.
BulletPoint3 : The sensor has a built-in overload protection mechanism, and each sensor is rigorously tested before leaving the factory,thus ensuring the measurement accuracy.
BulletPoint4 : It is the choice for high-performance tension control applications in continuous material processing and production
BulletPoint5 : Suitable for tension measurement of various optical fibers, yarns, chemical fibers, metal wires, wires, cables, adhesive tapes, steel belts.
Color : 5KG
ExternallyAssignedProductIdentifier : 7504354408930

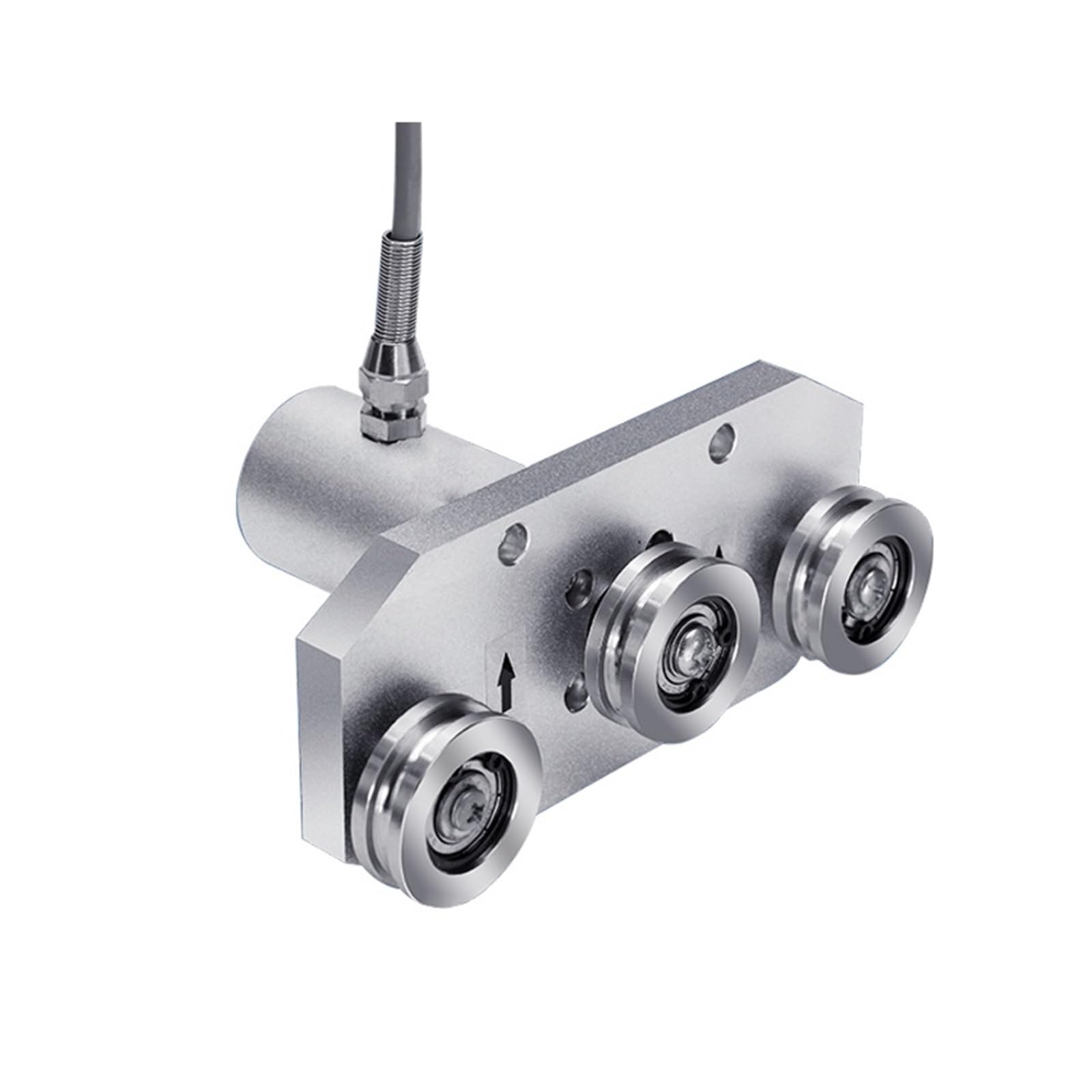

ItemName : Load Cell, 3 Wire Load Cell Tension Sensor 0.3kg 0.5kg 1kg 2kg 3kg 5kg 10kg 20kg 30kg 50kg 100kg Scale Three Pulleys Wire Rope Force Weight,for Measure Force, Pressure(5KG)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-scale-and-balance-parts
Manufacturer : PZPZP
MeasurementAccuracy : 1
ModelNumber : 249055135
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 249055135
ProductDescription : Product Description
Rated Capacity: 0.3KG 0.5KG 1KG 2KG 3KG 5KG 10KG 20KG 30KG 50KG 100KG
Sensitivity: 1.0-2.0±0.1mV/V
Hysteresis: 0.3%F.S
Non-linearity: 0.3%F.S
Relative creep over 30 min: 0.3%F.S
Temp. influence on sensitivity: 0.02%F.S/10
Temp. influence on the zero signal: 0.02%F.S/10
Comprehensive Accuracy: 0.1%FS
Input resistance: 385± 35
Output resistance: 350± 3
Insulation resistance: >2000 M
Operating temperature range: -20~+70
Safe Load Limited: 120%F.S
Reference excitation voltage: 5-12V
Material: Alloy Steel or Stainless Steel
level of protection : IP65

Mode of connection
Input+ : Red, Input- : Black, Output+ : Green, Output- : White
ProductSiteLaunchDate : 2025-03-26T03:22:36.345Z
Size : A
UnitCount : 1
UnspscCode : 41111500
