Specification
Brand : Generic

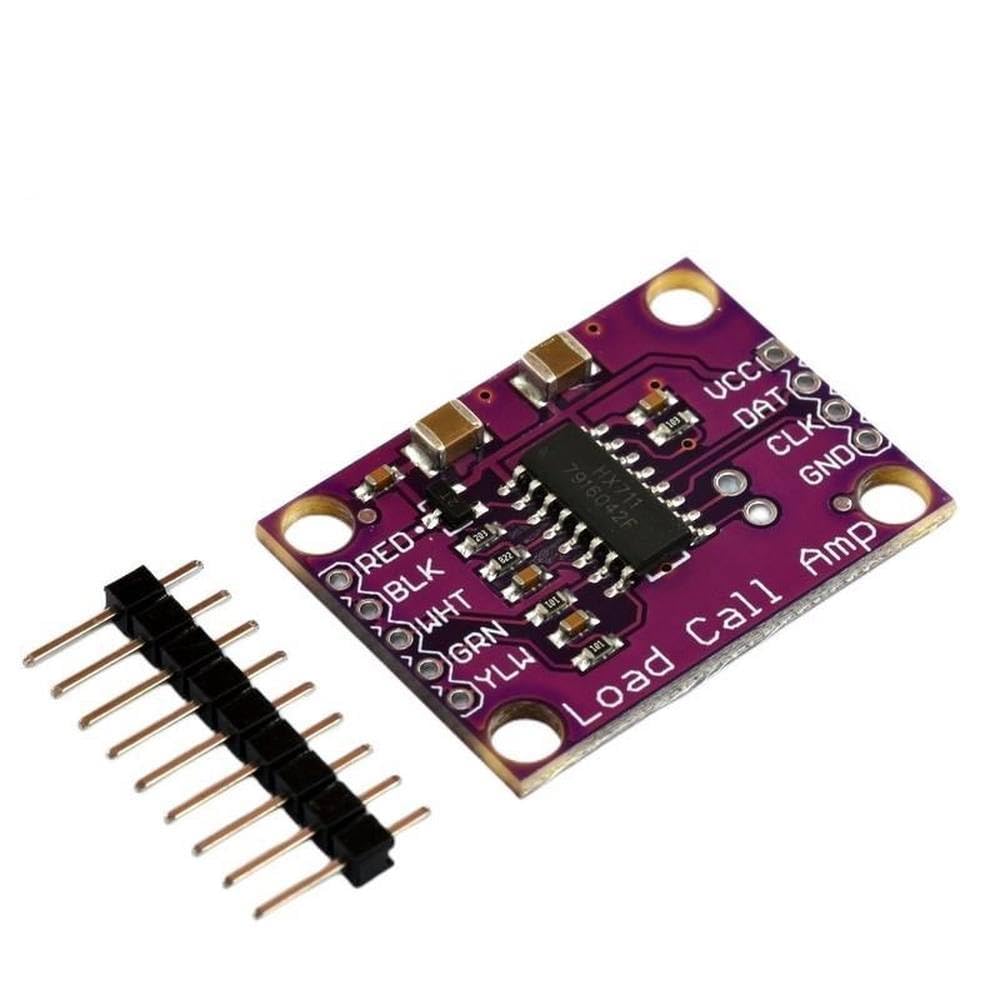

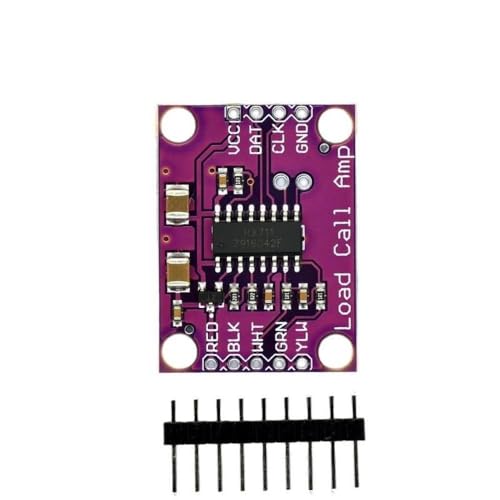

BulletPoint : HX711 High-Precision Electronic Scale Weighing Sensor Dual-Channel 24-Bit A/D Converter Development Board Module
BulletPoint1 : Product Name: Weighing Sensor
BulletPoint2 : Rated Load: 60KG/100KG/200KG/350KG/500KG (optional)
BulletPoint3 : Rated Output: 2.0mV/V±5%
BulletPoint4 : Operating voltage: DC 5-12V
BulletPoint5 : Material: aluminum alloy + steel alloy
Color : Multiple Colors
ExternallyAssignedProductIdentifier : 7296514071022
IncludedComponents : other
ItemName : HX711 High-Precision Electronic Scale Weighing Sensor Dual-Channel 24-Bit A/D Converter Development Board Module
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 21 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : industrial-scale-and-balance-parts
Manufacturer : Generic
Material : Copper
ModelName : BusoThv80qagmx7t
ModelNumber : cb86f0c02b8906f8086faf48c7178a
MountingType : Flange Mount
NumberOfItems : 1
PartNumber : Lile_HFN_2686
PowerSourceType : Manual
ProductDescription : HX711 is A 24-bit A/D converter chip specially designed for high precision electronic scales. Compared with other chips of the same type, this chip integrates peripheral circuits required by other chips of the same type, including stabilized power supply, on-chip clock oscillator, etc. It has high integration, fast response speed, strong anti-interference and other advantages. It reduces the cost of the whole machine of the electronic scale and improves the performance and reliability of the whole machine. The interface and programming between the chip and the back-end MCU chip are very simple, and all the control signals are driven by pins, so there is no need to program the registers inside the chip. The input selection switch can randomly select Channel A or channel B to connect with its internal low noise programmable amplifier. The programmable gain of Channel A is 128 or 64, and the corresponding full limit differential input signal amplitude is ± 20mV or ± 40mV respectively. Channel B is a fixed 32 gain for system parameter detection. The regulated power supply provided in the chip can directly provide power to the external sensor and the/D converter in the chip, and there is no need for another analog power supply on the system board. The clock oscillator in the chip does not need any external devices. The automatic reset function of power-on simplifies the initialization process of power-on.

Two optional differential inputs
· On-Chip low noise programmable amplifier with optional gain of 64 and 128
· On-Chip Voltage regulator circuit can directly provide power to external sensors
and A/D converter in the chip

· On-chip clock oscillator does not need any external devices, external crystal oscillator or clock can be used if necessary
· Power-on automatic reset circuit
simple digital control and serial communication: all controls are input by pins, and registers in the chip do not need programming
optional outp
ProductSiteLaunchDate : 2023-11-30T05:22:11.327Z
Size : Load 500KG
Style : Manual
UnitCount : 1
UnspscCode : 39120000
