Specification
Brand : ATO
BulletPoint1 : High Capacity & Precision: ATO Load Cell offers a capacity of 500 kg~200 ton(optional) with a sensitivity of 2.0±0.1mV/V. It delivers exceptional accuracy with a 0.05% F.S (linearity + hysteresis + repeatability), ensuring reliable performance in various industrial applications
BulletPoint2 : Durable & Reliable Design: Known as a pancake load cell, its flat design provides high strength, good symmetry, and excellent durability. It is built to withstand tough environments, offering long-lasting reliability
BulletPoint3 : Versatile Application: Ideal for tension and compression measurements, this load cell is widely used in platform scales, truck scales, rail weighbridges, and material level control in warehouses, making it suitable for diverse industries
BulletPoint4 : Anti-Eccentric Load Performance: With its low-profile structure and sealed design, the load cell features outstanding anti-eccentric load performance, ensuring precise and stable measurements even in challenging conditions
BulletPoint5 : Customer Support Guarantee: CUSTOMER FIRST - If you have any questions or concerns about the product or sizing, don’t hesitate to contact us via email. We guarantee a response within 12 hours to assist with any issues you may have
IncludedComponents : 1* load cell, 1*Compression Head,1*Module

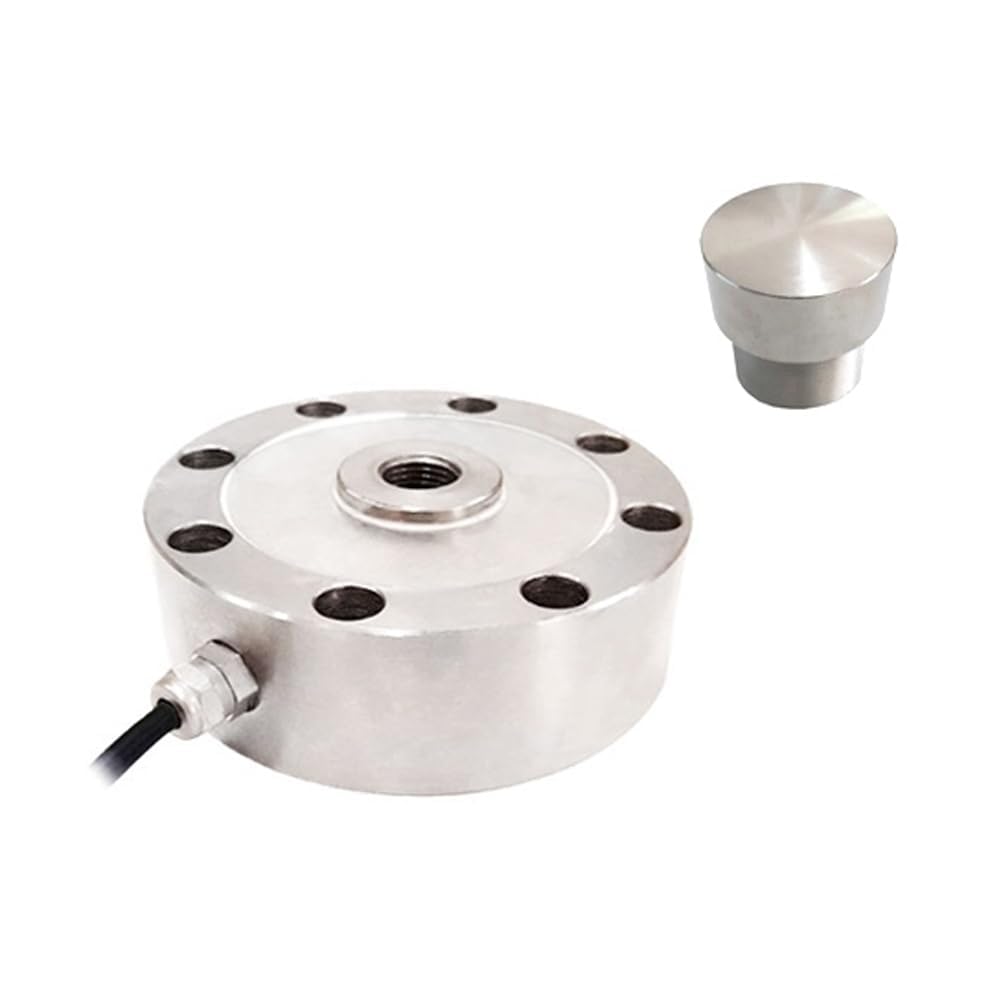

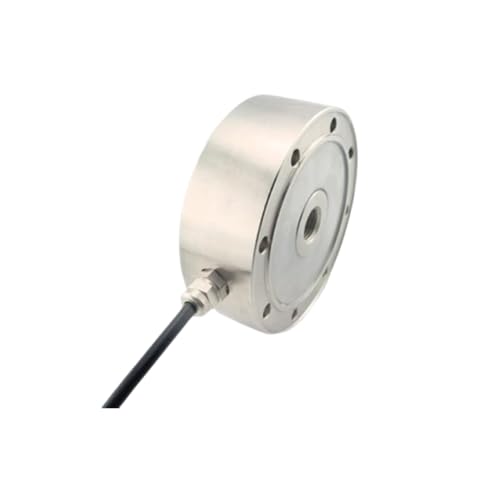

ItemName : ATO 2 ton Load Cell, Tension and Compression Load Cell Pancake Circular 2000kg Load Cell, Low Profile, Strain Gauge for Platform Scale, Truck Scale, Rail Weighbridge
ItemTypeKeyword : industrial-scale-and-balance-parts
Manufacturer : ATO
MeasurementAccuracy : 0.05%F.S (linearity + hysteresis + repeatability)
NumberOfItems : 1
PartNumber : LC-P02-02
ProductDescription :

The ATO Load Cell, also known as the pancake load cell, features a flat design, high strength, and excellent symmetry. Suitable for tension and compression measurements, it is ideal for platform scales, truck scales, rail weighbridges, and warehouse material level control. With capacities ranging from 500kg to 100 tons, it offers anti-eccentric load performance and a low-profile, fully sealed structure. Customize output signals (0~5V, 0~10V, 0~±10V, or 4-20mA). Pair with a digital panel meter or transmitter for easy integration into PLC or DCS systems. Perfect for industrial, medical, and engineering applications.

Specification:

Model: ATO-LCST-TJH-4B

Shipping weight 1.5~60kg

Capacity range * 500 kg~200 ton

Accuracy 0.05%F.S (linearity + hysteresis + repeatability)

Sensitivity 2.0±0.1mV/V

Creep ±0.05%F.S/30min

Zero output ±1%F.S

Temperature effect on zero ±0.05%F.S/10℃

Temperature effect on output ±0.05%F.S/10℃

Operating temperature -20℃~+65℃

Input impedance 380±10Ω or 750±15Ω

Output impedance 350±3Ω or 700±5Ω

Insulation resistance ≥5000MΩ

Safety overload 150%F.S

Bridge voltage (excitation voltage) DC 5~10V

Response time 3-4ms

Material Alloy steel or stainless steel

Protection class IP67

Cable length 3m (＜5 ton), 6m (≥5 ton)

Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

ProductSiteLaunchDate : 2024-11-08T10:03:36.725Z
Size : 2ton - Complete Kit (With Module & Head)
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 24101500
