SpecificationBrand : HFS
BulletPoint1 : [Size]: Sanitary Size: 3"; Flange OD: 3.579"; Tube ID: 2.87"; Tube OD: 3"; Sleeve OD: 5"; Height: 18".
BulletPoint2 : [Quality Materials]: The Sleeved Spool is made of high-quality 304 stainless steel, which is durable, stable, rust and corrosion-resistant, and suitable for long-term use.
BulletPoint3 : [Precise Design]: The Dewaxing Spools allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor. They have attached tri-clamp fittings on each end for user convenience.
BulletPoint4 : [High Working Temp]: It is suitable for liquids working at -58°F to 392°F.
BulletPoint5 : [Convenient Organization and Storage]: Packed in a carton box with a label.
ExternallyAssignedProductIdentifier1 : 0789398116455
ExternallyAssignedProductIdentifier2 : 789398116455

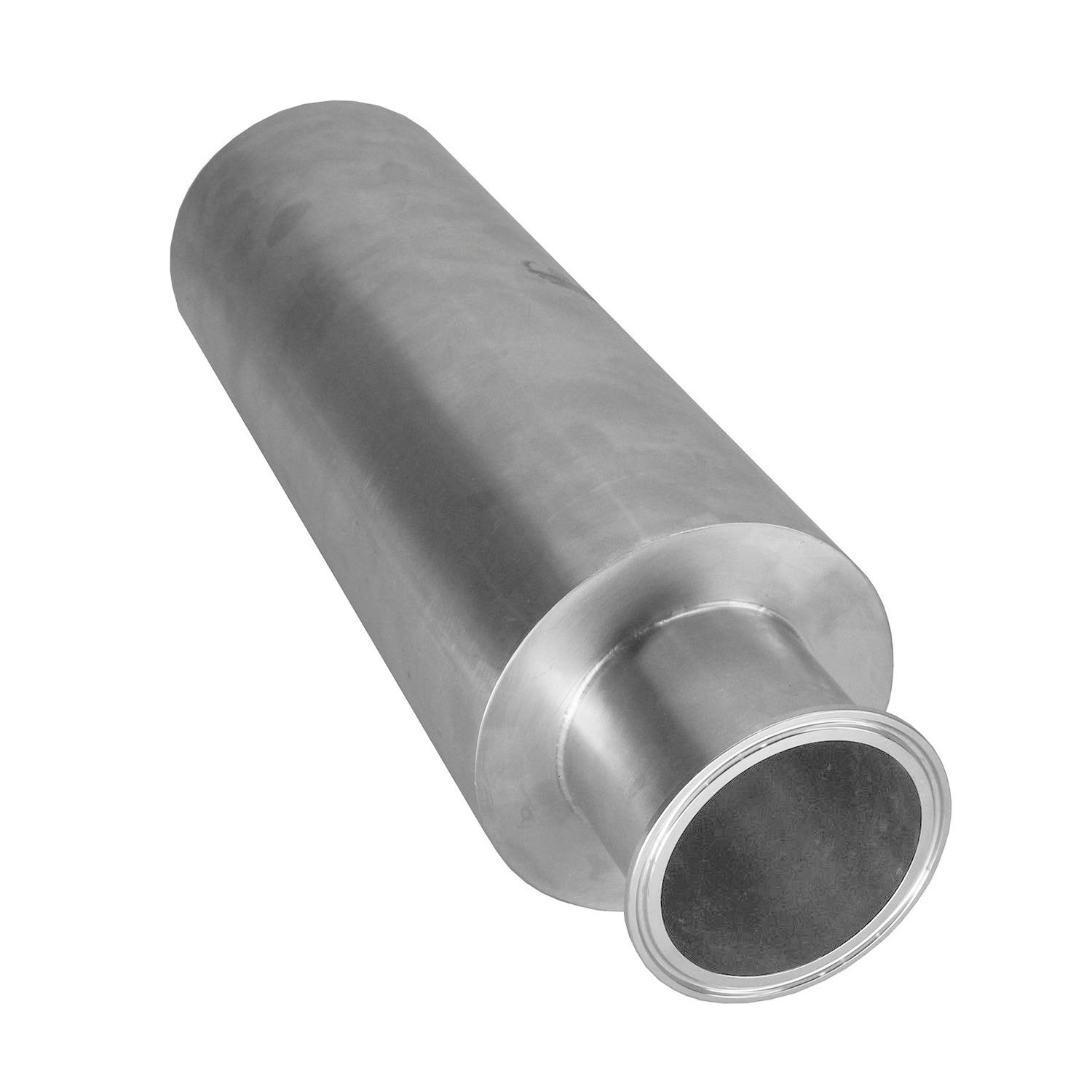

ItemName : HFS(R) 3" Tri Clamp Sleeved Spool, 18" Height, Dewax Chamber Fits Tri-Clamp Ferrule Flange
ItemPackageQuantity : 1
ItemTypeKeyword : sanitary-tube-fittings
Manufacturer : HFS
Material : Stainless Steel
NumberOfItems : 1
PartNumber : EXA-DEWAX-3X18IN
ProductDescription :
In addition to having the versatility of standard spools, sleeved spools have an open top shell over the spools outer wall. It provides the user the option to thermally influence the inner tube and its content without disrupting any ongoing process. Whether it is a liquid or solid, this static matter can be loaded through the open- top and drained through its bottom port. The sleeve’s narrow shape allows for a small quantity thermal influencing media to cover a substantial amount of surface area.
Features: Spool
Material: Stainless Steel
Tri Clamp Size (IN): 3
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Sleeve Connection Type (IN): FNPT 1/2
Sleeve OD (IN): 5
Sleeve Length (IN): 14
Specifications: Spool
Diameter (IN): 3
Height (IN): 18
Radius (IN): 1.5
Volume (Cu In): 127.17
Fluid Capacity (L): 2.08
Fluid Capacity (Gal): 0.55
Butane Capacity (LBS): 2.25 - 2.81
Propane Capacity (LBS): 1.78 - 2.23
Biomass Capacity (LBS): 0.66 - 0.94
3A Sieve Capacity (LBS): 3.75
Nugget Ice Capacity (LBS): 3.00
Specifications: Sleeve
Fluid Capacity (L): 2.88
Fluid Capacity (Gal): 0.76
Sleeve Ice Capacity (LBS): 4.15
