Specification
Brand : WayPonDEV
BulletPoint1 : [Wireless Mini WIFI Router] The NanoPi R2S PLUS is a mini router with edge-computing and dual Gbps Ethernet ports. It adopts Rockchip RK3288 Soc, with 1GB DDR4 RAM and 32GB eMMC 5.1 Flash; CPU: Quad-Core Cortex-A53 CPU, up to 1.5GHz,. And it uses RK805 PMU chip and supports dynamic frequency scaling.
BulletPoint2 : [Dual GBPS Ethernet Ports] The NanoPi R2S Plus Wireless Mini Wifi Router has dual Gbps Ethernet ports, support 1x Internal Gbps Ethernet (RTL8211F chip) and 1 x USB3.0 converted Gbps Ethernet (RTL8153B chip), TX rate is 941Mbps, RX rate is 941Mbps. The USB 2.0 port that can interface with 4G modules, USB HD cameras, USB WiFi modules etc.
BulletPoint3 : [Larger Expansion interface] NanoPi R2S Plus Computer Wifi Router supports M.2 SDIO WiFi Module (RTL8822CS), it can work in AP mode or wireless repeater mode for wireless range expansion. Also onboard USB 2.0 Host x 2: USB Type A, USB-C Port x2, Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL), MicroSD Slot x1 and etc.
BulletPoint4 : [Open Source and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home office gateways, and more. It can also be used as a command line mode for geeks.
BulletPoint5 : [OS/Software Support] NanoPi R2S Plus Portable Mini Wifi Router suppors TF card booting. It works with FriendlyWrt, OpenMediaVault, Debian Core and Ubuntu core etc. These systems are based on Linux-6.1(LTS).It is a good choice for applications that need to be deployed in compact space and need strong networking performance.
BulletPoint6 : [USER MANUAL] WiKi:"https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R2S_Plus". Please feel free to email us to get the Datasheet or any questions of this router after you purchased it. How to email us? Click ''WayPonDEV'' store and ask a question.
Color : DDR4 1GB RAM 32GB eMMC
CompatibleDevices : Desktop
CompatibleDevices1 : Personal Computer
CompatibleDevices2 : Smart Television
CompatibleDevices3 : Tablet
ConnectivityTechnology : Ethernet;Wired;USB
ConnectivityTechnology1 : Wi-Fi
ConnectivityTechnology2 : Ethernet
ConnectivityTechnology3 : USB
ConnectivityTechnology4 : LTE
ControllerType : Switch
ControlMethod : remote
ControlMethod1 : application
ControlMethod2 : touch
CustomerPackageType : Standard Packaging
DataLinkProtocol : Ethernet
DataTransferRate : 100 megabits_per_second
DataTransferRate1 : 867 megabits_per_second
DataTransferRate2 : 1000 megabits_per_second
ExternallyAssignedProductIdentifier1 : 731304122951
ExternallyAssignedProductIdentifier2 : 731304267416
ExternallyAssignedProductIdentifier3 : 0731304267416
ExternallyAssignedProductIdentifier4 : 0731304122951
ExternallyAssignedProductIdentifier5 : 00731304122951
ExternallyAssignedProductIdentifier6 : 00731304267416
Frequency : 5 GHz
FrequencyBandClass : dual_band
GraphicsCardInterface : integrated
GraphicsDescription : Dedicated
HardwareInterface1 : usb3.0
HardwareInterface2 : ethernet
HardwareInterface3 : microsd
HumanInterfaceInput : buttons
IncludedComponents : Mouse
ItemDisplayDimensions_Height : 5 inches
ItemDisplayDimensions_Length : 5 inches
ItemDisplayDimensions_Width : 5 inches
ItemName : Nanopi R2S Plus Wireless WiFi Computer Router OpenWRT, Rockchip RK3328 Soc ,DDR4 1GB RAM 32GB eMMC, with Dual Gbps Ethernet M.2 WiFi Module Slot for Smart Home Office Gateway, Support Debian Ubuntu
ItemPackageDimensions_Height : 40 millimeters
ItemPackageDimensions_Length : 70 millimeters
ItemPackageDimensions_Width : 70 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-routers
LanPortBandwidth : 1 Gbps
Manufacturer : WayPonDEV
MaximumUpstreamDataTransferRate : 1000 megabits_per_second
MemorySlotsAvailable : 1
MemoryStorageCapacity : 32 GB
ModelName : Nanopi R2S Plus Wireless Mini WiFi Router OpenWRT
ModelNumber : Nanopi R2S Plus Wireless WiFi Router
ModelYear : 2024
NumberOfAntennas : 1
NumberOfItems : 1
NumberOfPorts : 14
OperatingSystem : Ios
OperatingSystem1 : FriendlyWrt,FriendlyCore
OperatingSystem2 : Debian Core,Ubuntu Core
OperatingSystem3 : DietPi,OpenMediaVault
OperatingSystem4 : Openwrt
PartNumber : Nanopi R2S Plus
PersonalComputerDesignType : mini_pc
PowerConsumption : 10 watts
ProcessorCount : 4
ProductDescription :

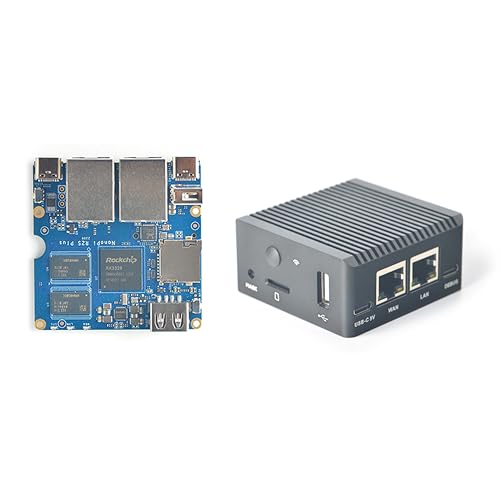

The NanoPi R2S PLUS is a wireless mini wifi router with edge-computing and dual Gbps Ethernet ports.It uses Rockchip's quad-core A53 RK3328 SoC with powerful performance.

-Specification-

CPU: Model: Rockchip RK3328

Number of Cores: Quad-Core Cortex-A53

Frequency: 4 x Cortex-A53 Up to 1.4GHz

Memory 1GB DDR4 RAM

Storage: 32GB eMMC 5.1 Flash,

MicroSD x1 for external storage up to 128GB

Connectivity

Ethernet: 1 x Internal Gbps Ethernet x 1, RTL8211F chip

1 x USB3.0 converted Gbps Ethernet, RTL8153B chip

Optional M.2 SDIO Wi-Fi

USB: USB 2.0 Host x 1: USB Type A

1x USB-C :5V power input and USB update in maskrom mode

1 x USB-C : onboard USB to Debug UART converter, 1500000bps bauds

Pin-header: Serial Debug Port x 1: 2.54mm pitch 3pin-header(3.3V TTL)

LED: 1 x SYS LED(Red),1 x WAN LED(Green), 1 x LAN LED(Green)

Button: 1 x GPIO Button, 1 x Maskrom mode Button

Working Temperature 0℃ to 70℃

Power: DC 5V/2A

PCB: 6 Layer

Weight: 145g（With Case)

Dimension: 62.5mm x 63.5mm x 30mm (with Case)

-OS Support-

FriendlyWrt 21.02, FriendlyWrt 23.05

FriendlyCore Focal Lite (Base on Ubuntu 20.04) Buildroot

Debian 11 Core

OpenMediaVault

Buildroot

Kernel version: Linux-6.1-LTS, U-boot-2017.09

-Package Content-

NanoPi R2S Plus Mini Wifi Router x1

-Technical Support-

• Wiki:"wiki.friendlyelec.com/wiki/index.php/NanoPi_R2S_Plus".

• Getting Started: "wiki.friendlyelec.com/wiki/index.php/NanoPi_R2S_Plus#Get_Started".

• Please click "WayPonDEV" and ask a question.

• Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)" or skype: monica_9122.

ProductSiteLaunchDate : 2024-01-03T12:47:30.830Z
RecommendedUsesForProduct : Business
SecurityProtocol : WPA2-PSK
Size : 63.5mmx62.5mmx30mm
SpecificUsesForProduct : Mini Wifi Router, Smart Office Home Gateways, Wireless Repeater
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SystemRamType : ddr4_sdram
TotalExpansionSlotsQuantity : 1
TotalUsb20Ports : 2
TotalUsbPorts : 4
UnspscCode : 43220000
Voltage : 240 volts
WarrantyDescription : 90 days limited warranty
WirelessCommStandard : 802_11_AC
WirelessCommStandard1 : 802_11_AC
WirelessCommStandard2 : 802_11_AX
WirelessCommStandard3 : 802_11_AD
WirelessCommunicationTechnology : Wi-Fi
WirelessCommunicationTechnology1 : Bluetooth
WirelessCommunicationTechnology2 : Wi-Fi
WirelessCommunicationTechnology3 : Cellular
WirelessNetworkTechnology : wifi
