Specification
Brand : ACNAO
BulletPoint1 : High Availability: It can be matched with many types of sliding tables, such as single-axis, double-axis, z-axis, c-axis, r-axis, etc, meeting your various needs, and improving your working efficiency and quality.
BulletPoint2 : High Precision: It adopts high precise micrometer, cross roller guide, and solid square base, ensuring stable movement and high precision which can be refined to 0.01mm, so it is very suitable for high-precision devices. You can use it with confidence.
BulletPoint3 : Easy to Use: Fine and coarse adjustment knob, locking knob, highly precise micrometer, and clear markings can help you easily operate, and achieve precise regulation, adding more convenience to your work.
BulletPoint4 : Effortless to Clean: The smooth surface and simple structure allow you to easily clean with a dry rag.
BulletPoint5 : Compact and Lightweight: The compact size(6.37*5.42*3.35 in) and lightweight(4.4lbs) allows it can be free-stood and mounted on a desktop without taking up too much space and allow for easy carrying any place you want.
ExternallyAssignedProductIdentifier : 9460887146146
IncludedComponents : 1* Manual Linear Position Stage

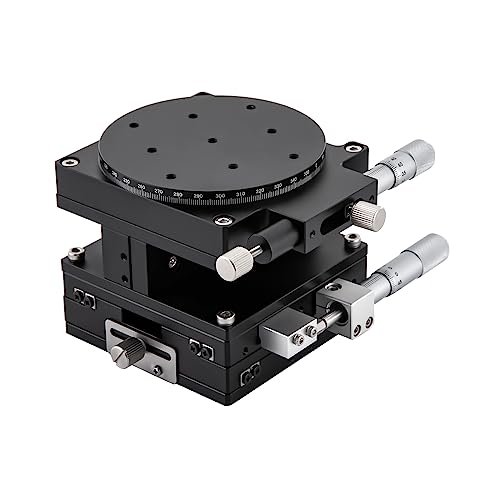

ItemName : Manual Linear Position Stage,High Precision Aluminum Alloy Linear Positioning Stage,Compact and Lightweight Desktop Linear Positioning Stage for Optical Instruments, Measuring Devices
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 28 centimeters
ItemPackageDimensions_Width : 22 centimeters
ItemTypeKeyword : roller-tables
Manufacturer : ACNAO
Material : Aluminum
ModelNumber : Manual Linear Position Stage
NumberOfItems : 1
PartNumber : Manual Linear Position Stage
ProductDescription :

This manual linear position stage is made of high-quality aluminum alloy, which is strong, durable, and not easy to deform, ensuring a long service life.      It boasts excellent performance, improving the precision and efficiency of checking, saving your time and energy.      The simple structure and smooth surface make it very easy to clean.      It will be your ideal choice for the manual linear stage.

Details

Locking Screw: You can easily fix the sliding table surface with the locking screw, enhancing the stability of the product.

Rounded Corners: Round corners provide a comfortable and safer touch during use.

Application

It is suitable for optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, conveyors, processing machines, printing machines, laboratory precision testing, mechanical equipment positioning and movement, various fiber coupling, optical waveguide alignment, core alignment, packaging systems, capacitive touch screen production equipment, tooling fixtures.

Specification

Material: Aluminum Alloy

Model: LT90-LM

Color: Black

Style: Modern

Numbers of Items: 1

Mount Type: Desktop

Operation Method: Manual

Moving Direction: X,Y, Z, R Axis

Operating Temperature: 10~50 ° C/50~122℉

Recommended Operating Temperature: 22±5°C/71.6± 41℉

Travel: XY: ±12.5mm/0.49in, Z: 10mm/0.39in, R Axis:360° Coarse Tuning (±5° Fine Tuning)

Load: 49N (5KGF)

Minimum Marks: 0.01mm/0.00039in

Accuracy: 0.03 mmmm

Net Weight: 2kg/4.4 lbs

Gross Weight: 2.2kg/4.8 lbs

Countertop Diameter: 9cm/3.54in

Product Size: 16.19*13.78*8.5cm/6.37*5.42*3.35 in

Package Size: 15*15*15cm/5.9*5.9*5.9 in

Package Included

1* Manual Linear Position Stage



Notes

1.     This series of products is composed of high-precision components.  Please avoid using them in environments such as extremely high and low temperatures, severe temperature fluctuations, direct sunlight, high humidity, high impact, and an easy fogging environment.

2.     If more than the specified load is applied to the countertop, the accuracy will decrease and the machine may even be damaged.      Please try to avoid it as much as possible.

3.     Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
