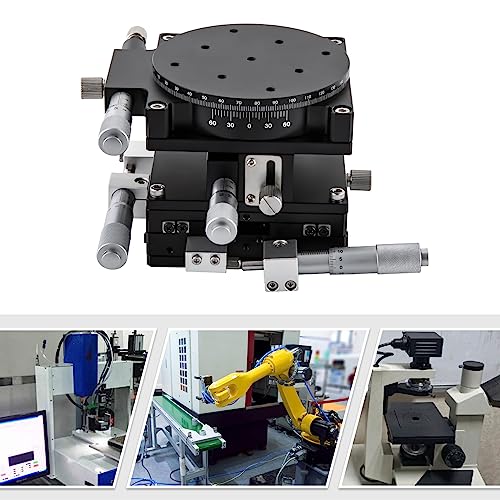

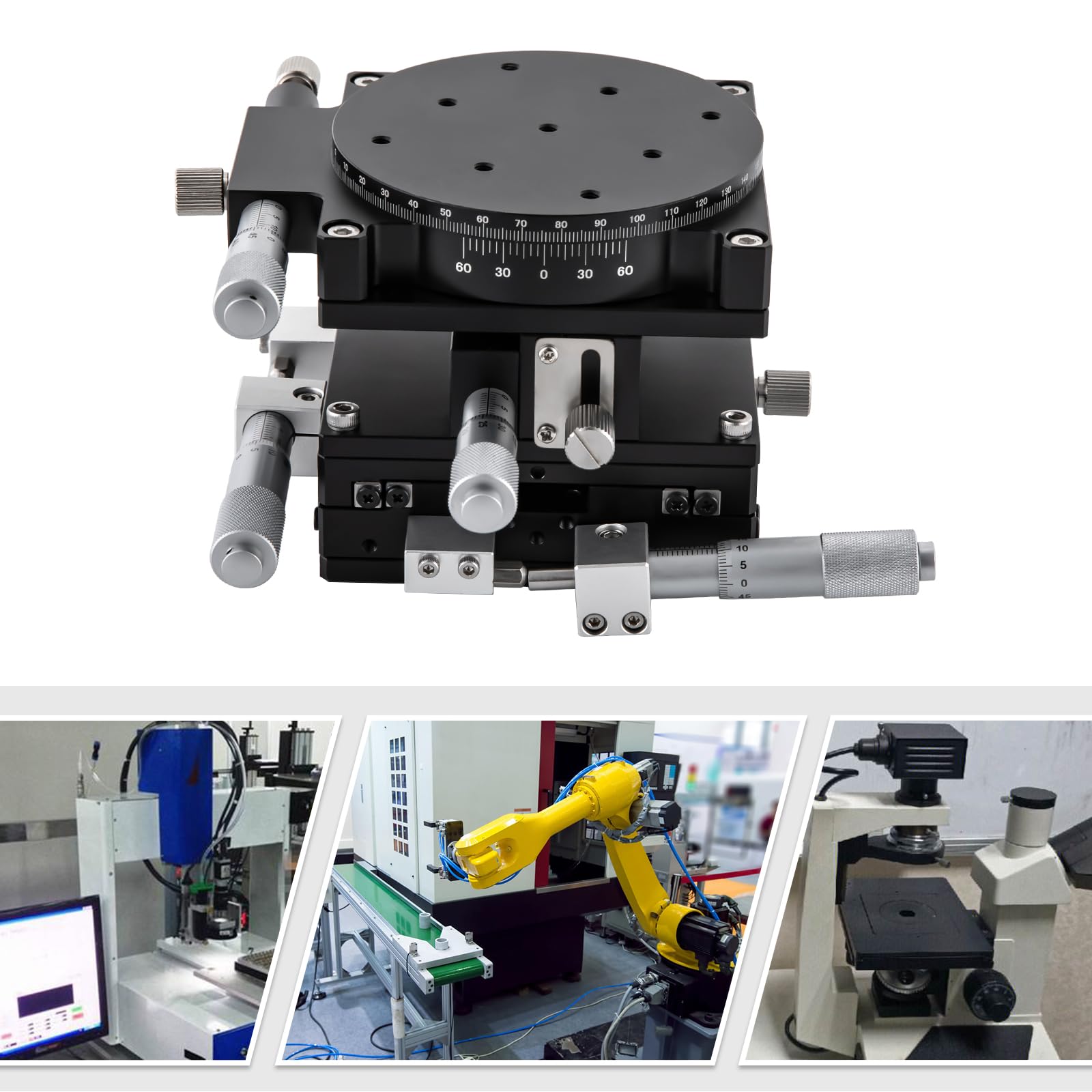

90×90mm Manual Linear Positioning Stage Tuning Platform Aluminum Alloy 4 Axis Load 49?54GF?for Optical Laboratory Precision Measurement(Black)

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 44700/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : BRICZUNA
BulletPoint1 : High Precision: This manual linear position stage adopts high precise micrometer, cross roller guide, and solid square base, ensuring stable movement and high precision which can be refined to 0.01mm, so it is very suitable for high-precision devices
BulletPoint2 : High Availability: The manual linear positioning stage can be matched with many types of sliding tables, such as single-axis, double-axis, z-axis, c-axis, r-axis, etc, meeting your various needs, and improving your working efficiency and quality
BulletPoint3 : Sturdy and Durable: The high-quality aluminum alloy with oxidation makes it resistant to rust, corrosion, deformation, tear, and wear, ensuring sufficient durability
BulletPoint4 : Compact and Lightweight: The compact size(6.37*5.42*3.35 in) and lightweight(4.4lbs) allows it can be free-stood and mounted on a desktop without taking up too much space
BulletPoint5 : Easy to Clean: As the smooth surface and simple structure allow you to easily clean the dust with a dry rag
IncludedComponents : 1* Manual Linear Position Stage
ItemName : 90×90mm Manual Linear Positioning Stage Tuning Platform Aluminum Alloy 4 Axis Load 49(54GF)for Optical Laboratory Precision Measurement(Black)
ItemPackageDimensions_Height : 5.9 inches
ItemPackageDimensions_Length : 5.9 inches
ItemPackageDimensions_Width : 5.9 inches
ItemPackageQuantity : 1
ItemTypeKeyword : roller-tables
Manufacturer : YJOutdo-US
Material : Aluminum
ModelNumber : GY323F4TWDYJ8 -WYL
NumberOfItems : 1
PartNumber : GY323F4TWDYJ8 -WYL
ProductDescription :

Application

This  manual linear position stage is suitable for optical instruments, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, conveyors, processing machines, printing machines, laboratory precision testing, mechanical equipment positioning and movement, various fiber coupling, optical waveguide alignment, core alignment, packaging systems, capacitive touch screen production equipment, tooling fixtures, optical instrument devices, non-standard equipment.



Specification

Material: Aluminum Alloy

Surface Treatment: Oxidation

Model: LT90-LM

Color: Black

Style: Modern

Numbers of Items: 1

Mount Type: Desktop

Operation Method: Manual

Moving Direction: X,Y, Z, R Axis

Operating Temperature: 10~50 ° C/50~122℉

Recommended Operating Temperature: 22±5°C/71.6± 41℉

Travel: XY: ±12.5mm/0.49in, Z: 10mm/0.39in, R Axis:360° Coarse Tuning (±5° Fine Tuning)

Load: 49N (5KGF)

Minimum Marks: 0.01mm/0.00039in

Accuracy: 0.03 mmmm

Net Weight: 2kg/4.4 lbs

Gross Weight: 2.2kg/4.8 lbs

Countertop Diameter: 9cm/3.54in

Product Size: 16.19*13.78*8.5cm/6.37*5.42*3.35 in

Package Size: 15*15*15cm/5.9*5.9*5.9 in



Package Included

1* Manual Linear Position Stage
