Specification
Brand : Hex Autoparts
BulletPoint : Bearings
BulletPoint1 : Package Includes: 1 x LH Thread Rod End | 1 x RH Thread Rod End | 1 x LH Jam Nut | 1 x RH Jam Nut | 1 x LH Tube Adapter | 1 x RH Tube Adapter | 2 x LH High Misalignment Spacer | 2 x RH High Misalignment Spacer
BulletPoint2 : They are heat-treated and hard chrome plated to give you a better finish for consistent performance
BulletPoint3 : The included jam nut is zinc coated for superior durability
BulletPoint4 : Easier mounting and adjustment of position in installations
BulletPoint5 : They can be used in a wide range of industries in many of different applications such as mechanisms, linkages and control rods
Color : Multi
ExteriorFinish : Plating
ExternallyAssignedProductIdentifier : 7604641402822
ExternallyAssignedProductIdentifier1 : 4547359474961
ExternallyAssignedProductIdentifier2 : 04547359474961
ExternallyAssignedProductIdentifier3 : 00053893018850
FitType : Universal Fit
GpsrSafetyAttestation : 1
IncludedComponents : 1 Right Hand Thread 1 Left Hand Thread Heim Joint Set

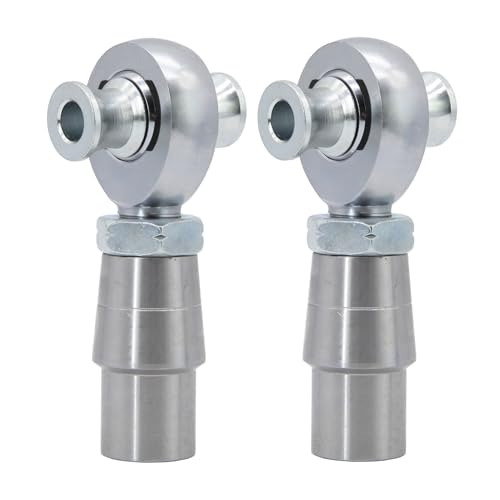

ItemName : Hex Autoparts Heim Joints Rod Ends Chromoly 7/8 x 7/8-14 w/ 7/8-1/2 HMS & Bung .120 Wall XMR14 & XML14
ItemPackageDimensions_Height : 1.63 inches
ItemPackageDimensions_Length : 8.63 inches
ItemPackageDimensions_Width : 5.38 inches
ItemPackageQuantity : 1
ItemTypeKeyword : rod-end-bearings
Manufacturer : Hex Autoparts
Material : 4130 Chromoly Steel
ModelName : Rod Ends 07240
ModelNumber : 07240
NationalStockNumber : 3110-00-100-3891
NumberOfItems : 1
PackageLevel : unit
PartNumber : 07240
ProductDescription : Specification:

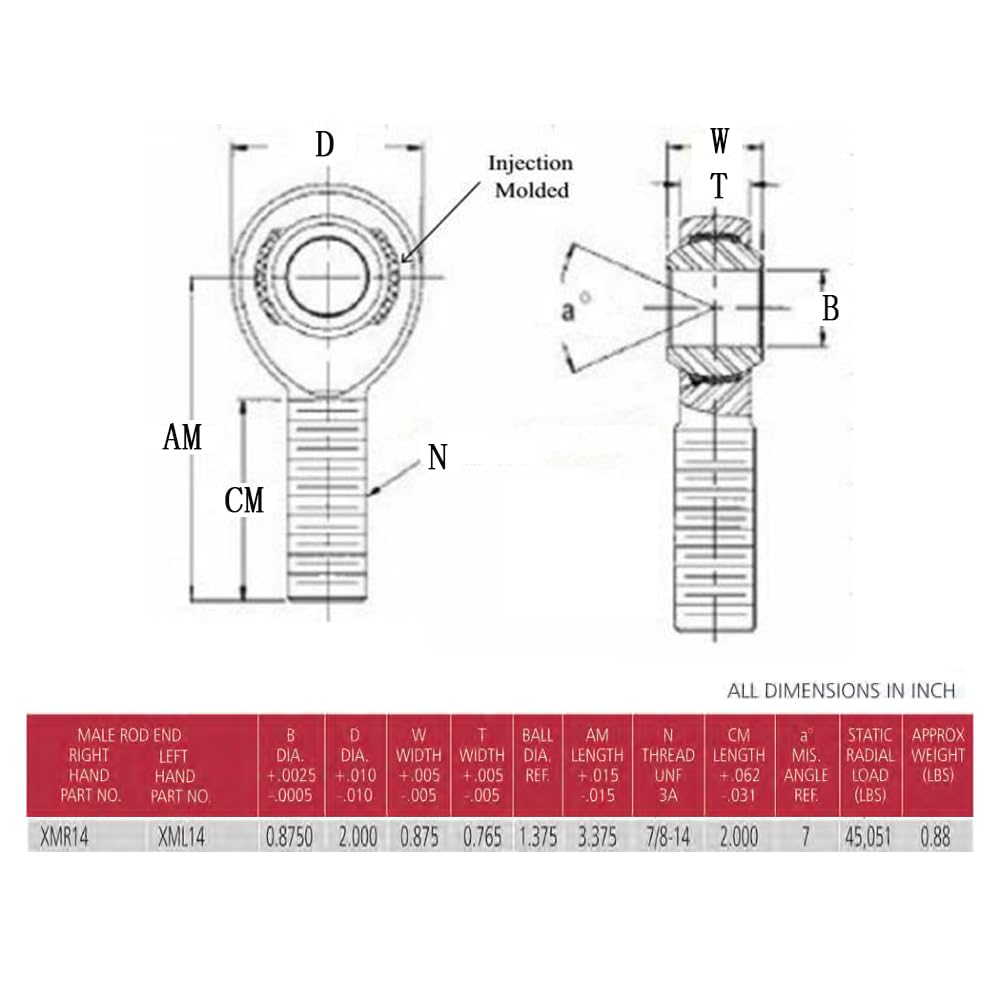

Rod End (XML14 & XMR14)
Material: Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End
Thread Size: 7/8"-14
Ball Bore: .875"
Ball Width: .875"
Centerline Length: 3.375"
Thread Length: 2"
Load Capacity: 45,051lbs

Bung (WTF-1401L & WTF-1401R)
Material: Chromoly
Thread Size: 7/8"-14
Bung Size: 1 1/2" OD x 0.120" Wall x 1.26" ID.

High Misalignment Spacer Specs (HMS14-813)
Material: Zinc Plated Carbon Steel
Insert Dia: .875
Inside Bore: .500
Outside Boss Dia:1
Overall Length In Ball: 2.5
Approximate Degrees: 52

Jam Nut (JNL14S & JNR14S)
Thread: 7/8"-14
Width: Max 1.312"-Min 1.269"
Height: Max 0.510"-Min 0.458"
Carbon Steel, Zinc Plated
ProductSiteLaunchDate : 2024-01-04T05:47:44.812Z
Size : One Size
StreetDate : 2018-08-17T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 25170000
WarrantyDescription : 90 Days Warranty
