Specification
Brand : 50 Caliber Racing

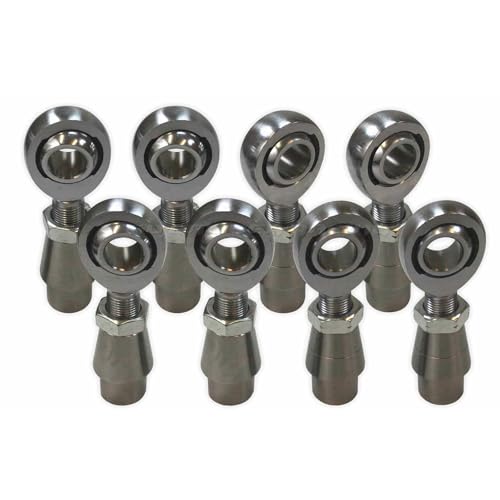

BulletPoint1 : 5/8 HEIM JOINT 4- LINK KIT: Includes (4) RHT and (4) LHT heim joints with jam nuts, (4) RHT and (4) LHT weld bung tube adapters
BulletPoint2 : PRODUCT SPECIFICATIONS: Heim joint: 5/8"-18 Thread x 5/8" Bore ● Bungs: 1.25" OD x .120 Wall x 1.00" ID ● Static Load Rating: 17,955 lb
BulletPoint3 : HEAVY DUTY CONSTRUCTION: Constructed from heat-treated 4130 Chromoly, and feature a self-lubricating Kevlar/PTFE liner to reduce wear and shock. Fully threaded Chromoly weld bungs add extra strength
BulletPoint4 : EASY INSTALLATION: The weld-in bungs are designed for effortless welding using either MIG or TIG processes, and every component is precision-crafted to ensure smooth mating and a seamless installation experience
BulletPoint5 : FOR CUSTOM FABRICATION: Ideal for building chassis components like 4-link rods, radius rods, tie rods, sway bar end links, steering supports, and more! 4x4, Rock Crawlers, Off-road, Trucks, Race Cars, Sand Rails, UTVs
Color : 5/8" Heim Joints - 1.25" OD .120 wall
ItemName : 5/8" Heim Joint Kit - Chromoly Heim Joints 5/8" for 1.25" OD .120 Wall Tube - Fabricate 4-Link Tie Rod Ends Suspension Steering UTV Rock Crawler Sand Rail Hot Rod Johnny Joint [6100A7] 8-Set
ItemPackageQuantity : 1
ItemTypeKeyword : rod-end-bearings
Manufacturer : 50 Caliber Racing
Material : Steel
NumberOfItems : 1
PartNumber : 5/8 4 Link Kit .120 [6100A7]
ProductDescription : 50 Caliber Racing 4 Link Fab Kit - 5/8-18 x 5/8 Chromoly Heim Joints and Bungs for .120 Wall 1.25" OD Tubing [6100A7] Rod end fabrication kit complete with 5/8 x 5/8 heat treated Chromoly Heim joints, jam nuts, and weld in bungs (tube adapter). Designed specifically for 1.25" OD tubing, with wall thickness of .120. Heim joints are made from 4130 Chromoly steel, with a kevlar / teflon liner. The load rating and size make these excellent for building a custom 4 link suspension setup, radius rods and control arms for UTVs, cars, trucks and more. Includes Left and Right hand thread heim joints, jam nuts, and bungs. Includes: - (4) 5/8-18 x 5/8 bore Heim Joints - RH Thread - (4) 5/8-18 x 5/8 bore Heim Joints - LH Thread - (4) RH Jam Nuts - (4) LH Jam Nuts - (4) RH Weld in Bungs (tubing adapter) - (4) LH Weld in Bungs (tubing adapter) Heim Joints: - 4130 Chromoly Steel, kevlar / teflonLiner - Static radial load rating: 17,955 lb - Thread pitch: Male 5/8" - 18 - Bore: 5/8" - Ball end diameter: 1.5" - Socket width: .562" - Ball width: .75 - Overall length: 3.37" - Center line length: 2.63" Bungs: - Thread: Female 5/8"-18 - Material: Chromoly Steel - Thread Length: Full length - 1.25" OD x .120 Wall x 1.0" ID Perfect for fabricating custom suspension and steering links on your 4x4, sand rail, hot rod, race car, utv and more! - 4 Link arms - Tie Rods - Hi steer components - Radius rods - Panhard bar / trackbar - Drag link - Control arms - Sway bar end links - Custom Mounts
ProductSiteLaunchDate : 2018-11-02T07:00:00.000Z
Size : 5/8" Heim Joints - 1.25" OD .120 wall
UnspscCode : 25170000
