Specification
AudioOutputMode : Stereo
Brand : Thor Broadcast
BulletPoint : 1pcs 5V Laser Sensor Module non-modulator Tube Laser Receiver Module High Level Output
BulletPoint1 : IF YOU NEED HELP INSTALLING YOUR HYBRID MODULATOR CALL US AT 1(800)521-8467 Ext 2
BulletPoint2 : 8 Independent HDMI and SDI Inputs - (individually selectable for each of the 8 channels you can output) Outputs 8 separate Clear CATV RF channels QAM / ATSC - 8VSB / DVB-T / ISDB-T (selectable in the GUI)
BulletPoint3 : RF output on each of the 8 RF channels can be individually set to a frequency and modulation standard (2 on QAM, 3 on ATSC, 4 on ISDBT, etc)
BulletPoint4 : Supports full HD video up to 1080p/59.94/60, other resolutions included are 1080i, 720p, 480i also supported. DVB-C Annex A and B - QAM 64, QAM 256
BulletPoint5 : Video encoding rate up to 25Mbps. MPEG2 Video Encoding. Dolby AC3 and MPEG1 Layer 2, & AAC audio encoding.
Color : Black
CompatibleDevices : Television
CompatibleDevices1 : Personal Computer
CompatibleDevices2 : Laptop
CompatibleDevices3 : Smartphone
CompatibleDevices4 : Tablet
ConnectivityTechnology1 : HDMI
ConnectivityTechnology2 : Ethernet
ConnectorType : HDMI
ExternallyAssignedProductIdentifier : 7657745334940
ExternallyAssignedProductIdentifier1 : 659682981574
ExternallyAssignedProductIdentifier2 : 0659682981574
FinishType : Hdmi
InputVoltage : 8 volts

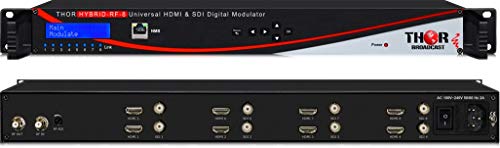

ItemName : Thor Broadcast HDMI and SDI Clear CATV RF Modulator, 8 Channel, QAM, ATSC, DVB-T, ISDB-T
ItemPackageDimensions_Height : 58.42 centimeters
ItemPackageDimensions_Length : 12.954 centimeters
ItemPackageDimensions_Width : 57.658 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electrical-distribution-modulators
Manufacturer : Thor Fiber
ModelNumber : HYBRID
NumberOfItems : 1
NumberOfPorts : 8
PartNumber : MN116203
PowerPlugType : type_a_2pin_na
ProductDescription : Up to 8 Channels of HDMI or SDI inputs allow you to select either or in the options menu on the simple and creative GUI. This modulator by Thor has independent input cards for flexibility for Digital Modulation because it eliminates the need for HDMI to SDI or SDI to HDMI converters. Simply select which source you want to use and input the channel frequency creating an automated encoding headend device that can clean up your headend and modulation distribution infrastructure. Each channel can individually be selected as an HDMI or SDI input, it could be switched on the fly using front panel buttons or Thor's dynamic proprietary Web interface. Each of the 8 channels of RF output can be set totally independent as a frequency AND modulation standard. For example, you can input 4 channels as HDMI and set to QAM output and then input 4 channels of SDI and as ATSC output. This flexibility that hasn't been seen before on the market creating a whole new generation of standard for encoder modulation products The New THOR HYBRID Modulator has an NMS port and LCD display with simple D-Pad buttons for control and easy setup on the fly. It includes and supports the majority of modulation standards found in the world; For example Clear QAM Annex A and Annex B, ATSC-8VSB, DVB-T, and ISDB-T. The Hybrid modulator supports MPEG2 video encoding up to 25Mbps/channel, Audio AC3 or MPEG1 Layer 2, and AAC, Thor's world-famous, low Latency, and VCT -Virtual Channel Numbers for increased for flexibility. Each CATV RF channel can be set individually, so it does not have to be in a linear 8ch block, feel free to spread out your new custom RF channels all over the existing RF spectrum in your modulation lineup.
ProductSiteLaunchDate : 2019-08-22T01:03:21.087Z
SpecificUsesForProduct : TV, Projector, Monitor, Laptop, Camera
SpecificUsesForProduct1 : Business
SpecificUsesForProduct2 : Entertainment
SupplierDeclaredDgHzRegulation : not_applicable
SupportedInternetServices1 : YouTube
SupportedInternetServices2 : Netflix
TotalHdmiPorts : 8
UnitCount : 1
UnspscCode : 52161500
VideoEncoding : MPEG4 H.264
WarrantyType : Limited
WirelessCommunicationTechnology : RF
