Specification
Brand : Generic
BulletPoint1 : The module has a larger dynamic range and a wider operating frequency range.
BulletPoint2 : The maximum output power is + 21dBm (100mW) 1dB compression point.
BulletPoint3 : Great workmanship, suitable for all types of fixed gain amplification of RF
BulletPoint4 : With small size, easy to carry and store, convenient to use and with good performance.
BulletPoint5 : Can be used with peace of mind, with strict quality control and quality assurance.

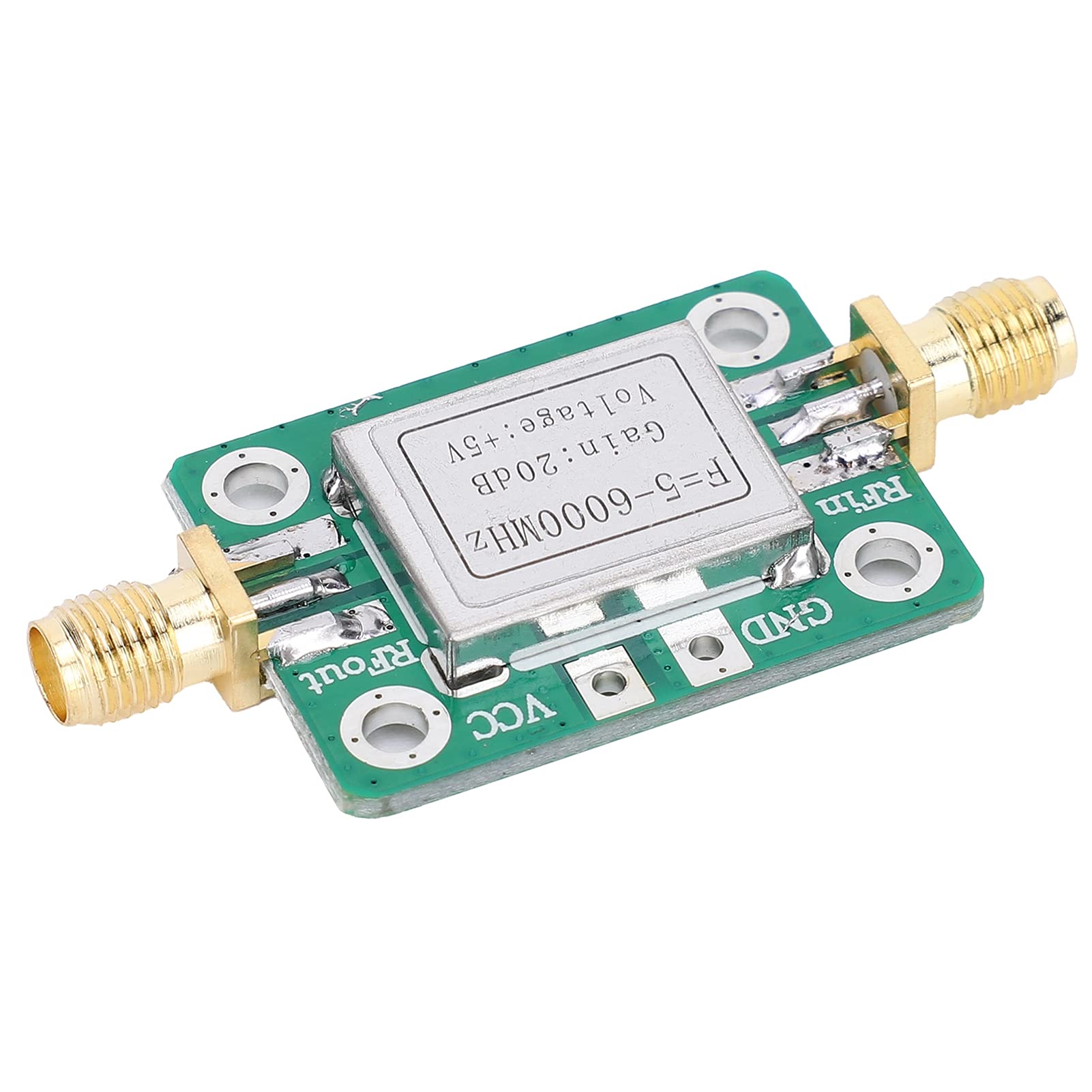

ItemName : Generic RF Ultra Wideband Module, 5-6000MHz, 20dB Gain, 100mW Output, 5V DC, 1 Channel
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : electrical-distribution-modulators
Manufacturer : Generic
Material : ABS
MaximumSupplyVoltage : 5 volts_of_direct_current
ModelNumber : Generic
MountingType : Freestanding
NumberOfChannels : 1
OutputPower : 0.1 watts
PartNumber : Kuuleynp52s0cateb
ProductDescription :

Features

The module has a larger dynamic range and a wider operating frequency range.

The maximum output power is + 21dBm (100mW) 1dB compression point.

Great workmanship, suitable for all types of fixed gain amplification of RF signals.

With small size, easy to carry and store, convenient to use and with good performance.

Can be used with peace of mind, with strict quality control and quality assurance.

Specification

Item Type: RF Module

Working Frequency: 5-6000MHz

Amplifier Gain: 20dB

Maximum Output Power: + 21dBm (100mW) at 1dB compression point

Working Current: 85mA (5V)

Power Supply Voltage: 5VDC

System Impedance: 50Ω

Size: Approx. 34 x 25mm / 1.3 x 1in

How to Use

Package List

1 x RF Module

Note

In use, the relevant principles of RF and microwave circuit layout should be followed.

ProductSiteLaunchDate : 2024-08-02T04:37:39.222Z
UnspscCode : 32101600
Voltage : 5 volts_of_direct_current
