Specification
AlertType : Motion
Brand : PATIKIL
BulletPoint1 : Product Content: 2 x RC-36 Recessed Magnetic Door Switch; Color: White, Material: ABS.
BulletPoint2 : Each Size(Approx): 25mm x 19mm/1" x 0.75" (L*D). Cable Length: 25cm/9.8".
BulletPoint3 : Contact Type: NO (Normally Open), Actuation Distance: 20-30mm, Max Voltage: 100V, Max Current:0.5A.
BulletPoint4 : Door contact sensors used with commercial or residential access systems and all security access and burglar alarm system.
BulletPoint5 : Recessed-mounted magnetic contact ideal for wood door window security, Recessed easy to install, good concealment, fashion and beauty, Anti-fire ABS.
Color : White
ConnectivityProtocol : X-10
ConnectivityTechnology : Wired
ConnectorType : Screws
ControlMethod : application
CurrentRating : 500 milliamps
ExternallyAssignedProductIdentifier1 : 744343870974
ExternallyAssignedProductIdentifier2 : 0744343870974
IncludedComponents : Sensors
InstallationType : Wall Mount
InternationalProtectionRating : IP65

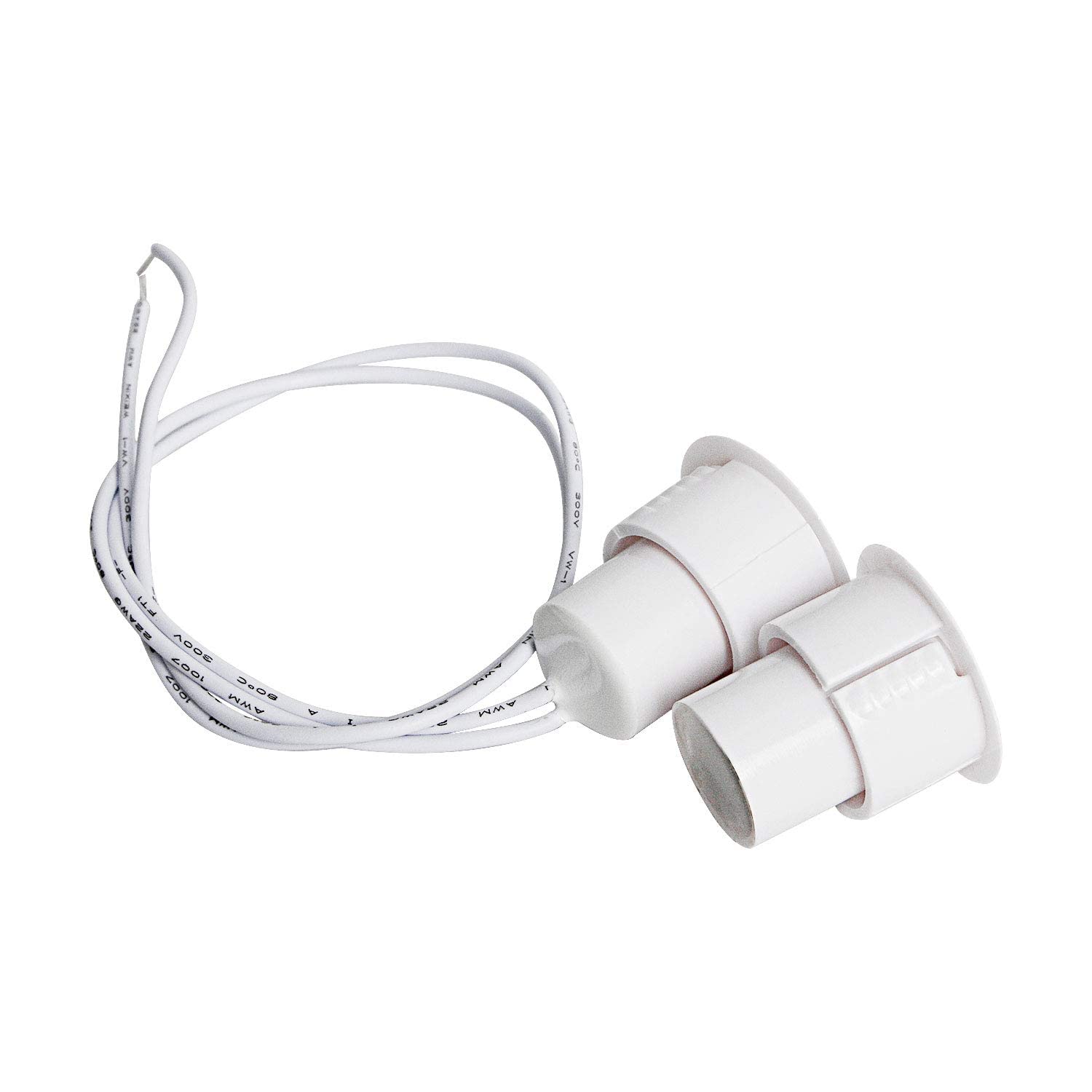

ItemName : Aoje-Link RC-36 NO Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch for Home Security Access Control and Burglar Alarm Systems White 2pcs
ItemPackageDimensions_Height : 13.8938 centimeters
ItemPackageDimensions_Length : 2.3876 centimeters
ItemPackageDimensions_Width : 9.2964 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : reed-switches
Manufacturer : Aoje Link-Electric
Material : copper
ModelNumber : a20122601ap0046
MountingType : Surface Mount
NumberOfBoxes : 1
NumberOfItems : 3
OperatingVoltage : 100 volts
PartNumber : a20122601ap0046
PowerSourceType : Corded Electric
ProductDescription :

Magnetic Reed Switch Alarm Recessed Mount Wired Contact Sensor Connect to the alarm.

Sharp alarm will be heard when someone opens window or door in arming status,The reed switch is an electrical switch operated by an applied magnetic field. Keep your house safe with this door security alarm.



1.Recessed easy to install, good concealment, fashion and beauty, Anti-fire ABS.

2.The reed switch is an electrical switch operated by an applied magnetic field.

3.Switch Type: NO means Normally Open:when the magnet separate, the circuit is not conductive( light on ); When the magnet together, the circuit is conductive ( light off ).

4.Work as an anti-theft alarm, ideal for wood door and window.





Specification:

Model: RC-36

Material: ABS

Color: White

Max Power: 10W

Max Voltage: 100V

Max Current: 0.5A

Min Temperature: -22℉

Max Temperature: 140℉

Actuation Distance: 20-30mm

Contact Type: NO (Normally Open)

Size(Approx): 25 x 19mm(L*D)



Package Content:

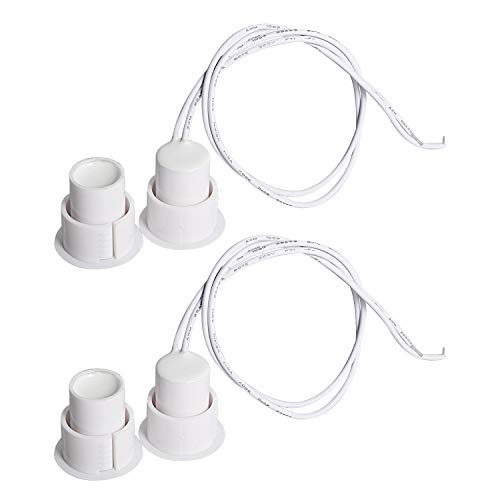

2pair x Magnetic Door Switch.



Note:

1: Please Drill installation hole with a diameter of 19 mm, The door and window magnet should be installed at the closed position of the door/window/drawer.



2: The magnet part is installed on the movable door and window. The switch part is installed on the fixed door and window frame. The switch part and the magnet part should be aligned as much as possible.



3: The door magnet should be away from the strong magnetic field interference source such as a transformer. Otherwise, the working characteristics of the door magnet will be changed and possible wrong actions.



4: Door magnetic can only provide switching signal, can not be directly loaded, need to be connected with the power supply or lamps and lanterns into a set of system.

ProductSiteLaunchDate : 2021-03-18T11:35:56.222Z
Size : RC-36 NO
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Reed Switch
TerminalType : Screw
UnitCount : 2
UnspscCode : 60131500
Voltage : 100 volts
WarrantyDescription : 90 day
Wattage : 10 watts
