Specification
Brand : ASRTD
BulletPoint : Reed Relays
Color : Radiator DS1 and fan
ExternallyAssignedProductIdentifier : 7330008258206

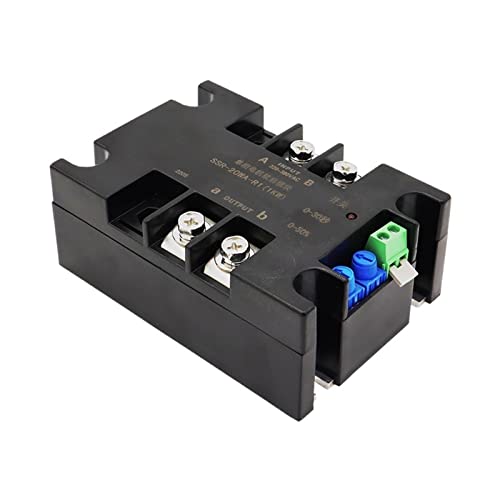

ItemName : Single-Phase Intelligent Motor Soft Starter Soft Start Module Slow Start for Water Pump Motor 2KW4KW6KW8KW Fan (Color : Radiator DS1 and Fan)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : reed-relays
Manufacturer : ASRTD
Material : Copper
ModelName : ASRTD
ModelNumber : ASRTD
NationalStockNumber : 5945-01-386-7420
NumberOfItems : 1
PartNumber : ASRTD
ProductDescription : Reed Relays
Description
Purpose: Water pump, fan, navigation vehicle, ordinary single-phase motor soft, replace adjustable autotransformer start, soft start of frequency converter, etc. Simple wiring, no need to connect bypass contactor
Single motor start module, soft starter, simple wiring, manual or automatic, compatible with 220-380V, 50-60Hz
Voltage compatibility: single-phase 220VAC, two-phase 380VAC, frequency: 50-60Hz
The soft start time is adjustable from 0-30s (soft start time refers to the whole process 0-220V, 0-380V)
The initial voltage is adjustable from 0-50% to the rated voltage (220V-380V)
There are two ways to use:
1. When the switch is closed, the main power supply is energized and the soft start starts
2. Use the switch to control, close the soft start and start to open the stop
Note: No voltage can be applied to the switch. The default is R1. Please use this module with a heat sink.
SSR-40WA-R1 has soft start without soft stop!!!
SSR-40WA-R2 has soft start and soft stop (start from as much as V stop)!!!
It is recommended that the fan and radiator also be equipped with
1KW-2KW choose Radiator S1 and fan
2KW-4KW choose Radiator DS1 and fan
Specification
Rated current: 10A
Setting current: 10-200A
Rated voltage: 220-380
Scope of application: soft start
Motor power: 1KW-8KW
Dimensions: 110*75*100
Starting boost time: 30S
Contact switching current: 10A
Application: Start
Package Included
1 × Single-phase soft starte
ProductSiteLaunchDate : 2023-11-08T09:15:43.643Z
Size : One Size
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 39121521
