Specification
AssemblyInstructions : Require assembly
Brand : RENFANSHOP
BulletPoint1 : 【DC MOTOR】Motor Replacement Is Dc Motor, Small Mounting Dimensions, Easy to Install,Compact Design,This Recliner Lift Chair Motor Features a Compact Design That Makes It Ideal for Many Applications Either in the Medical or Industrial Sector.
BulletPoint2 : 【DURABLE MATERIAL】The Electric Recliner Adopt for Aluminum Actuator and Durable Pa6 Plastic Housing,Safe and Reliable.
BulletPoint3 : 【APPLICATION】This Power Recliner Lift Chair Linear Actuator Motor Will Open and Close the Lift Mechanism of Power Recliner or Lift Chair.
BulletPoint4 : 【PACKAGES】 1 X Recliner Replacement Motor Actuator 1 X 8-Suffix Ac Line 1 X Dc Line 1 X Power Adapter 1 X Embedded Hand Controller 2 X Pins 2 X Cotter Pins
BulletPoint5 : 【CUSTOMER SERVICE】 We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
ExternallyAssignedProductIdentifier1 : 0796713765953
ExternallyAssignedProductIdentifier2 : 796713765953
FinishType : Finished
FurnitureFinish : Plastic
IncludedComponents : Remote

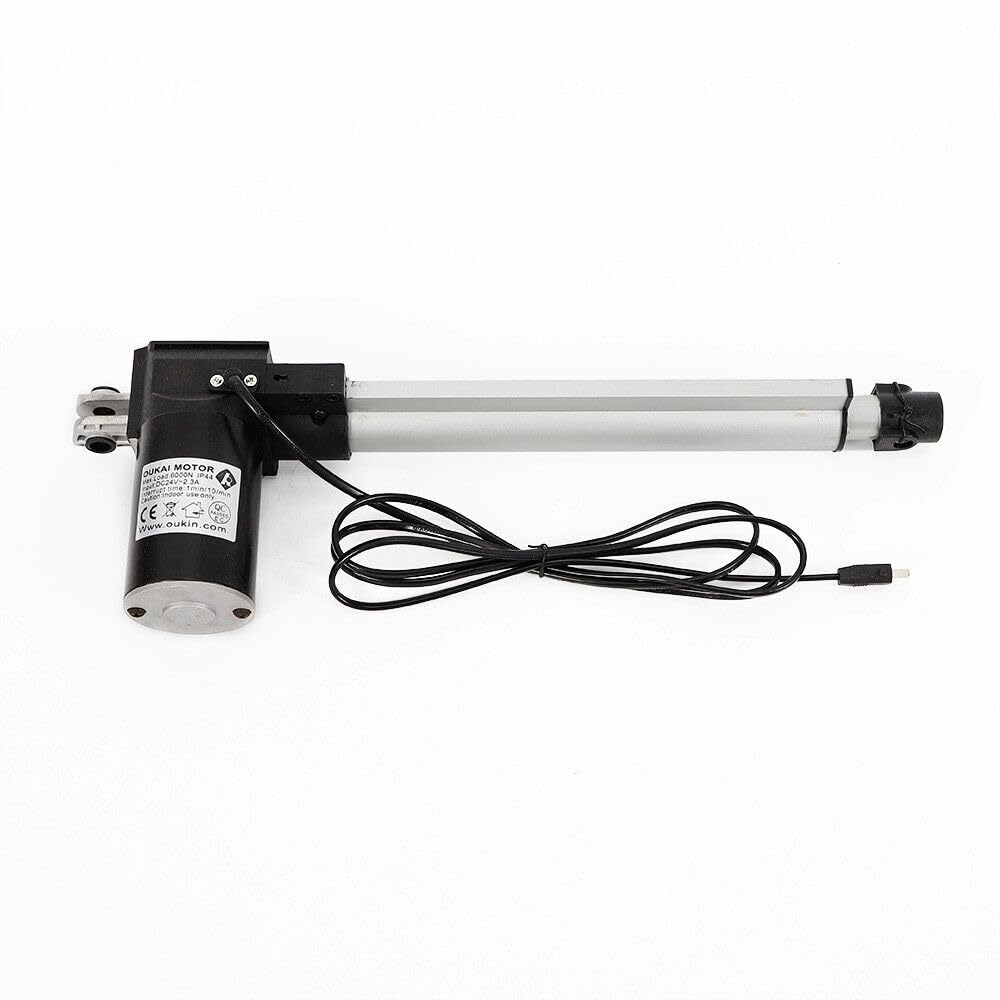

ItemName : RENFANSHOP Power Recliner Motor Actuator, 1000N 250mm Linear Actuator Replacement Chair Lift Linear Actuator Motor 24V for Chair Lift and Recliner Motor
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : recliner-replacement-parts
ItemTypeName : Extension Cords
Manufacturer : RENFANSHOP
Material : Aluminum
ModelName : GLOGLOWra4qonym3b
ModelNumber : GLOGLOWra4qonym3b
PartNumber : GLOGLOWra4qonym3b
Pattern : Solid
ProductDescription : Specifications:
Product: Power Recliner Motor Actuator
Stroke Length: 250mm
Permanent Magnet Dc Motor Drive
Voltage: 24vdc
Maximum Push / Pull: 100kg / 100kg
Minimum Installation Size (Distance Between the Push Holes and the Two Holes Before and After the Return of the Putter):L = S (Stroke) + 175mm;
The Distance Between the Push Rod and the Two Holes Before and After Is Extended to =2xs (Stroke) +175mm
No Load Speed: Maximum 40mm / S
Rated Load Rate: 5mm / S (600kg) -40mm / S (30kg)
Ambient Temperature: -5 C + + 50 C
Standard Protection Level: Ip44
Unextended Dimensions: 250mm + 175mm = 425mm
Extended Size: 250mm + 175mm + 250mm = 675mm

Features:
24vdc Permanent Magnet Motor
Thrust up to 1000 N in Push.and up to 1000 N in Pull.
Elegant and Compact Design with Small Installation Dimensions
Built-in Limit Switches (Not Adjustable)
Aluminium Outer Tube Ø30 Mm
Aluminium Inner Tube Øø24mm
Steel Back Fixture
Standard Protection Class, Ip44
Noise Level 48 Db (a), Actuator Not Loaded.
Duty Cycle, Max 10% or 2 Minutes Continuous Use Followed by 18 Minutes Not in Use.

Option:
Standard Stroke, 25-800 Mm, Can Design As Customer’s Requirement.
Free Load Speed, 6.5mm-45mm/S
Rated Load Speed, 4.5mm-40mm/S

Application:
This Power Recliner Lift Chair Linear Actuator Motor Will Open and Close the Lift Mechanism of Power Recliner or Lift Chair.

Packages:
1 X Recliner Replacement Motor Actuator
1 X 8-Suffix Ac Line
1 X Dc Line
1 X Power Adapter
1 X Embedded Hand Controller
2 X Pins

ProductSiteLaunchDate : 2023-08-11T03:47:17.906Z
Style : Modern
SurfaceRecommendation : Hard Floor
UnitCount : 1
