Brand : PIAOCAIYIN
BulletPoint1 : ✅【Good Material】Electric recliner actuator replacement kit is made of aluminum actuator and durable Pa6 plastic housing, which is excellent in performance, safe and reliable for long term use.
BulletPoint2 : ✅【DC Motor】Motor replacement for recliner replacement parts is made of DC motor with strong power and excellent performance. The compact design has small dimensions and is easy to install.
BulletPoint3 : ✅【Main Parameters】Electric tilt adjuster motor actuator; Stroke length: 250mm; Permanent magnet DC motor drive; Voltage: 24vdc; Maximum thrust/pull: 100kg/100kg; No-load speed: Maximum 40mm/S; Rated load rate: 5mm/S (600kg)-40m/S (30kg).
BulletPoint4 : ✅【Widely Used】Electric recliner motor replacement turns on and off the lifting mechanism of electric tilt or lift chairs, ideal for many applications in medical or industrial fields.
BulletPoint5 : ✅【Features】The standard stroke of power recliner lift chairs motor is 25-800mm. Free load speed, 6.5mm-45mm/S; Rated load speed, 4.5mm-40mm/S.
CareInstructions : Hand Wash Only
Color : Black
ConstructionType : Machine Made
FabricType : Aluminum
IncludedComponents : 1 X Recliner Replacement Motor Actuator 1 X 8-Suffix Ac Line 1 X Dc Line 1 X Power Adapter 1 X Embedded Hand Controller 2 X Pins
IsAssemblyRequired : 1

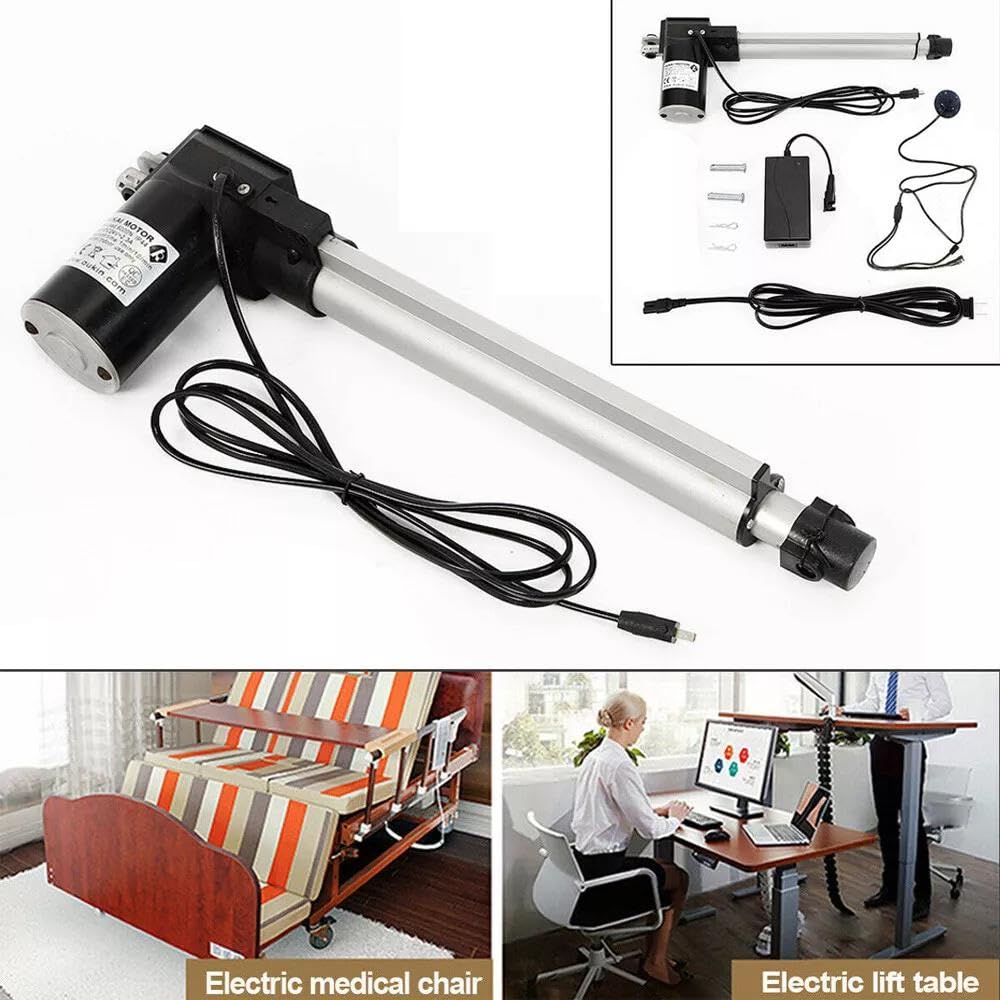

ItemName : PIAOCAIYIN 24V 250mm Power Recliner Motor Replacement Kit, Actuator Lift Mechanism Electric Chair Parts, Lift Chair Replacement Parts, 100kg Max Push/Pull
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 15 centimeters
ItemShape : Rectangular
ItemTypeKeyword : recliner-replacement-parts
ItemTypeName : Power Recliner Motor Replacement Kit
Manufacturer : PIAOCAIYIN
Material : Aluminum
ModelName : Power Recliner Motor Replacement Kit
ModelNumber : Power Recliner Motor Replacement Kit
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : Power Recliner Motor Replacement Kit
Pattern : Solid
PileHeight : Medium Pile
ProductDescription :

Specifications:

Product: Power Recliner Motor Actuator

Stroke Length: 250mm

Permanent Magnet Dc Motor Drive

Voltage: 24vdc

Maximum Push / Pull: 100kg / 100kg

Minimum Installation Size (Distance Between the Push Holes and the Two Holes Before and After the Return of the Putter):L = S (Stroke) + 175mm;

The Distance Between the Push Rod and the Two Holes Before and After Is Extended to =2xs (Stroke) +175mm

No Load Speed: Maximum 40mm / S

Rated Load Rate: 5mm / S (600kg) -40mm / S (30kg)

Ambient Temperature: -5 C + + 50 C

Standard Protection Level: Ip44

Unextended Dimensions: 250mm + 175mm = 425mm

Extended Size: 250mm + 175mm + 250mm = 675mm

Features:

24vdc Permanent Magnet Motor

Thrust up to 1000 N in Push.and up to 1000 N in Pull.

Elegant and Compact Design with Small Installation Dimensions

Built-in Limit Switches (Not Adjustable)

Aluminium Outer Tube Ø30 Mm

Aluminium Inner Tube Øø24mm

Steel Back Fixture

Standard Protection Class, Ip44

Noise Level 48 Db (a), Actuator Not Loaded.

Duty Cycle, Max 10% or 2 Minutes Continuous Use Followed by 18 Minutes Not in Use.

Option:

Standard Stroke, 25-800 Mm, Can Design As Customer’s Requirement.

Free Load Speed, 6.5mm-45mm/S

Rated Load Speed, 4.5mm-40mm/S

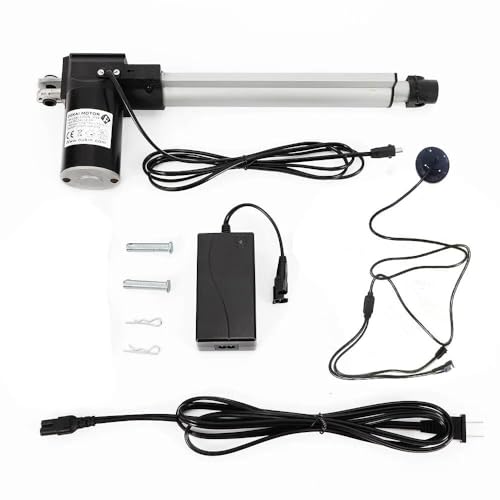

 Packages:

 1 X Recliner Replacement Motor Actuator

 1 X 8-Suffix Ac Line

 1 X Dc Line

 1 X Power Adapter

 1 X Embedded Hand Controller

 2 X Pins
