Specification
AssemblyInstructions : Require assembly
Brand : KinHall
BulletPoint1 : ✅【Specifications】—Stroke Length: 250mm, Voltage: 24VDC, Max Push/Pull: 100KG/100KG, Ambient Temperature: -5 C++ 50 C, Standard Protection Level: IP44.
BulletPoint2 : ✅【Powerful Recliner Actuator】- This 24VDC permanent magnet motor actuator can push to 1000 N and pull to 1000 N, suitable for powering any recliner.
BulletPoint3 : ✅【Easy to Use】- This electric recliner lift linear actuator motor will turn on and off the lift mechanism of an electric recliner or chair lift, connected to the motor handle via a 5-pin connector, the hand control and the power transformer via a standard 2-pin connection device for easy operation.
BulletPoint4 : ✅【Widely used】- Electric sofa, massage chair, TV lift, sofa, double sofa, combination reclining chair, reclining chair, sofa, sectional sofa.
BulletPoint5 : ✅【WHAT YOU WILL GET】—1 x Recliner Replacement Motor Actuator, 1 x 8-Suffix AC Cable, 1 x DC Cable, 1 Power Adapter, 1 x Embedded Hand Control, 2 Pins, 2 Openings pin.
CareInstructions : Wipe Clean
Color : Black
FabricType : No
IncludedComponents : no
IsAssemblyRequired : 1
IsElectric : 1

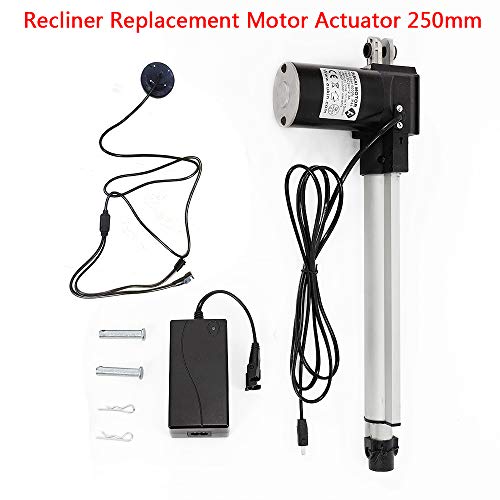

ItemName : KinHall Electric Recliner Motor Actuator Replacement Chair Lift Linear Actuator Motor 24V for Chair Lift and Recliner Motor
ItemPackageDimensions_Height : 22.7 centimeters
ItemPackageDimensions_Length : 7.3 centimeters
ItemPackageDimensions_Width : 19.2 centimeters
ItemShape : no
ItemTypeKeyword : recliner-replacement-parts
ItemTypeName : Motor Chaise Longue Actuator
Manufacturer : KinHall
Material : no
MaximumWeightRecommendation : 165.34 pounds
ModelName : Motor Chaise Longue Actuator
ModelNumber : HG-WMTZXL-1351-yjh
NumberOfItems : 1
PartNumber : 11
Pattern : Solid
ProductDescription :

Specification:

Product: Power Recliner Motor Actuator

Stroke length: 250mm

Unfolded size: 250mm + 175mm = 425mm

Extended size: 250mm + 175mm + 250mm = 675mm

 Permanent magnet DC motor drive;

 Voltage: 24VDC

Maximum push/pull: 100KG/100KG

Minimum installation size (the distance between the two holes before and after the push rod returns): L=S (stroke) +175mm;

The distance between the push rod and the front and rear holes is extended to = 2XS (stroke) + 175mm

No-load speed: maximum 40mm/S

Rated load rate: 5mm / S (600KG) -40mm / S (30KG)

 Ambient temperature: -5 C + + 50 C

Standard protection grade: Ip44

Net weight: 3.3kg

Gross weight: 3.66kg

feature:

24VDC permanent magnet motor

 Push force up to 1000 N, pull force up to 1000 N.

Elegant and compact design, small installation size

Built-in limit switch (not adjustable)

Aluminum outer tube Ø30 mm

Aluminum inner tube Øø24mm

Steel back clamp

Standard protection grade, IP44

 Noise level 48 dB (A), actuator not loaded.

 Duty cycle, 10% max or 2 minutes continuous use, then 18

 Minutes are not used.

Options:

Standard stroke, 25-800mm, can be designed according to customer requirements.

Free loading speed, 6.5mm-45mm/s

Rated load speed, 4.5mm-40mm/s

application

This electric recliner chair lift linear actuator motor will turn on and off the lift mechanism of the electric recliner or chair lift.

combo:

1 x recliner replacement motor actuator

1 x 8-suffix AC cable

1 x DC wire

 1 power adapter

1 x Embedded Hand Control

2 pins

2 cotter pins

ProductSiteLaunchDate : 2022-08-02T01:14:30.108Z
RecliningPositionCount : 2.0-3.0
RecommendedUsesForProduct : Elderly Care, Mobility Support, Post-Surgical Recovery
RecommendedUsesForProduct1 : Relaxing
RecommendedUsesForProduct2 : Dining
RecommendedUsesForProduct3 : Gaming
RecommendedUsesForProduct4 : Sleeping
RecommendedUsesForProduct5 : Office
RoomType1 : Living Room
RoomType2 : Office
RoomType3 : Bedroom
Style : Classic
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SurfaceRecommendation : Hard Floor
UnitCount : 1
