Specification
AgeRangeDescription : Adult
AssemblyInstructions : Require Assembly
Brand : Gdrasuya10
BulletPoint1 : ✅【Product Parameter】: Item type: recliner replacement motor actuator. Stroke length: 250mm. Voltage: 24vdc. Maximum push / pull: 100kg / 100kg. Standard protection level: ip44. Unextended dimensions: 250mm + 175mm = 425mm. Extended size: 250mm + 175mm + 250mm = 675mm.
BulletPoint2 : ✅【High Quality】: The electric recliner adopts aluminum actuator and durable pa6 plastic shell, which is safe and reliable.
BulletPoint3 : ✅【Powerful DC Motor】: Motor replacement is DC motor, small mounting dimensions, easy to install,compact design. This recliner lift chair motor features a compact design that makes it ideal for many applications either in the medical or industrial sector.
BulletPoint4 : 【Wide Application】: This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Connects to motor handset hand control via 5 pin style connector, and connects to the power transformer via the standard 2 pin style connector.
BulletPoint5 : ✅【Service Guarantee】: After receiving the product, if you have any questions about lift chairs motor actuator, please contact us in time, we will do our best to solve it for you.
ConnectorType : 2-Pin
CurrentRating : 2 amps
ExternallyAssignedProductIdentifier : 9099984161457
FurnitureFinish : Plastic
InputVoltage : 120 volts_of_alternating_current
ItemName : Gdrasuya10 Recliner Lift Chairs Motor Actuator Electric Power Recliner Replacement Motor 24VDC Lift Linear Actuator Motor with Hand Controller 250MM
ItemTypeKeyword : recliner-replacement-parts
Manufacturer : Botshop
Material1 : Plastic
Material2 : Aluminum
Material3 : Alloy Steel
ModelNumber : Limoss MD-140 Okin 29V Power Supply
MountingType : Wall Mount
NumberOfItems : 1
NumberOfPorts : 1
OutputCurrent : 2 amps
OutputVoltage : 29 volts
PartNumber : HG-WMTZXL-1351
Pattern : Solid
PowerSourceType : Corded Electric
ProductDescription :

Product description:

Specifications:

Product: Power recliner motor actuator

Stroke length: 250mm

Permanent magnet DC motor drive

Voltage: 24VDC

Maximum push / pull: 100KG / 100KG

Minimum installation size (distance between the push holes and the two holes before and after the return of the putter):L = S (stroke) + 175mm;

The distance between the push rod and the two holes before and after is extended to =2XS (stroke) +175mm

No load speed: maximum 40mm / S

Rated load rate: 5mm / S (600KG) -40mm / S (30KG)

Ambient temperature: -5 C + + 50 C

Standard protection level: IP44

Unextended dimensions: 250mm + 175mm = 425mm

Extended size: 250mm + 175mm + 250mm = 675mm

Features:

24VDC permanent magnet motor

Thrust up to 1000 N in push.and up to 1000 N in pull.

Elegant and compact design with small installation dimensions

Built-in limit switches (not adjustable)

Aluminium outer tube Ø30 mm

Aluminium inner tube ØØ24mm

Steel back fixture

Standard protection class, IP44

Noise level 48 dB (A), actuator not loaded.

Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use.

Option:

Standard stroke, 25-800 mm, can design as customer’s requirement.

 Free load speed, 6.5mm-45mm/s

 Rated load speed, 4.5mm-40mm/s

Application:

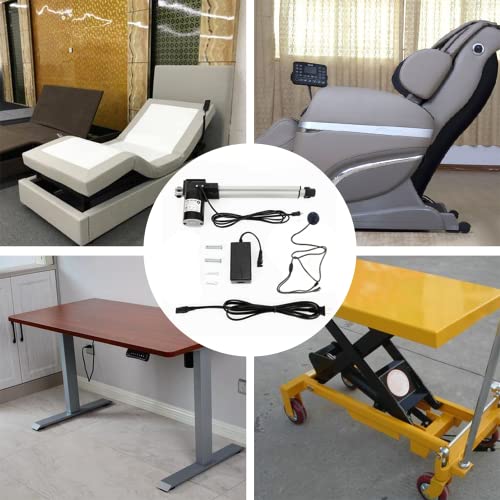

This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair.
ProductSiteLaunchDate : 2022-05-19T03:10:23.350Z
Size : 250mm
SpecificationMet : OCP
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SurfaceRecommendation : Hard Floor
TotalUsbPorts : 1
UnitCount : 1
WarrantyDescription : Warranty: 30 Days Refund - 24 Months Exchange
Wattage : 50 watts
