Product Information
Editorial Review

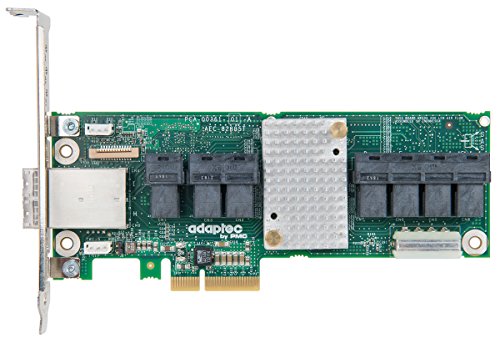

The 12Gb/s Adaptec 82885T SAS expander card offers a scalable connectivity / fan-out option for additional drives when used in conjunction with a SAS RAID adapter or SAS HBA. The 82885T SAS Expander Card offers 36 ports in a low-profile MD2 form factor with up to 20 internal ports for direct attach drive connectivity, 4 or 8, internal ports for connectivity to a RAID adapter or HBA, and 8 external ports for external storage expansion.Flexibility of ConfigurationThe 82885T mounts internally to any available PCIe slot, away from the backplane, and features mini-SAS HD connectors out the top for added cabling flexibility in dense server environments. The 82885T enables a low cost drive expansion solution when mated with a RAID adapter or HBA. The expander draws power from the PCIe slot (requires 4 or more lanes), but there is no data transfer to the slot. Alternatively, power can also be supplied to the expander card through a standard 4-pin auxiliary power connector.Enclosure Management Support The 82885T supports SGPIO and SES2 enclosure management, allowing enclosure information to be routed from all daisy-chained 82885T cards to the HBA or RAID adapter. All device and slot mapping information is provided to the HBA or RAID adapter by the last 82885T card in the chain.Universal Compatibility with Existing Storage Infrastructure The 82885T is fully compatible with Adaptec Series 8, Series 7
Specification
AspectRatio : Unknown
Binding : Personal Computers
Brand : Adaptec
EAN : 0760884157350
Label : ADAPTEC
Manufacturer : ADAPTEC
Model : 2283400-R
PackageDimensions_Weight : 0.82 pounds
PackageDimensions : L:11.97 X W:7.68 X H:1.81
ProductGroup : Personal Computer
ProductTypeName : COMPUTER_COMPONENT
Publisher : ADAPTEC
Studio : ADAPTEC
Title : Adaptec Expander Card 82885T Single 2283400-R
The 12Gb/s Adaptec 82885T SAS expander card offers a scalable connectivity / fan-out option for additional drives when used in conjunction with a SAS RAID adapter or SAS HBA. The 82885T SAS Expander Card offers 36 ports in a low-profile MD2 form factor with up to 20 internal ports for direct attach drive connectivity, 4 or 8, internal ports for connectivity to a RAID adapter or HBA, and 8 external ports for external storage expansion.Flexibility of ConfigurationThe 82885T mounts internally to any available PCIe slot, away from the backplane, and features mini-SAS HD connectors out the top for added cabling flexibility in dense server environments. The 82885T enables a low cost drive expansion solution when mated with a RAID adapter or HBA. The expander draws power from the PCIe slot (requires 4 or more lanes), but there is no data transfer to the slot. Alternatively, power can also be supplied to the expander card through a standard 4-pin auxiliary power connector.Enclosure Management Support The 82885T supports SGPIO and SES2 enclosure management, allowing enclosure information to be routed from all daisy-chained 82885T cards to the HBA or RAID adapter. All device and slot mapping information is provided to the HBA or RAID adapter by the last 82885T card in the chain.Universal Compatibility with Existing Storage Infrastructure The 82885T is fully compatible with Adaptec Series 8, Series 7
Specification
AspectRatio : Unknown
Binding : Personal Computers
Brand : Adaptec
EAN : 0760884157350
Label : ADAPTEC
Manufacturer : ADAPTEC
Model : 2283400-R
PackageDimensions_Weight : 0.82 pounds
PackageDimensions : L:11.97 X W:7.68 X H:1.81
ProductGroup : Personal Computer
ProductTypeName : COMPUTER_COMPONENT
Publisher : ADAPTEC
Studio : ADAPTEC
Title : Adaptec Expander Card 82885T Single 2283400-R
