Specification
AgeRangeDescription : Adult
Brand : SPARKHOBBY
BulletPoint : Multi-Protocol : The internal RF system features the CC2500, NRF2401, A7105 and CYRF6936 RF Chip modules all integrated on one board. JP4-in-1 Multi-protocol module included. DSM2/X, FrSKY, SFHSS, FlySky, FlySky AFHDS2A, Hubsan etc. The Jumper internal RF module will support firmware updates directly from the radios Operating system
BulletPoint1 : The upgraded power supply scheme, using synchronous rectification vehicle-grade dcdc scheme, no longer has diagonal stripes (can be directly compared with the common image transmission in the market), very clear, much less interference, and improved image quality, and the voltage output range is expanded to 36v Can support 2s-8s battery direct power supply.
BulletPoint2 : ​​​​​​​The power and frequency can be adjusted through the smartaduio protocol.The output power can be adjusted through pwm, and the power can be adjusted in real time during flight.
BulletPoint3 : Power and frequency adjustment use buttons, which can be modified within one minute before power on, and the rear buttons are locked to prevent interference and false triggering during flight.
BulletPoint4 : The circuit board directly comes with four fixing ears for easy fixing. It can also be broken if not needed.
BulletPoint5 :
ButtonQuantity : 4
Color : BLACK
CompatibleDevices : RC Car
CompatiblePhoneModels : Transmitter
ConnectivityTechnology : Radio Frequency
ControllerType : Button Control
CpsiaCautionaryStatement : no_warning_applicable
ExternallyAssignedProductIdentifier : 7545069467812
ExternallyAssignedProductIdentifier1 : 744915189312
ExternallyAssignedProductIdentifier2 : 0744915189312
GpsrSafetyAttestation : 1
IncludedComponents : 1

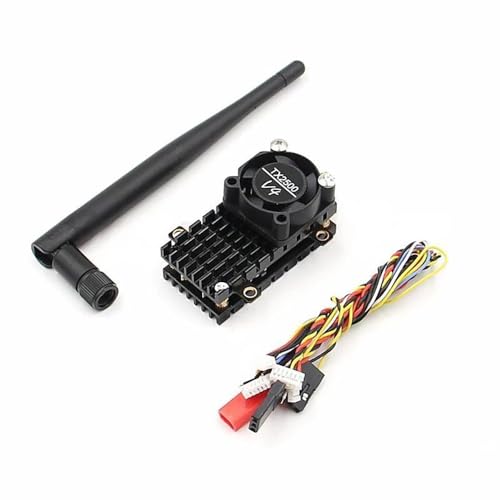

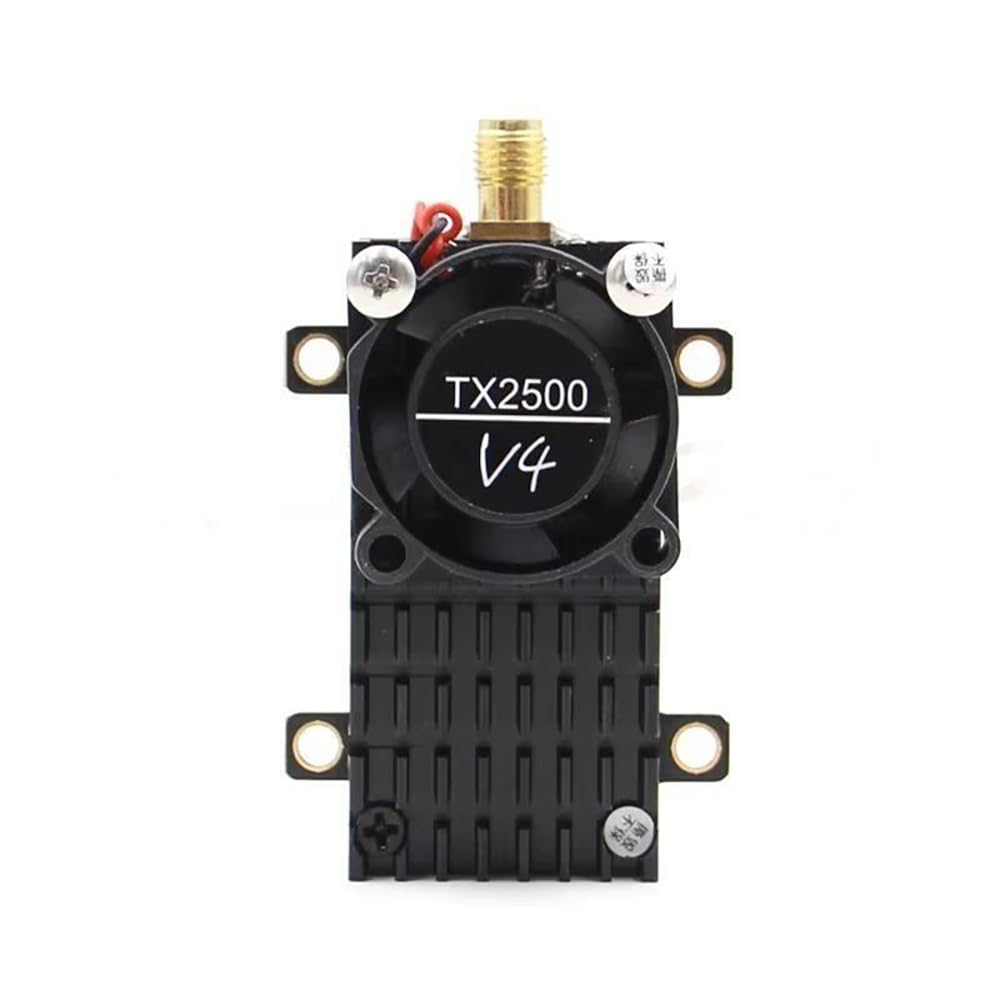

ItemName : SPARKHOBBY TX2500 V4 VTX 5.8GHz Super Power 2000MW FPV Wireless-Transmitter with Cooling Fan for RC FPV Fixed-Wing Drones Over 20Km Range (TX2500 V4)
ItemPackageDimensions_Height : 2.4 inches
ItemPackageDimensions_Length : 7.8 inches
ItemPackageDimensions_Width : 5.9 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-radio-transmitters
Manufacturer : SPARKHOBBY
ManufacturerMinimumAge : 8
Material : 金属
ModelName : MG41 + R4A3 Transmitter Receiver Set V5 for FCX18 LC80, FCX18 Chevrolet K10
ModelNumber : C2263-NEW
NumberOfItems : 1
PartNumber : TX2500 001
ProductDescription : Item: TX2500 V4 image transmission
Parameters:
Weight: 31.7g
Size: 50*25*26.5mm
5.8GHz Video/Audio Sync Transmitter (PAL and NTSC Compatible)
Compact structure, small size, high transmit power
Using large-scale integrated circuits and advanced components, high reliability
Working voltage: DC7V-36V (2-8S)
64 working channels, button select setting
Built-in frequency phase-locked loop, low harmonic radiation, high reliability, stability
Using digital phase-locked loop circuit, no temperature drift phenomenon

Features:
The power supply is with anti-reverse connection, and the 5v output of the power supply has a current limit.
The new upgrade is a silicone wire, the wire is soft, not easy to break, and can pass a large current.
This module has a double-sided radiator, and one side is equipped with a cooling fan, which has excellent heat dissipation.
Three schemes of actual wiring diagram:

Wiring scheme 1:
It is suitable for micro camera with voltage of 3.3-5v and current less than 100mA. If there is no condition to verify that the camera meets the above voltage and current conditions, this wiring method is prohibited, otherwise there is a great risk of damaging the transmitter.

Wiring scheme 2:
It is suitable for 5-25v wide voltage camera, and this scheme is universal.

Wiring scheme 3:
It is suitable for the camera of scheme 2 which cannot be used when the voltage is low and scheme 1 cannot be used when the current is high, for example, a moving camera. This wiring scheme is universal and basically applicable to all cameras. The disadvantage is that the wiring is a little more complicated.
ProductSiteLaunchDate : 2024-12-26T06:20:16.554Z
RecommendedUsesForProduct : Transmitter
Reusability : Rechargeable
SafetyWarning : Devices and accessories are not toys. Do not allow young children to play with the equipment as they may injure themselves, others or damage the equipment. Keep the device and all its parts and accessories out of reach of young children.
Style : TX2500 V4
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
SupportedDevicesQuantity : 1
TargetAudienceKeyword : boys
TargetAudienceKeyword1 : Boys
TargetAudienceKeyword2 : Unisex Adult
TargetAudienceKeyword3 : Unisex Children
UnspscCode : 60140000
WarrantyDescription : 3 MONTHS
