Specification
AudioOutputMode : Stereo
Brand : Xiangtat
BulletPoint1 : Smart audio support. This FPV VTX supports SmartAudio, so you can change VTX settings in Betaflight OSD, such as channels and output.
BulletPoint2 : One button frequency and power setup. If you don’t like smart audio, you can change of channel, band, and power by only one button on this FPV VTX.
BulletPoint3 : Built-in Mic. It is a good thing about FPV VTX with a built-in microphone. It allows you to hear your quad though it flies too far.
BulletPoint4 : Wide voltage input. 7-28V input. 2-6s battery is available. 5V output. This FPV VTX provides 5V output to your FPV camera.
BulletPoint5 : 200mW/400mW/800mW/1000mW power switchable.
Color : Pr4114
CompatibleDevices1 : Speaker
CompatibleDevices2 : Smartphone
ConnectivityTechnology : RCA
ConnectorType : RCA
ControlMethod : remote
ExternallyAssignedProductIdentifier : 7619655615960
ExternallyAssignedProductIdentifier1 : 762210656902
ExternallyAssignedProductIdentifier2 : 0762210656902
IncludedComponents : Transmitter
ItemName : RUSHFPV OverShoot 3.3G 4W VTX Supports IRC Tramp Protocol 7-30V Video Transmitter 3.3GHz Glasses VRX Module FPV Long Range Drone (3.3G VRX)
ItemPackageDimensions_Height : 7.6962 centimeters
ItemPackageDimensions_Length : 2.6924 centimeters
ItemPackageDimensions_Width : 6.096 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-radio-transmitters
Manufacturer : Xiangtat
ModelNumber : Transmitter
NumberOfBoxes : 1
NumberOfItems : 1
OutputPower : 1000 milliwatts
PartNumber : Transmitter
PowerSourceType : Corded Electric
ProductDescription : Features

-Designed for long-range fights, up to 4W transmitting power,and provide multi-level adjustment.

-Eficient PA and power calibration to ensure power consistency across all channels.

-Customized digital PLL circuit, chip level integration, no frequency drift.

-Aluminum alloy three-layer shell structure and large centrifugal fan provide sufficient heat dissipation to ensure stable output of transmitting power.


General Characteristics

Frequency band : 3170-3470MHz

Freque ncy predsion : ±200KHz(Typ.)

Channel customer: 16

S/N(For±3MHz) >55dBc

Modulation type: FM

Antenna Port: SMA 50 Ohms

Frequency control:PLL

Video input level : 1V±0.2Vp-p (typ.)

Frequency stability :±100KHz(Typ.)

Operating Temperature :-10℃-+70℃

Power Supply :DC 7-30V

Control Protocol :IRC Tramp


Antenna must be connected before use! Otherwise there is a risk of damage to the product.

The product needs to be mounted reliably, avoiding vibration and high temperatures.

The product has a built-in power filler, but sill need to avoid excessive power supply interference.


Settings

Controlled using a single button, the button integrates RGB lighting. blue for band, red for channel, and green for power level.

When there is no operation,the RGB LED blinks cydically, the number of times the RGB blinks represents the current VTX status (when the green LED is always on, the VTX enters PITMODE).

Long press the button to enter VTX setting, at this time the RGB lights are lit altemately, release the button under the corresponding color light to enter the corresponding function setting. At this time. short press the button to adjust the value. F

or setup via the flight controller, connect the DATA pin and use the IRC Trump protocol.


Transmitter antenna

Polarzation :RHCP

Gain :1.85 dBi

Bandwidth : 3170-3470MHz

V.S.W.R <1.9

Radiation pattern : Omni-directional

Cable : RG402-SMA

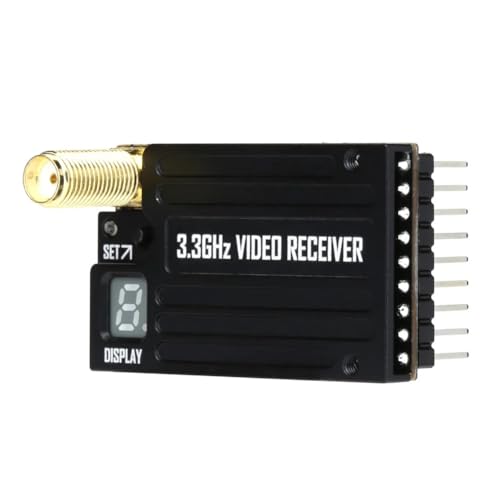

3.3GHz Glasses VRX Module

Features

-Compact unit design and covered with aluminum alloy housing, compatible with mainstream video glasses for flush mounting.

-High-performance RF circuitry with full-range sensitivity below-95dB.

-Supports 3.3GHz BAND A and B, providing operating frequency from 3170-3470MHz.

-Built-in digital tube displays current operating status.


Specification

Video Output format:CVBS PAL / NTSC

Frequency band: 3170-3470MHz

Channel Frequency:BAND A 3330 3350 3370 3390 3410 3430 3450 3470

BAND B 3170 3190 3210 3230 3250 3270 3290 3310

Receiving Sensitivity ≤-95dBm

Input Voltage: DC 5V

Operating Temp.: -10℃-+60 C

Operating humidity: 85% RH

Dimension: 42mm x 25mm x 26mm

Weight : 9.5g (VRX Only)
ProductSiteLaunchDate : 2019-10-02T14:25:20.469Z
Size : One Size
Style : 3.3G VRX
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SurroundSoundChannelConfiguration : 2.0
UnitCount : 1
UnspscCode : 45121500
WarrantyDescription : Transmitter
WirelessCommunicationTechnology : RF
