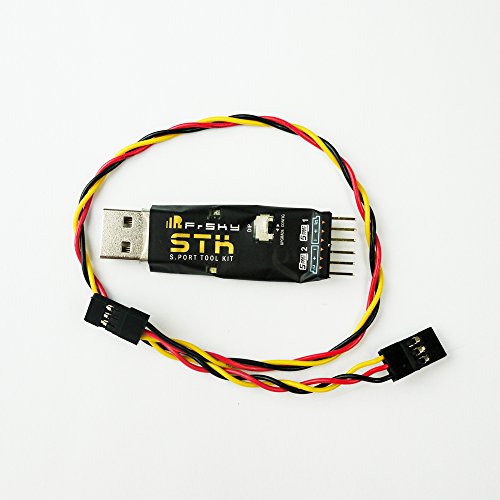

Editorial Review S.Port 1 (upper) - Monitor, receive and set the telemetry data for S6R (with DIP switch to the upper side) S.Port 2 (down) - Upgrade S.Port products (with DIP switch to the down side) How to upgrade S.Port products Driver: frsky-rc/download/view.php?sort=Tool&down=160&file=Driver-Windows XP/7/8/Vista frsky_update_Sport.exe: frsky-rc/download/view.php?sort=Tool&down=115&file=Upgrade Lite-S.Port Telemetry Steps: Put the DIP switch to the down side +' connect the USB port of STK to the USB port of PC +' run "frsky_update_Sport.exe", match the COM port number to the one assigned by PC. Click "File" button and select FW version +' connect the 3-wire S.Port cable to the S.Port 2 of STK and S.Port of upgraded product +' After "device found, please click Download", then click the "Download" button to start the upgrade +' Exit the process by clicking "End" button after "Firmware is updated". Refer to S6R manual from FrSky website download section for how to monitor, receive and set the telemetry data: frsky-rc/download/index.php?sort=&cate_id=0&pro_id=167
Specification Binding : Toy Brand : FrSky Label : FrSky Manufacturer : FrSky ProductGroup : Toy ProductTypeName : TOYS_AND_GAMES Publisher : FrSky Studio : FrSky Title : FrSky STK Tool
