Specification
BatteriesIncluded : 1
Brand : Mcbazel
BulletPoint1 : Test suitable antenna for walkie talkie use. High sensitivity. Frequency bandwidth: 1000KHz to 3000MHz. Measurement of radio field strength. The pointer amplitude can be adjusted (to protect the meter)
BulletPoint2 : It requires Amp to run the meter. Please ensure that the whip antenna is parallel with the polarity of the antenna you are reading.
BulletPoint3 : Please use different frequency antennas to test signals with different frequencies for better effect and sensitivity. The pointer amplitude can be adjusted (to protect the meter).
BulletPoint4 : If the field strength indicator indicates that the maximum range is exceeded, the "amplitude adjustment" can be adjusted to let the pointer indicate the appropriate position.
BulletPoint5 : If you have any problem with this unit, please check the appropriate section of this manual. If the problem is not mentioned, please feel free to contact us.
Color : Black
ExternallyAssignedProductIdentifier : 4895232007202
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryInEquipment
Hazmat11 : DE_SmallLithiumIonBatteryInEquipment
Hazmat12 : EG_SmallLithiumIonBatteryInEquipment
Hazmat13 : ES_SmallLithiumIonBatteryInEquipment
Hazmat14 : FR_SmallLithiumIonBatteryInEquipment
Hazmat15 : GB_SmallLithiumIonBatteryInEquipment
Hazmat16 : IE_SmallLithiumIonBatteryInEquipment
Hazmat17 : IN_SmallLithiumIonBatteryInEquipment
Hazmat18 : IT_SmallLithiumIonBatteryInEquipment
Hazmat19 : JP_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : MX_SmallLithiumIonBatteryInEquipment
Hazmat21 : NL_SmallLithiumIonBatteryInEquipment
Hazmat22 : PL_SmallLithiumIonBatteryInEquipment
Hazmat23 : SA_SmallLithiumIonBatteryInEquipment
Hazmat24 : SE_SmallLithiumIonBatteryInEquipment
Hazmat25 : SG_SmallLithiumIonBatteryInEquipment
Hazmat26 : TR_SmallLithiumIonBatteryInEquipment
Hazmat27 : US_SmallLithiumIonBatteryInEquipment
Hazmat28 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryInEquipment
Hazmat6 : AU_SmallLithiumIonBatteryInEquipment
Hazmat7 : BE_SmallLithiumIonBatteryInEquipment
Hazmat8 : BR_SmallLithiumIonBatteryInEquipment
Hazmat9 : CA_SmallLithiumIonBatteryInEquipment

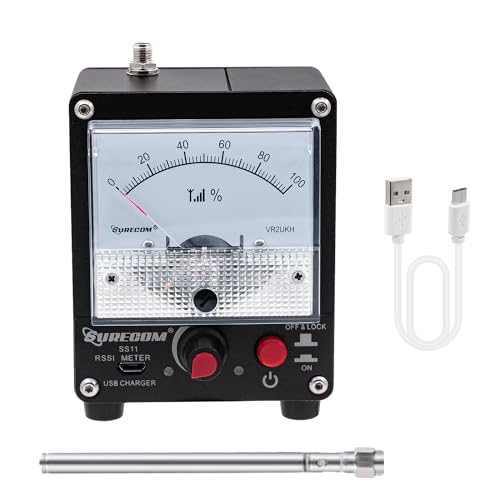

ItemName : Mcbazel Surecom SS11 Portable Field Strength Power Test Meter RF Signal Strength Test Meter with Antenna
ItemPackageDimensions_Height : 14.5 centimeters
ItemPackageDimensions_Length : 7.6 centimeters
ItemPackageDimensions_Width : 14.1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : radio-antennas
Manufacturer : Mcbazel
Material : iron
ModelNumber : msc-030114
NumberOfChannels : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
PartNumber : msc-030114
ProductDescription : -Frequency Range: 100KHz-3GHz (with antenna)
-RF Sensitive: Max -40.97dbmv
-Antenna (in) Interface: SMA Female
-Battery built-in: 200mah Rechargeable Li-ion Battery
-Size without Socket: 75 x 100 x 64mm
-Built-in automatic damping function, which is the buffer function, prevents the needle from swinging too fast to cause damage.

Instructions for use:
Before use:
-Please rotate the "amplitude adjustment" to the left most end. The length of the antenna to be pulled depends on the frequency of the test. It is better to have 1/4 wave as much as possible.
-The handheld walkie-talkie is about one meter away from the field strength meter. Don't be too close! In order to avoid the signal is too strong to burn the field strength meter!
-Press the walkie-talkie PTT button to make the walkie-talkie enter the launch state. At this time, the pointer of the field strength meter should have a signal indication. The stronger the signal, the greater the indication!

Method for testing the maximum gain point of an antenna:
1. In order to change the frequency conveniently and quickly, you should use the keyboard to set the frequency walkie-talkie manually.
2. Link the walkie-talkie and antenna feeders, place the field strength meter near the antenna (depending on the environment). Place it within the vertical radiation angle of the antenna as much as possible, and the antenna planning method is best.
3. Set the frequency of the walkie-talkie, press the launch button, observe the meter reading, and register the meter reading. Then set the walkie-talkie to other frequency points, let the walkie-talkie enter the launch state again, observe the meter reading and then compare the readings of each frequency point! You can know the best frequency/segment of the antenna under test!

Package:
1x SS-11 Portable Field Strength Test Meter
1x SMA MALE UHF Telescopic Antenna
1x Micro USB Cable
1x English Instructions
ProductSiteLaunchDate : 2021-04-17T07:41:53.162Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 43221700
