Specification
Brand : JMT
BulletPoint1 : LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive) RF transceiver channel, which can achieve accurate measurement of near, medium and long range multi-target distance, speed and orientation in the detection area.
BulletPoint2 : Mainly used in high-speed intersections, non-motorised lanes, motorised lanes and intelligent driving scenarios, to achieve the state of the rear vehicle detection.
BulletPoint3 : Modulation mode: FMCW. Detection angle: ±20. default 2.54mm x 6Pin.
BulletPoint4 : Power Requirement: 5V(Typ.) / power supply capacity >300mA.
BulletPoint5 : Detection distance: Maximum sensing distance 100m.
BulletPoint6 : Data format: serial port ASCII output, GPIO level output.
Color : Module Test Kit
CompatibleDevices : Jeep Grand Cherokee (2016-2019)
ExternallyAssignedProductIdentifier : 4979054221043
FrequencyBandsSupported : 10.525 GHz
GpsrSafetyAttestation : 1
ItemName : JMT LD2451 24G Vehicle Status Monitoring Sensor Module Vehicle Ranging and Speed Measurement Millimeter Wave Ra·DAR Adapter (Module Test Kit)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : radar-detectors
Manufacturer : HI-LINK
ModelNumber : 68418245AA
NumberOfItems : 1
PartNumber : F52683
PowerSourceType : Hardwired

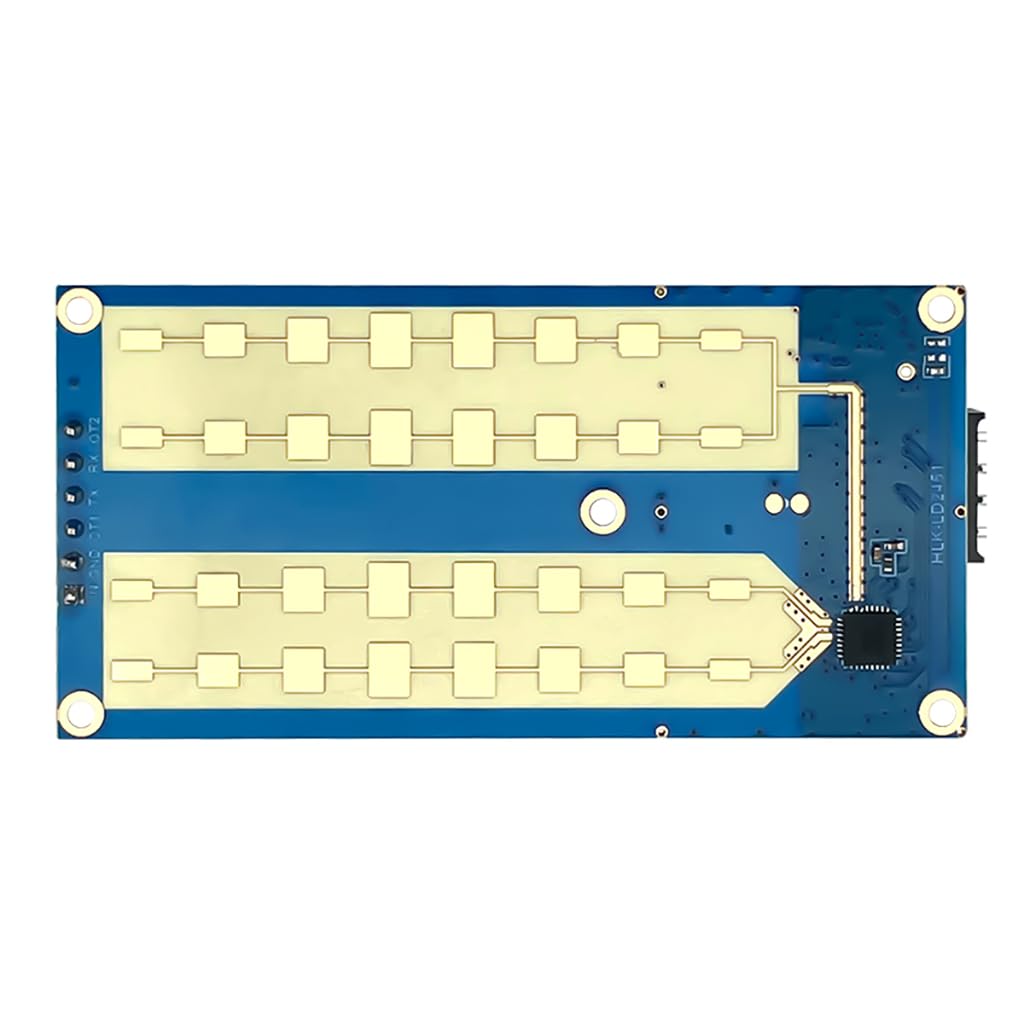

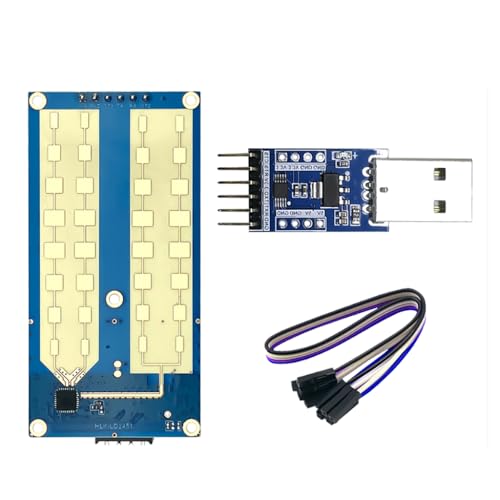

ProductDescription : JMT HLK-LD2451 24G Vehicle Status Monitoring Sensor Module Vehicle Ranging and Speed Measurement Millimeter Wave Ra·dar Adapter


Product Description:
LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive) RF transceiver channel, which can achieve accurate measurement of near, medium and long range multi-target distance, speed and orientation in the detection area.
Mainly used in high-speed intersections, non-motorised lanes, motorised lanes and intelligent driving scenarios, to achieve the state of the rear vehicle detection.


Product features
Frequency: 24G-24.25GHz.
Sweep bandwidth: 250MHz (meet CE/FCC certification standards).
Modulation mode: FMCW.
Power Requirement: 5V(Typ.) / power supply capacity >300mA.
Exterior dimension: 35×70mm.
Detection angle: ±20.
Detection distance: Maximum sensing distance 100m.
Environment Temperature: -40℃~+85℃.
Data format: serial port ASCII output, GPIO level output.
Package: default 2.54mm x 6Pin

ProductSiteLaunchDate : 2024-07-18T07:00:37.012Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 46171600
Voltage : 5 volts
WarrantyDescription : 1
