Specification
Brand : EC Buying
BulletPoint1 : Advanced 24G radar sensor module with precise 1 receiving 1 antenna and 6.5 m detection range, perfect for human body induction lamp control and intelligent household appliance applications
BulletPoint2 : Compact and easy-to-use Rd-03 module with 2.54mm pin and ± 60 degree detection angle, ideal for advertising screen and intelligent lighting installations
BulletPoint3 : High-performance radar supports ISM band and intelligent tuning via UART, ensuring reliable life safety protection and intelligent security functions
BulletPoint4 : Versatile mounting options and accurately identify capabilities make this radar sensor module perfect for new energy charging/parking monitoring facilities applications
BulletPoint5 : Real-time detection result reporting and strong anti-interference features make this radar sensor module an essential component for smart home devices
Color : Black
CompatibleDevices : Radar Detectors
CompatibleDevices1 : Radar Detector
CompatibleDevices2 : GPS
CompatibleDevices3 : Dash Cam
CompatibleDevices4 : Laptop
CompatibleDevices5 : Personal Computer
CompatibleDevices6 : Smartphone
ConnectivityTechnology : UART via USB
ConnectorType : barrel connector
ConnectorType1 : USB Type C
ConnectorType2 : 3.5mm Audio Jack
ControlMethod : application
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 6903299865555
ExternallyAssignedProductIdentifier1 : 304695555365
ExternallyAssignedProductIdentifier2 : 0304695555365
FrequencyBandsSupported : 10.525 GHz, 24.150 GHz, 13.450 GHz, 34.700 GHz, 33.400 GHz, 11.150 GHz
Hazmat1 : LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryInEquipment
Hazmat11 : DE_SmallLithiumIonBatteryInEquipment
Hazmat12 : EG_SmallLithiumIonBatteryInEquipment
Hazmat13 : ES_SmallLithiumIonBatteryInEquipment
Hazmat14 : FR_SmallLithiumIonBatteryInEquipment
Hazmat15 : GB_SmallLithiumIonBatteryInEquipment
Hazmat16 : IE_SmallLithiumIonBatteryInEquipment
Hazmat17 : IN_SmallLithiumIonBatteryInEquipment
Hazmat18 : IT_SmallLithiumIonBatteryInEquipment
Hazmat19 : JP_SmallLithiumIonBatteryInEquipment
Hazmat2 : UN3481
Hazmat20 : MX_SmallLithiumIonBatteryInEquipment
Hazmat21 : NL_SmallLithiumIonBatteryInEquipment
Hazmat22 : PL_SmallLithiumIonBatteryInEquipment
Hazmat23 : SA_SmallLithiumIonBatteryInEquipment
Hazmat24 : SE_SmallLithiumIonBatteryInEquipment
Hazmat25 : SG_SmallLithiumIonBatteryInEquipment
Hazmat26 : TR_SmallLithiumIonBatteryInEquipment
Hazmat27 : US_SmallLithiumIonBatteryInEquipment
Hazmat28 : ZA_SmallLithiumIonBatteryInEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryInEquipment
Hazmat6 : AU_SmallLithiumIonBatteryInEquipment
Hazmat7 : BE_SmallLithiumIonBatteryInEquipment
Hazmat8 : BR_SmallLithiumIonBatteryInEquipment
Hazmat9 : CA_SmallLithiumIonBatteryInEquipment
HumanInterfaceInput : unknown
IncludedComponents : 1 x Microcontroller
InputVoltage : 24 volts
IsPortable : 1

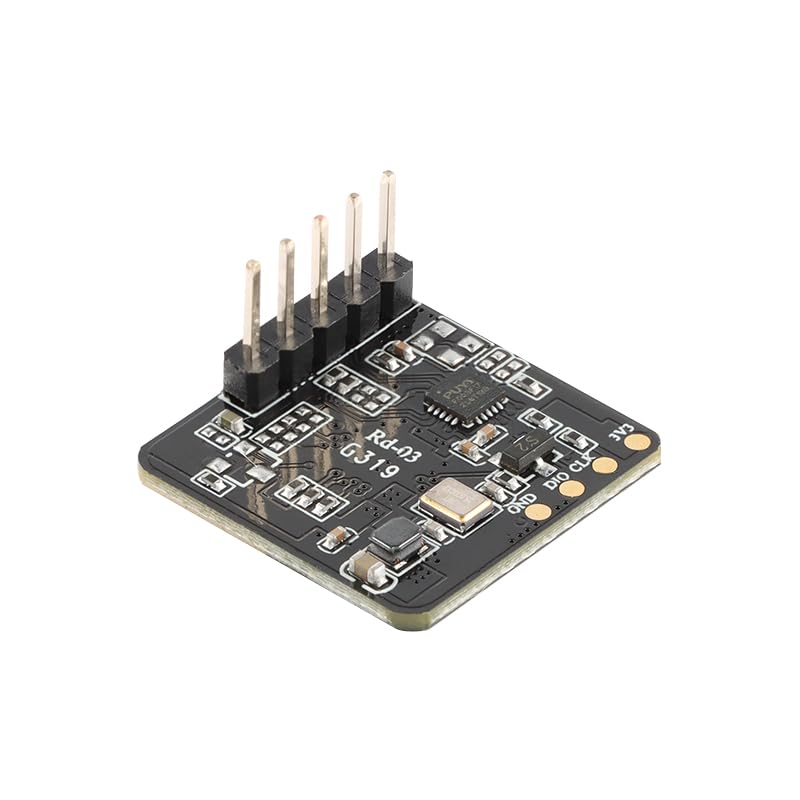

ItemName : EC Buying Rd-03 24G Radar Sensor Module Human Body Micro Motion Induction Detection Module
ItemPackageDimensions_Height : 17.3 centimeters
ItemPackageDimensions_Length : 1.2 centimeters
ItemPackageDimensions_Width : 11.7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : radar-detectors
Manufacturer : EC Buying
Material : Canvas
ModelNumber : TTTC
MountingType : Ceiling Mount, Wall Mount
NumberOfCompartments : 2
NumberOfItems : 1
NumberOfPorts : 1
OutputVoltage : 24 volts
PartNumber : TTTC
Pattern : Solid
PowerPlugType : type_d_3pin_in
PowerSourceType : Corded Electric
ProductDescription : Rd-03 is a radar module equipped with the S3KM1110 chip. S3KM1110 is an integrated single-chip millimeter wave sensor SoC based on FMCW radar transceiver technology. It operates in the 24 GHz K-band, with a modulation bandwidth of up to 1 GHz per single frequency scan. Using FMCW frequency modulation continuous wave to detect targets in the set space. Combining radar signal processing to achieve high sensitivity motion detection and micro motion detection.
The Rd-03 module can perceive whether there is movement or micro movement of the human body in the sensing area, achieving real-time detection results. Provide visual configuration tools to easily configure sensing distance range, sensing sensitivity in different intervals, and unmanned delay time.

Adopting DIP packaging, standard 2.54mm pin arrangement
The radar supports the 24GHz ISM frequency band
The radar antenna supports 1 receiver and 1 transmitter, with narrow beam width, high resolution, wide frequency band, and strong anti-interference ability
The maximum sensing distance of the radar is up to 6.5 meters
The radar has a large detection angle and a coverage range of ± 60 degrees
Accurate recognition within the radar range, support for sensing range division, and shield interference outside the range
Ultra small module size: 20 * 20mm, plug and play, real-time reporting of detection results
Intelligent parameter tuning of radar can be achieved through serial port, which is convenient and fast
Supports multiple installation methods such as ceiling and wall mounting
Support UART

Model Rd-03
Package DIP-5
Size 20.0 * 20.0 (± 0.2) mm
Antenna form onboard antenna
Spectrum range 24G~24.25GHz
Working temperature -40 ℃~85 ℃
Storage environment -40 ℃~125 ℃,<90% RH
Power supply range: Power supply voltage: 3.0V~3.6V, power supply current: ≥ 200mA
Support interface UART
The default serial port speed is 115200 bps
ProductSiteLaunchDate : 2024-05-06T01:48:50.371Z
ShellType : Soft
SpecificationMet1 : CE
SpecificationMet2 : FCC
SpecificationMet3 : RoHS
SpecificUsesForProduct1 : Radar Detector
SpecificUsesForProduct2 : Vehicle
Style : Travel
SupplierDeclaredDgHzRegulation : not_applicable
TargetGender : unisex
UnitCount : 1
UnspscCode : 46171600
Voltage : 12 volts
WarrantyType : Extended
