Specification
Brand : CIXIFM
BulletPoint : Bracket

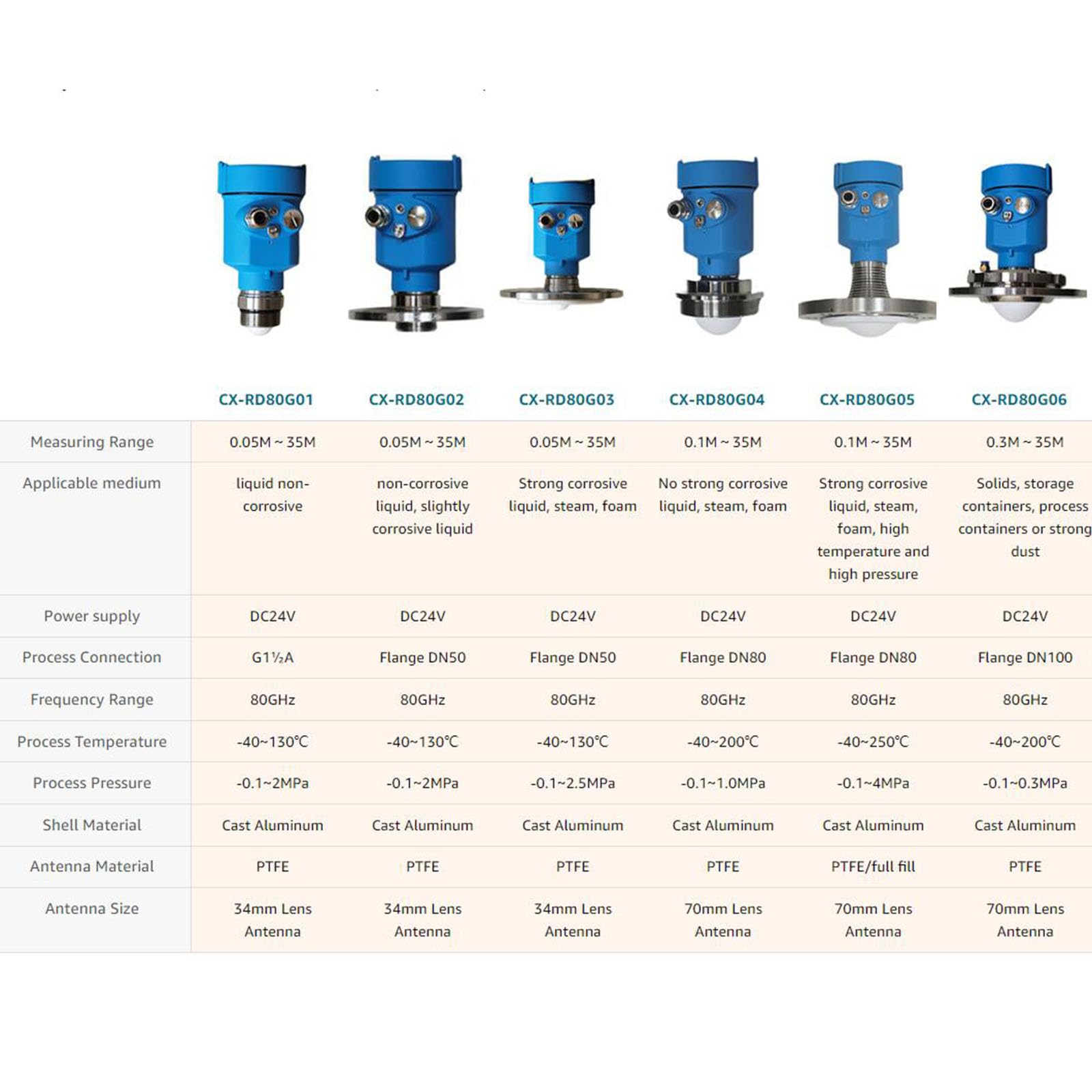

BulletPoint1 : CX-RD80G01 radar level measurement G1½A 0.05m～35m,-40~130℃ -0.1~2MPa 80GHz for liquid non-corrosive
BulletPoint2 : For millimeter-wave radar, the measurement accuracy is up to ± 2mm, and the minimum measurement blind area is 0.05m.
BulletPoint3 : Multiple lens antennas, smaller emission angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, compared to the Other radar products have higher reliability.
BulletPoint4 : The dynamic signal range is larger and is more stable for measurements of low dielectric constant media.
BulletPoint5 : Factory direct selling price, accurate measurement. High-quality after-sales customer service
Color : Black
ExternallyAssignedProductIdentifier : 4173262996025
ExternallyAssignedProductIdentifier1 : 0760207836061
ExternallyAssignedProductIdentifier2 : 760207836061
GpsrSafetyAttestation : 1
InputVoltage : 12 volts

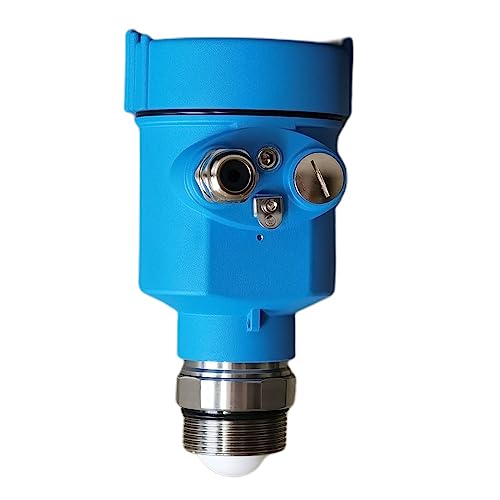

ItemName : CIXIFM 80G Radar Level Transmitter Radar Level Sensor no Corrosive Liquid Radar Type Level Transmitter Radar Level Measurement G1½A 0.05m～35m,-40~130℃ -0.1~2MPa 80GHz(RD80G01 0.05~35M 4~20mA)
ItemPackageDimensions_Height : 12.7 centimeters
ItemPackageDimensions_Length : 5.08 centimeters
ItemPackageDimensions_Width : 7.62 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : radar-detectors
Manufacturer : Shanghai Cixi Instrument Co., Ltd.
Material : RD80G01 0.05~35M 4~20mA
Material1 : Plastic
Material2 : Metal
ModelNumber : 107226
NumberOfItems : 1
OutputVoltage : 12 volts
PartNumber : CX-RD80G
PowerSourceType : Corded Electric
ProductDescription : principle:

The 80G radar bit meter adopts frequency modulation continuous wave (FMCW) technology.The antenna emits high-frequency FM radar signals, and the frequency of the radar signal increases linearly.The transmitted radar signal is received by the same- -antenna after being reflected by the measured medium.At the same time, the frequency difference between the transmitted signal frequency and the received signal frequency is proportional to the measured distance.The collected frequency difference signal obtains the frequency spectrum of the reflected echo by the fast Fourier transform (FF T), and thus calculates the distance o of the target to be measured

characteristic:

For millimeter-wave radar, the measurement accuracy is up to ± 2mm, and the minimum measurement blind area is 0.05m.

1.Smaller antenna size, to meet the more working conditions of the measurement.

2.Multiple lens antennas, smaller emission angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, compared to the Other radar products have higher reliability.

3.It is more penetrating, and can also be used normally with adhesion and condensation.

4.The dynamic signal range is larger and is more stable for measurements of low dielectric constant media.

5.A variety of measurement modes, and the radar response in the rapid measurement mod


ProductSiteLaunchDate : 2023-06-09T07:11:49.952Z
SpecificationMet : CE
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 46171600
WarrantyDescription : 12 months
