Specification
Brand : AUZHU

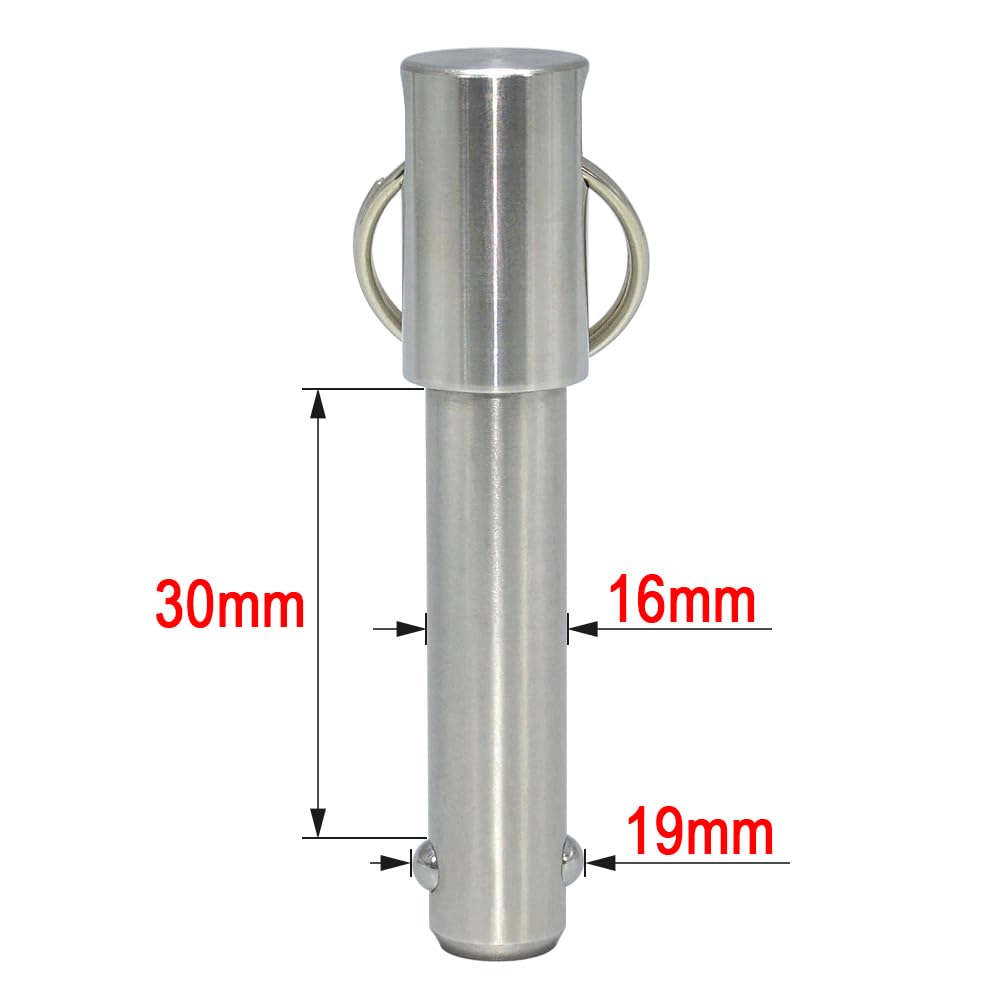

BulletPoint1 : PLS is the model number for this product. The dimensions you have chosen are: pin diameter M of 16 mm; pin clamping length L of 30 mm. Different capital letters are used in the product drawings to represent the dimensions of the various detail positions on the product. The specific dimensional data can be found under the corresponding letters in the specification sheet, and several sizes are available.
BulletPoint2 : [Pin material: 304 Stainless steel]; [Handle material: Stainless steel]; [Pull ring material: Stainless steel]; [Material of built-in locking pin: Stainless steel]; [Ball lock material: Stainless steel]; [Built-in spring material: Stainless steel ]
BulletPoint3 : The quick release pin is locked by two raised ball locks. When in use, just pull the pull ring, the built-in spring lock pin connected by the pull ring will retract the raised ball lock back into the pin, which is convenient for installation or disassembly. When the pull ring is in the relaxed state, the ball lock will naturally pop up to the convex state to achieve the effect of locking and positioning.
BulletPoint4 : Quick release pins are indexing elements, also known as positioning elements. Components designed to facilitate repetitive positioning operations on machines and equipment or parts undergoing machining. Each quick release pin is equipped with a pull ring, the pull ring can be installed or removed, and can also be used to fix the anti-loss rope. Each quick release pin is delivered with an anti-loss cord, which can be fitted or removed as required.
BulletPoint5 : Warm reminder: the data on this page are in metric millimetres. As the sizes are measured manually, there may be a slight error, but the error will be less than ±0.5 mm, please understand.
ExternallyAssignedProductIdentifier : 6211974445962
FinishType : Polished
IncludedComponents : Switch
ItemName : AUZHU- PLS- Metric- Marine Grade Stainless Steel Quick Release pins Ball Lock pins Spring pins Positioning pins Safety pins Indexing locating pins Quick Locking Latch Dowels Size: M16 mm - L30 mm
ItemPackageQuantity : 1
ItemShape : Metric- Pin Diameter: 16 Mm
ItemTypeKeyword : quick-release-pins
Manufacturer : AUZHU
Material : Stainless Steel
ModelNumber : PLS-M16-L30
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : PLS-M16-L30
PinType : Quick Release
ProductDescription : About this product:
* This quick release pin is locked by two ball locks. To use, just pull the pull ring to control the expansion and contraction of the ball locks to operate the installation or removal of the pin, which is easy and convenient to use. The quick release pins are made of high quality 304 stainless steel, this high quality stainless steel metal material can be widely used in complex environments such as food industry, high humidity environment or outdoor. It is a high-quality positioning pin with high precision, safety and environmental protection.
* Scope of application: This quick release pin is made of high-quality stainless steel, which is strong, wear-resistant and corrosion-resistant. It can be widely used in standard parts of precision equipment such as factory automation, MRO, manufacturing and processing, electronic and electrical equipment, ships, military aviation, decorative hardware, industrial manufacturing, plastic molds, etc.
* Quick Release Pins are ideal for quick fixation components, in particular when they are continuously removed and repositioned. This quick release pin is available in a variety of sizes to meet customer requirements for different sizes. It can be used with an anti-lost rope to be safer, traceable, and prevent loss.
* We are a factory, if you need more special hardware parts, we can provide customized processing services. We can customize the style and size you need according to the customer's drawings or requirements, and welcome your letters.

ProductSiteLaunchDate : 2023-08-15T18:35:19.733Z
Size : Metric- Clamping Length: 30 mm
SpecificUsesForProduct : General Purpose
UnitCount : 1
UnspscCode : 46171500
