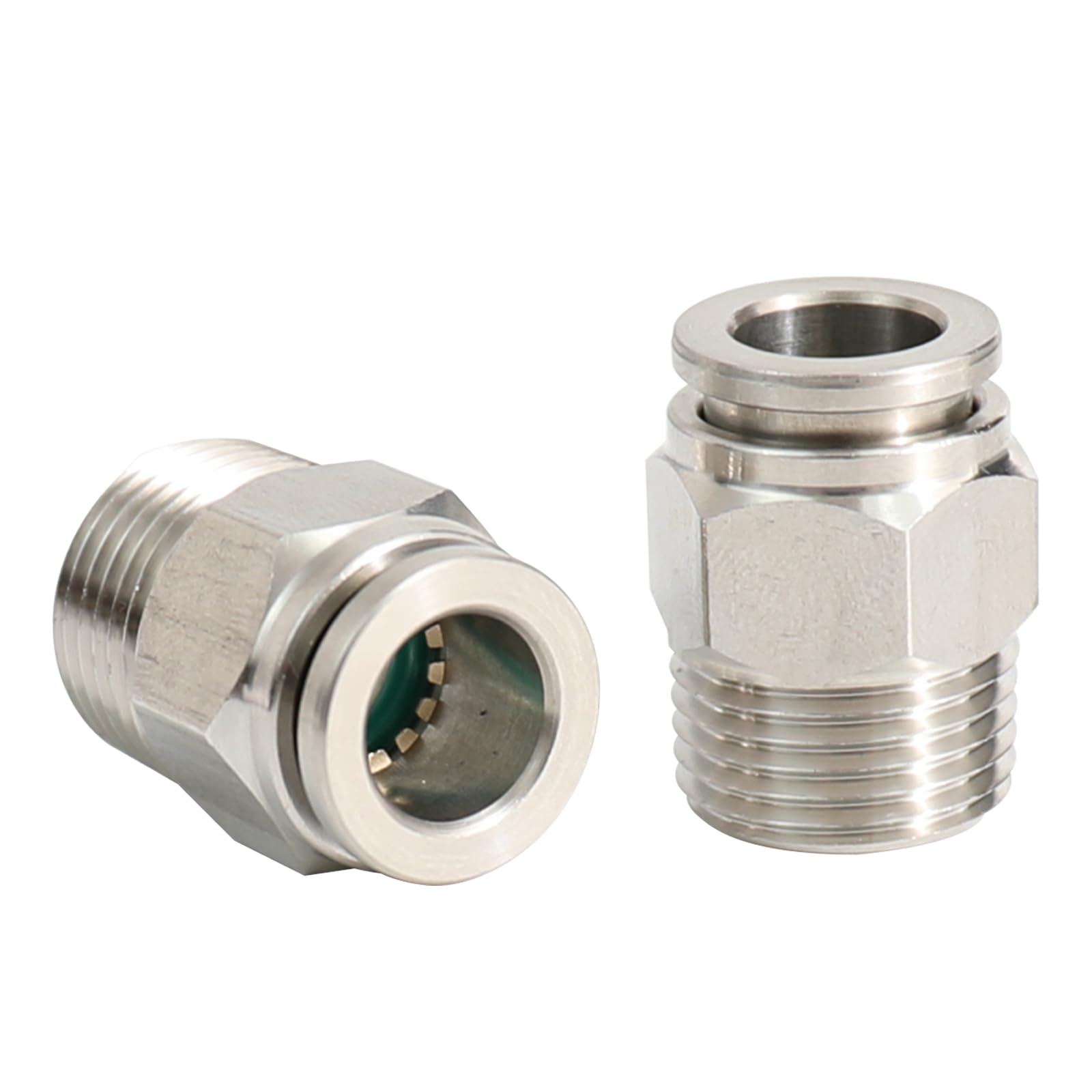

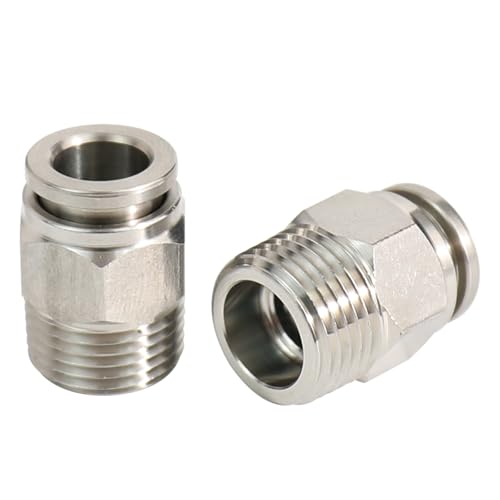

Jienk 2Pcs 304 Stainless Steel Male Straight 3/8" Tube OD x 3/8" NPT Thread Push to Connect Air Fittings, Pneumatic Push Lock Connector for Air Regulator Air Ride Air Horn Air Compressor

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 2600/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Jienk
BulletPoint1 : 【Durable】This fitting has 304 Stainless steel body and zinc alloy ferrule. Operating Pressure: 0~220 Psi. Suitable for high temperature and humid environment, corrosion resistance and a long service life.
BulletPoint2 : 【Good Sealing Performance】Stainless steel tube gripping claw makes the grip force stronger, not easy to trip or leak. External tightening with a flat wrench or socket wrench.
BulletPoint3 : 【Push Lock】Quick connect fittings easy to install and remove, just one touch to connect the tube. 360°rotation, after installation, the tube direction can be changed easily.
BulletPoint4 : 【Wildly Application】 Working Temperature: -4~392°F. This male straight quick release air fitting is most used in the field for low-pressure hydraulic and pneumatic systems such as Shop Air, Industrial, Automotive Assembly, Printing, Packaging,as well as moving parts such as cylinders, air horns, air ride and air compressor.
BulletPoint5 : 【Use Tube】PU / PA / PE
BulletPoint6 : This product is not intended for use in potable water systems
Color : Silver
ConnectorType : Male Straight
ConnectorType1 : Cap
ConnectorType2 : Elbow
ExteriorFinish : Stainless Steel
ExternallyAssignedProductIdentifier1 : 0759357406484
ExternallyAssignedProductIdentifier2 : 759357406484
IncludedComponents : Male Straight Push to Connect Air Fittings
IsValueStoresItem : 1
ItemDisplayWeight : 0.31 pounds
ItemName : Jienk 2Pcs 304 Stainless Steel Male Straight 3/8" Tube OD x 3/8" NPT Thread Push to Connect Air Fittings, Pneumatic Push Lock Connector for Air Regulator Air Ride Air Horn Air Compressor
ItemPackageDimensions_Height : 0.7 inches
ItemPackageDimensions_Length : 3 inches
ItemPackageDimensions_Width : 3 inches
ItemPackageQuantity : 1
ItemShape : 90 Degree Elbow
ItemTypeKeyword : push-to-connect-tube-fittings
Manufacturer : Jienk
Material : Stainless Steel
Material1 : Brass
Material2 : Nickel
ModelName : JT687-690
ModelNumber : 3/8" Tube OD x 3/8" NPT
NumberOfItems : 2
NumberOfPieces : 1
PartNumber : KQL06-U01
ProductDescription : Specifications:
Shape: Straight
Push-in Tubing O.D: 3/8"
Thread Size: 3/8" NPT
Body Material: 304 Stainless Steel
Ferrule: Zinc Alloy
Gripping Ring Material: Stainless Steel
Fluid type: Air, Vacuum
Negative Pressure: -29.5"Hg(-750mm Hg)
Operating Pressure: 0~1.6Mpa(0~220Psi)
Operating Temperature Range: -20-200℃(-4~392°F)
Applicable Tube: PU tube, Nylon tube , Soft PE tube
Package Included:
2 x PC3/8" Tube OD x 3/8" NPT Thread Male Straight Push to Connect Fittings

Precaution for Use:
Do Not Use Fittings with Media Other Than Air.
Do Not Use the Product Where Weld Spatters Occur at Places Where There is Excessive Rotation or Vibration of the Fittings.
Do Not Use It in Places Where Metal Powder or Sand Dust is Mixed, such as Adhesion of Other Materials.
Do Not Exceed 220Psi Pressure.
Do Not Use Outside the Service Temperature Range.
The Pre-coated PTFE Thread Sealant Does Not Guarantee NO Air Leakage. Assemble all NPT Threads with Two Wraps of Teflon Tape and then Pipe Paste/Sealant which Prevents Thread Galling.
Make Sure That the Cutting Surface of the Tube is Vertical, There is No scratch on the Tube Surface or Deformations and the Tube is Not Oval.
Never Apply Tube Joint with Additional External Load( Twisting ,Bending or Pulling).
When Inserting the Tube, It Must Be Inserted into the Bottom.
To Disassemble, Make Sure there is No Air Pressure Inside of the Tube and Push the Release Button against the Body and Remove Tube.
ProductSiteLaunchDate : 2024-08-05T06:11:17.375Z
Size : 6mm x 1/8" UNI Thread Male, Black
Style : push-to-connect
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141700
