Specification
Brand : WerFamily
BulletPoint1 : The Upc Of The Product Is 805089422008
BulletPoint2 : This Product Is A Lawn And Garden Tool Accessories
BulletPoint3 : This Product Is Manufactured In China
BulletPoint4 : Brand: Uriah Products
BulletPoint5 : Package included: 10 pcs push button switch
CircuitType : 1-way
Color : Blue
Color1 : Green
Color2 : Green
ConnectivityProtocol : Wi-Fi
ConnectorType : Plug In
ControllerType : Push Button
ControllerType1 : Push Button
ControllerType2 : Ring
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier1 : 710185899312
ExternallyAssignedProductIdentifier2 : 0710185899312
ExternallyAssignedProductIdentifier3 : 00805089422008
FitType : Universal
InternationalProtectionRating : IP67

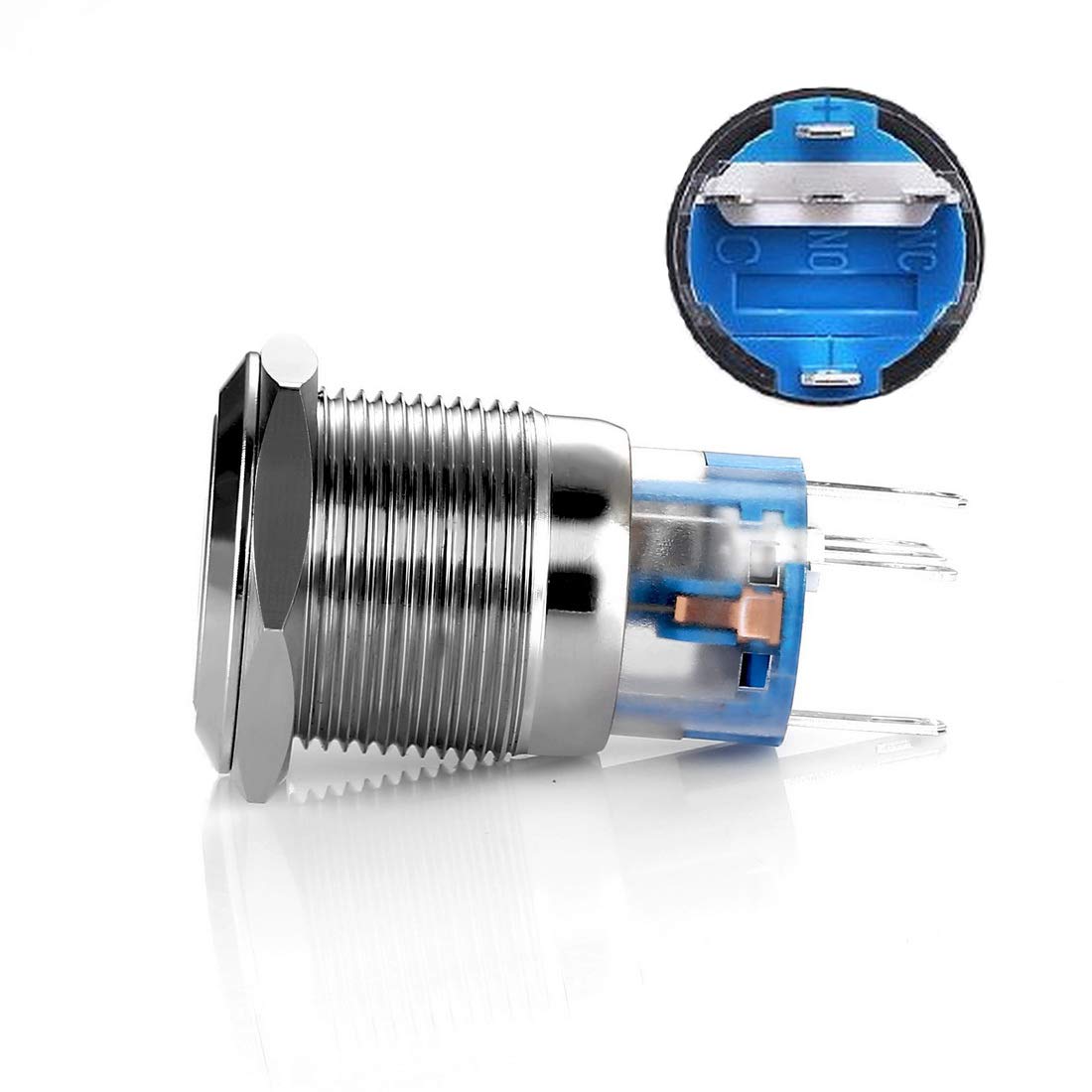

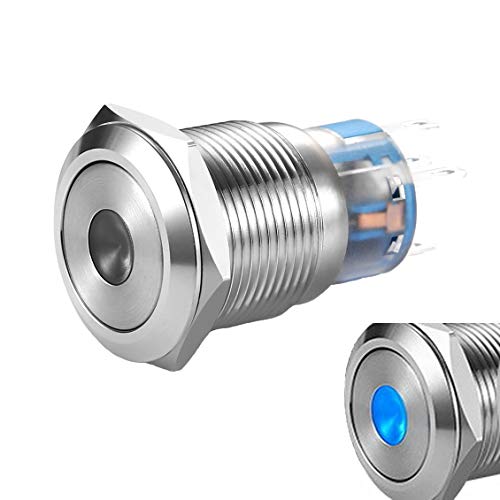

ItemName : WerFamily 19mm Latching Push Button Switch 1NO 1NC SPDT ON/Off Waterproof Stainless Steel Metal Round Flat Top with Blue Dot Illuminated LED
ItemPackageDimensions_Height : 11.557 centimeters
ItemPackageDimensions_Length : 2.159 centimeters
ItemPackageDimensions_Width : 9.017 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-pushbutton-switches
LightType : led
Manufacturer : WerFamily
Material : metal, plastic, Plastic Metal
Material1 : Stainless Steel
Material2 : Metal
ModelNumber : UA422000
MountingType : Panel Mount
NumberOfItems : 1
NumberOfPositions : 1
OperatingVoltage : 250 volts
OperationMode : Off,Push Button
PartNumber : WF-1034-L-blue
ProductDescription : Introduction:
100% Brand New and High Quality. It is a perfect choice if you are in need of a heavy duty push button! This switch is a very tough, small, panel-mount Latching switch with an illuminated LED. It can be used for basic On/Off functions perfectly. The switch is rated up to 5A and 250VAC while the LED is rated for 3-12V.

Latching switch
The Latching switch will remain on once it is pressed and stay on until it is pressed again.

Widely Use
Widely used in various additional electric equipment, relay, inside & outside the car(Such as critical lights, foglight, dome light) or any circuit controls -- any application you can think of!

Specification:
- Tail configuration: Connection terminal(2.8 X 0.5)
- Switch Rating: 5A/250VAC
- Contact resistance: ≤50mΩ
- Insulation resistance: ≥1000mΩ
- Dielectric intensity: 2000VAC
- Operation Temperature: -20℃ ~ +55℃
- Mechanical life: 500,000 cycles
- Electrical life: 50,000 cycles
- Panel thickness: 1 - 10mm
- Nut torque: 5 - 14Nm
- Operation pressure: About 3 - 5N
- Operation stroke: About 2.5mm
- Protection level: IP67, IK10
- Mounting Cut Hole: 19mm
- Head Diameter: 22mm
- Operation Type: Latching
- Switch Contact: 1NO 1NC
- Head Shape: Flat
- LED Rating: 15mA, AC/DC 12V
- LED Pattern: Dot Illuminated
- LED Color: Blue
- Contact Material: Silver alloy
- Button Material: Stainless Steel

Packing Include: 1 x push button switch

Note:
- The switch come with a rubber O-ring which makes it splash resistant but it can NOT be submerged underwater.
- Don't let current go above 5A, or the switch will get warm and to be burned out.
ProductSiteLaunchDate : 2016-08-16T08:58:18.327Z
Size : Latching
SpecificationMet : Dot,ip67
SpecificationMet1 : TUV
SpecificationMet2 : CE
StreetDate : 2017-07-28T00:00:01Z
SwitchType : Push Button
TerminalType : Button
UnitCount : 1
UnspscCode : 39122200
UpperTemperatureRating : 55 degrees_celsius
