Specification
Brand : Ulincos
BulletPoint1 : Momentary switch: Push & Hold,ON; Release,OFF
BulletPoint2 : There is no pigtails for U19D1 switch.It need to be soldered carefully
BulletPoint3 : The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it
BulletPoint4 : The rated voltage of the LED is 1.8 - 2.8V, with soldering the resistor in the package, you can fit it for 12V system
BulletPoint5 : Great for electromagnetic starter, relay, Horn Button Switch, PC Power Switch or any circuit controls
Color : Blue
ConnectivityProtocol : X-10
ControllerType : Push Button
ControllerType1 : Push Button
ControllerType2 : Ring
ControlMethod : touch
CurrentRating : 3 amps
ExternallyAssignedProductIdentifier1 : 729792917326
ExternallyAssignedProductIdentifier2 : 0729792917326
IncludedComponents : Push Button Switches
InternationalProtectionRating : IP65
ItemDisplayWeight : 20 grams
ItemName : Ulincos® Momentary Push Button Switch U19D1 1NO SPST Silver Stainless Steel Shell with Blue LED Ring Suitable for 19mm 3/4" Mounting Hole Pack with a Resistor
ItemPackageDimensions_Height : 8.5 centimeters
ItemPackageDimensions_Length : 2 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-pushbutton-switches
LightType : led
LowerTemperatureRating : -25.6 degrees_fahrenheit
Manufacturer : Ulincos
Material : manmade
ModelNumber : U19D1SB
MountingType : Panel Mount
NumberOfItems : 3
NumberOfPositions : 10
OperatingVoltage : 12 volts
OperationMode : ON-NONE-OFF
PartNumber : U19D1SB
ProductDescription : What You Get
1 * pushbutton switch
1 * resistor (680Ω)
1 * wiring instruction

What's the Pushbutton Switch

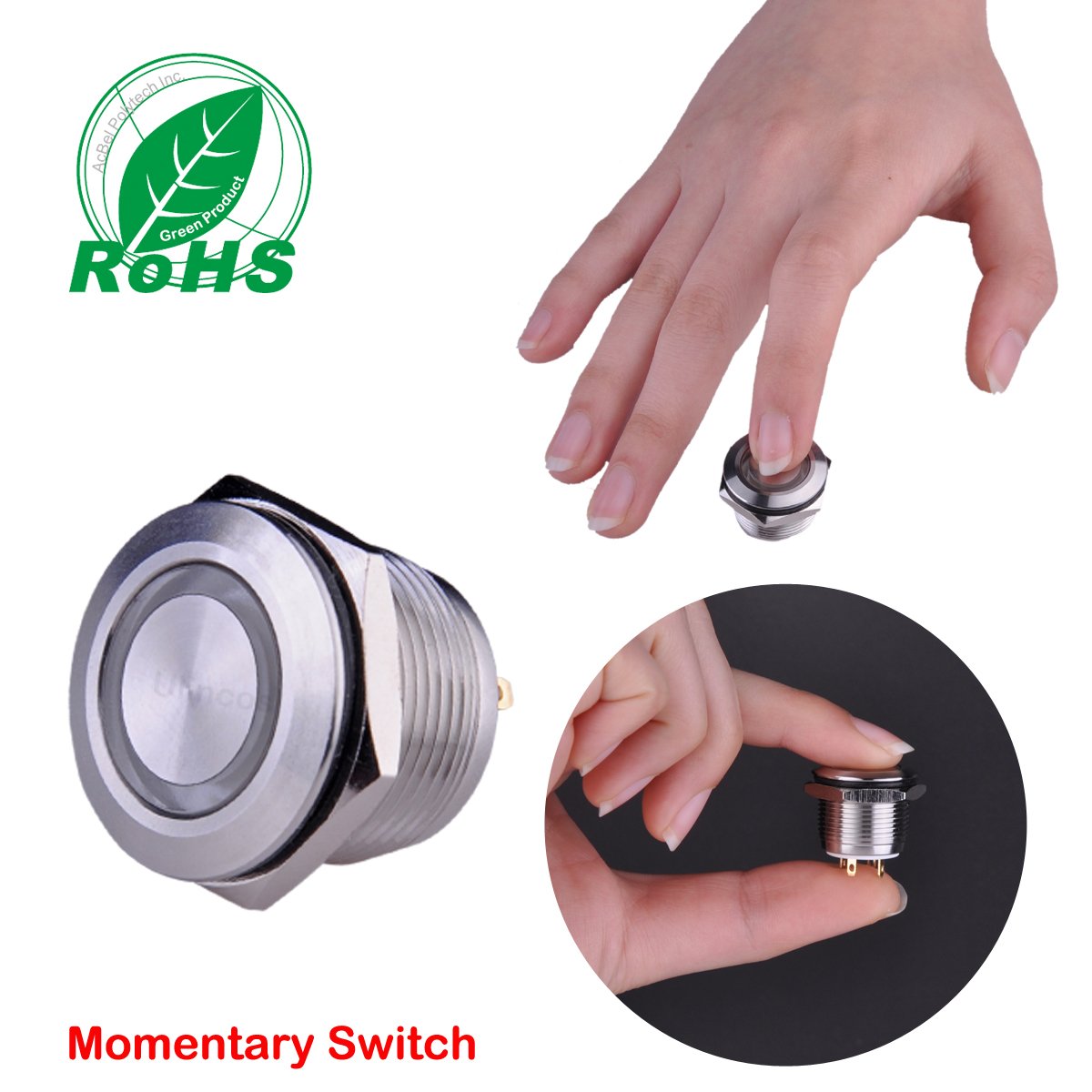

This is a perfect choice if you are in need of a rugged push button! These push buttons are a very tough, small, panel-mount momentary switch with an illuminated blue LED ring. It is a SPST with 19mm threading. These momentary buttons are rated up to 3A and 250VAC while the LED is rated for 1.8-2.8V

What's the Momentary Switch
Momentary switch, normally open, remain in ON state as long as being pressed

What's the Momentary Switch Used for
Most often momentary switches are used for circuits control in electromagnetic starter, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls

What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water
-The switch is rated up to 3A/250VAC, but the LED is rated for 1.8-2.8V, if you want the switch and LED to work under 12V, you need to add the resistor

What's the Customer Support
If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you

Specifications
Thread depth: 1/2" (12mm)
Head diameter: 7/8" (22mm)
Button diameter: 0.4" (11mm)
Mounting hole size: 3/4" (19mm)
Depth inc contacts: 0.8" (20mm)
Switch combination: 1NO
Operation types: Momentary
Switch rating: 3A/250VAC, 3A/30VDC
LED rating: 15mA, AC/DC 2.8V
Resistor: 680Ω
Head shape: Flat
Enclosure material: Stainless Steel
Protection level: IP65,IK08
ProductSiteLaunchDate : 2016-02-25T13:39:39.276Z
Size : 6mmx 6mm 4 Pin
SpecificationMet : Electromagnetic
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Push Button
TerminalType : Button
UnitCount : 1
UnspscCode : 39121300
UpperTemperatureRating : 179.6 degrees_fahrenheit
