Specification
Brand : URTONE
BulletPoint1 : Momentary Type: Push & Hold - ON, Release – OFF
BulletPoint2 : Ring LED can be on all the time or only when switch is on which depends on how you wire it
BulletPoint3 : With the connector, makes switch installation a breeze
BulletPoint4 : IP67 Waterproof & IK10 Protection: Rustproof, can be used in wet or dusty environment
BulletPoint5 : Used widely: Great for Starter switch, Relay, Doorbell button, Horn Button Switch, PC Power Switch, Kill Switch or any circuit controls
CircuitType : 1-way
Color : Blue
ConnectivityProtocol : X-10
ConnectorType : Plug In
ControllerType1 : Push Button
ControllerType2 : Ring
ControlMethod : touch
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier1 : 711508295460
ExternallyAssignedProductIdentifier2 : 0711508295460
InternationalProtectionRating : IP67
ItemName : Momentary Push Button Switch, URTONE UR168, 1NO1NC Black Metal Shell with 24V Blue LED Ring Suitable for 16mm 5/8" Mounting Hole, Include Socket
ItemPackageDimensions_Height : 7.62 centimeters
ItemPackageDimensions_Length : 1.016 centimeters
ItemPackageDimensions_Width : 6.35 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-pushbutton-switches
LightType : led
Manufacturer : URTONE
Material : Aluminum
ModelNumber : 1608SB
MountingType : Snap In Mount
NumberOfItems : 2
OperatingVoltage : 12 volts
OperationMode : Push Button
PartNumber : 1608SB
ProductDescription : UR168 Switch:

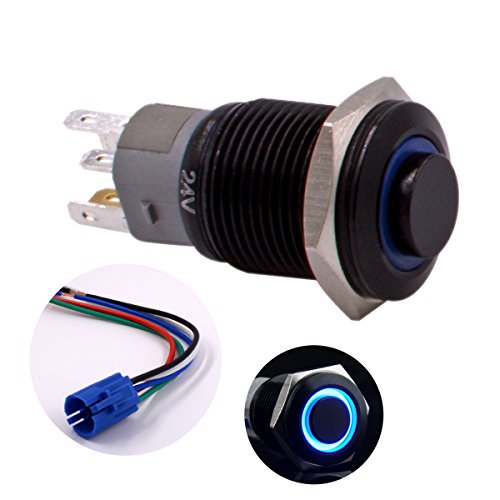

These metal buttons are rugged and look really good while doing it! Simply drill a 16mm hole into any material and you can fit these in place, there's even a rubber gasket to keep water out of the enclosure.

On the front of the button is an actuator, surrounded by a blue plastic LED ring. On the back there are 5 pins, divided into two groups. Pin + and Pin – are the genus LED light pins. There is no difference between anode and cathode. Pin C is Common, Pin NO is NORMAL OPEN, Pin NC is NORMAL CLOSED. Usually use NORMAL OPEN to control, press the button to breakover. Of course, you can also use NORMAL CLOSED to control, press the button to power off.

The UR168 switch is rated up to 5A/30VDC while the LED is rated for 15mA / 24VDC. As long as you don't exceed the rating amps and volts, it can run anything. it can be used on 12V to 24V circuit.

Momentary Switch:
Momentary switch remains in their on state as long as they’re being actuated (pressed, held, etc.).
These momentary buttons are perfect for Starter switch, Relay, Doorbell button, Horn Button Switch, PC Power Switch, Kill Switch or any circuit controls.

Note:

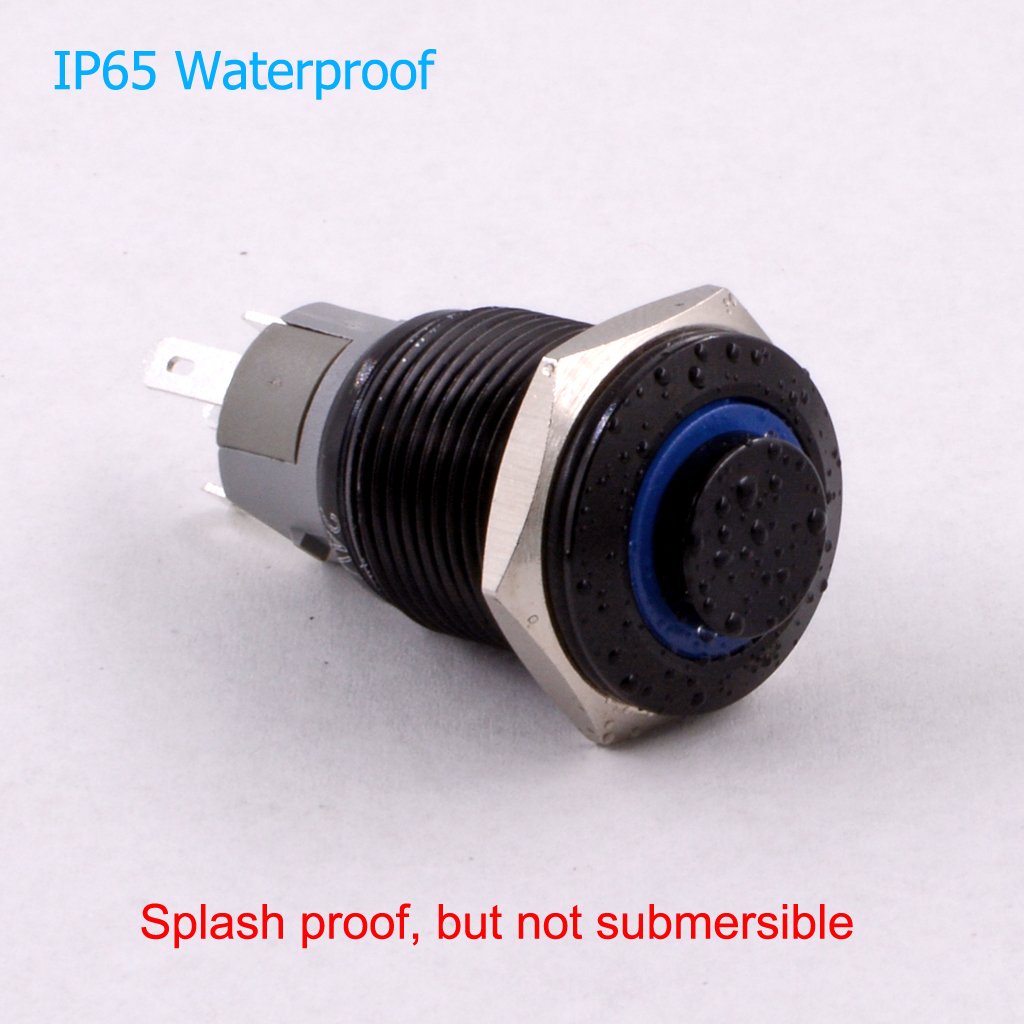

*These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.
*The more wiring diagrams, like LED on when switch is off, LED always ON, two switches control one load, etc., please contact with us.

Features:
Thread depth: 16mm (5/8")
Drill hole diameter: Φ16mm (5/8")
Head diameter: 18mm (3/4")
Depth include contacts: 34mm (1.3")
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, AC/DC 24V
LED Color: Blue
Switch contacts: 1NO1NC
Operation Type: Momentary
Head shape: High flush
Body material: Aluminium alloy
Protection level: IP67, IK10

Package Include:
1 X Push button switch
1 X Switch connector
ProductSiteLaunchDate : 2017-09-03T07:00:00.000Z
Size : 16mm
SpecificationMet : Ip67
SwitchType : Push Button
TerminalType : Solder
UnitCount : 1
UnspscCode : 39122200
Voltage : 24 volts
