Specification
Brand : URTONE
BulletPoint : Cylinders
BulletPoint1 : Latching Type: Push it - ON, push it again – OFF
BulletPoint2 : Power Symbol LED can be on all the time or only when switch is on which depends on how you wire it
BulletPoint3 : 3V~24V LED: There's a built in resistor so that the LED can be connected to 3V~24V. The higher the voltage, the brighter the LED
BulletPoint4 : 2NO2NC Switch: You can use it to control two circuits at the same time. You also can use it as an 1NO1NC / 1NO / 1NC / 2NO / 2NC switch
BulletPoint5 : With the connector, makes switch installation a breeze
CircuitType : 2-way
Color : Black with blue LED
ConnectivityProtocol : X-10
ConnectorType : Plug In
ControllerType1 : Push Button
ControllerType2 : Ring
ControlMethod : touch
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier : 7341552873524
ExternallyAssignedProductIdentifier1 : 711508295972
ExternallyAssignedProductIdentifier2 : 0711508295972
FitType : Universal
InternationalProtectionRating : IP67

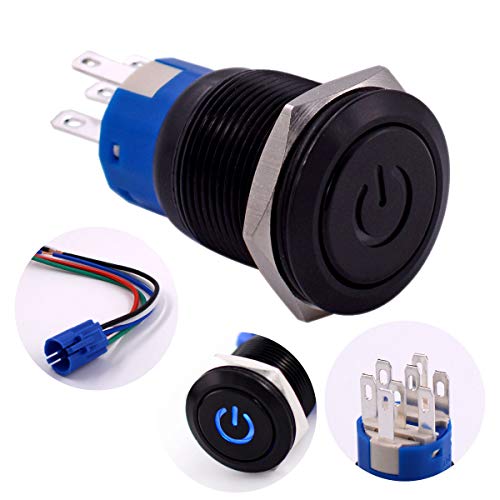

ItemName : Latching Push Button Switch, URTONE UR197, 2NO2NC DPDT Black Metal Shell with 24V Power Symbol Blue LED for 19mm 3/4" Mounting Hole, Include Socket
ItemPackageDimensions_Height : 7.62 centimeters
ItemPackageDimensions_Length : 2.54 centimeters
ItemPackageDimensions_Width : 6.35 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-pushbutton-switches
LightType : led
Manufacturer : URTONE
Material : Stainless Steel
ModelNumber : UR197
MountingType : Panel Mount
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPositions : 1
OperatingVoltage : 3 volts
OperationMode : ON-NONE-OFF
PartNumber : 1935DB
ProductDescription : UR197 Switch:
These metal buttons are rugged and look really good while doing it! Simply drill a 19mm hole into any material and you can fit these in place, there's even a rubber gasket to keep water out of the enclosure.

Pin + and Pin – are the genus LED light pins. There is no difference between anode and cathode. Pin C is Common, Pin NO is NORMAL OPEN, Pin NC is NORMAL CLOSED. Usually use NORMAL OPEN to control, press the button to breakover. Of course, you can also use NORMAL CLOSED to control, press the button to power off.

The UR197 switch is rated up to 5A/30VDC while the LED is rated for 15mA / 24VDC. As long as you don't exceed the rating amps and volts, it can run anything. If you want to use this with a higher voltage, simply add a resistor in series with the LED connection to keep the LED current at around 15mA.

Latching Switch:
Latching switch will latch into place, maintaining their state until pressed again latching back to where the started.
These latching buttons are perfect for Power Button Switch, Fog Lamps, Led Switch or any circuit controls. Also great for electronic DIY projects.

Note:
*The maximum current rating is only 5A. Don’t exceed the rating amps, or the switch will get warm and to be burned out.
*These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.

Features:
Thread depth: 16mm (5/8")
Drill hole diameter: Φ19mm (3/4")
Head diameter: 22mm (7/8")
Depth include contacts: 38mm (1.5")
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, AC/DC 24V
LED Color: Blue
Switch contacts: 2NO2NC
Operation Type: Latching
Head shape: Flat (flush-button)
Body material: Aluminium alloy
Protection level: IP67, IK10

Package Include:
1 X Push Button Switch
1 X Switch Connector
ProductSiteLaunchDate : 2018-08-20T07:00:00.000Z
Size : 19mm
SpecificationMet : Ip
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Push Button
TerminalType : Button
UnitCount : 1
UnspscCode : 39122200
Voltage : 24 volts
Wattage : 150 watts
