Specification
Brand : Larcele
BulletPoint1 : Material: Sturdy Stainless Steel button and body, Plastic, Electric Parts.
BulletPoint2 : Switch rating : 5A/250V AC. Easy to install: Screw clamp type terminals, don’t need to solder.
BulletPoint3 : A push button is a momentary or non-latching switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (such as a spring) returns the switch to its default position immediately afterwards, restoring the initial circuit condition.
BulletPoint4 : Operating temperature: -20~+55 ℃. Contact resistance: less 50 MΩ. Insulation resistance: over 1000 MΩ.
BulletPoint5 : Commonly used as vehicle horns, ignition switch, doorbells, home appliances button,and car, engineering equipment project.
Color : Screw Terminal,Flat Head
Color1 : Blue
Color2 : Blue
ConnectivityProtocol : X-10
ConnectorType : clamp,screw,solder
ControllerType : Push Button
ControllerType1 : Push Button
ControllerType2 : Ring
CurrentRating : 5 amps
Department : Mens
ExternallyAssignedProductIdentifier1 : 759974871634
ExternallyAssignedProductIdentifier2 : 0759974871634
ExternallyAssignedProductIdentifier3 : 00700836835271
InternationalProtectionRating : ip65

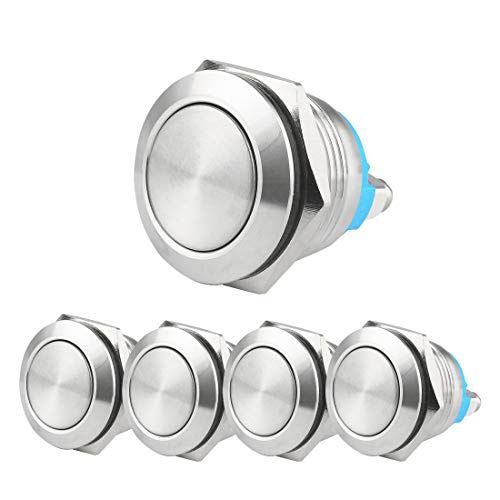

ItemName : Larcele 19mm Push Button Switch Waterproof Momentary Metal DIY Switch 1No Stainless Steel Shell JSANKG-17,5 Pieces(Screw Terminal,Flat Head)
ItemPackageDimensions_Height : 11.43 centimeters
ItemPackageDimensions_Length : 0.762 centimeters
ItemPackageDimensions_Width : 7.874 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-pushbutton-switches
LightType : led
Manufacturer : Larcele
Material : Plastic
Material1 : Stainless Steel
Material2 : Plastic
Material3 : Metal
ModelNumber : JSANKG-17US-FT19QA-F10L-K5
MountingType : Panel Mount
NumberOfItems : 5
NumberOfPositions : 5
OperatingVoltage : 250 volts
OperationMode : ON-NONE-OFF
PartNumber : LCE-WD19-US-JSANKG-17
ProductDescription :

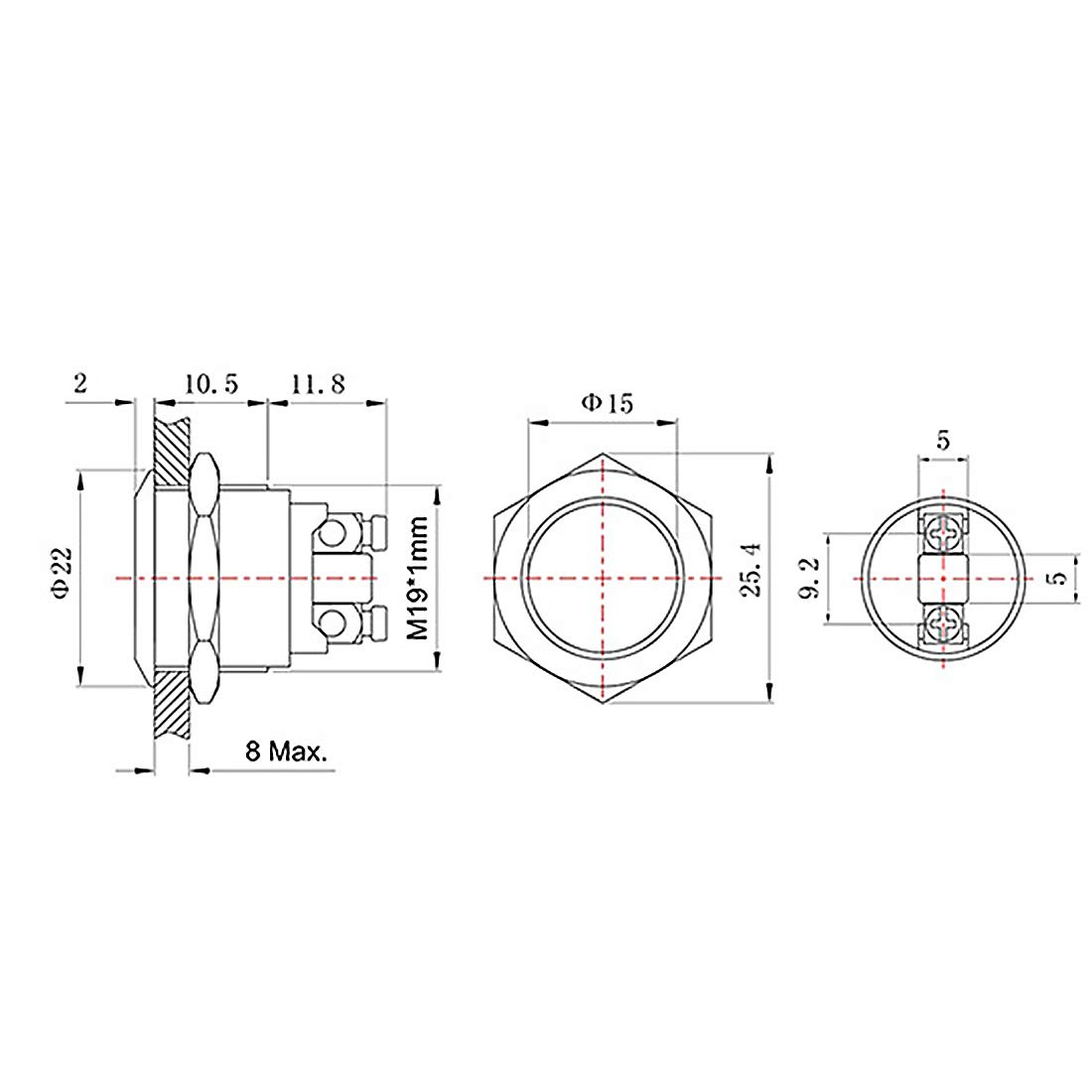

Mounting hole size: 0.75" (19mm)
Operation Type: Momentary.
Switch combination: 1NO
Protection level: IP65, IK09
Panel Thickness: 1-8mm
Nut Torque: 5-14Nm
Dielectric Strength: 2000VAC/min
Package included: 5 pieces Push Button Switch

Momentary Switch:
Momentary switches are switches which only remain in their on state as long as they're being actuated (pressed, held, etc.).
These reset buttons are perfect for coffee machine, Horn Button Switch, PC Power Switch or any circuit controls. Also great for electronic DIY projects.

Easy to install, it has non-solder connections,screw-type terminals to make fitting very easy
Note:
1.Installation instruction and wiring diagram are not included in the package.
2.Professional installation is highly recommended.

ProductSiteLaunchDate : 2019-04-17T07:00:00.000Z
Size : Latching
SpecificationMet : Ip
StreetDate : 2017-03-12T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Push Button
TerminalType : Button,screw,screw Terminal,solder
UnitCount : 1
UnspscCode : 39122216
