Specification
Brand : Larcele
BulletPoint1 : Material: Sturdy Stainless Steel button and body, Plastic, Electric Parts.
BulletPoint2 : Switch rating : 2A/36V DC;2A/250V AC. Mounting hole size: 5/8" (16mm).
BulletPoint3 : A push button is a momentary or non-latching switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (such as a spring) returns the switch to its default position immediately afterwards, restoring the initial circuit condition.
BulletPoint4 : Operating temperature: -20~+55 ℃. Contact resistance: less 50 MΩ. Insulation resistance: over 1000 MΩ.
BulletPoint5 : Commonly used as vehicle horns, ignition switch, doorbells, home appliances button,and car, engineering equipment project.
CircuitType : 1-way
Color : J Pin Terminal,High Round Head
ConnectivityProtocol : X-10
ConnectorType : Solder
ControllerType : Push Button
ControlMethod : touch
CurrentRating : 2 amps
ExternallyAssignedProductIdentifier : 8011616925405
ExternallyAssignedProductIdentifier1 : 845832015255
ExternallyAssignedProductIdentifier2 : 0845832015255
ExternallyAssignedProductIdentifier3 : 00700955694551
FitType : Universal
InternationalProtectionRating : ip65

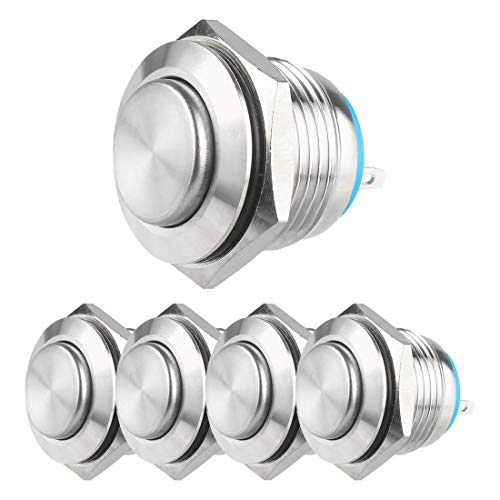

ItemName : Larcele 16mm Push Button Switch Waterproof Momentary Metal DIY Switch 1No Stainless Steel Shell JSANKG-01,5 Pieces(J Pin Terminal,High Round Head)
ItemPackageDimensions_Height : 20 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 15 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-pushbutton-switches
LightType : led
Manufacturer : Larcele
Material : Aluminum
Material1 : Stainless Steel
Material2 : Plastic
Material3 : Metal
ModelNumber : FT16QA-H10-C6
MountingType : Panel Mount
NumberOfItems : 5
NumberOfPositions : 1
OperatingVoltage : 250 volts
OperationMode : ON-NONE-OFF
PartNumber : LCE-WD16-A0004413
ProductDescription :
Mounting hole: 5/8" (16mm)
Operation Type: Momentary.
Switch combination: 1NO
Protection level: IP65, IK08
Panel Thickness: 1-8mm
Nut Torque: 5-14Nm
Dielectric Strength: 2000VAC/min
Package included: 5 pieces Push Button Switch

Momentary Switch:
Momentary switches are switches which only remain in their on state as long as they're being actuated (pressed, held, etc.).
These reset buttons are perfect for coffee machine, Horn Button Switch, PC Power Switchor any circuit controls. Also great for electronic DIY projects.

The terminals are very small, need to be very careful when soldering the wires on to them.
Recommended solder within 3 seconds
Note:
1.Installation instruction and wiring diagram are not included in the package.
2.Professional installation is highly recommended.

ProductSiteLaunchDate : 2019-04-02T07:00:00.000Z
Size : 16mm
SpecificationMet : Ip
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Push Button
TerminalType : Button,pin Terminal
UnitCount : 1
UnspscCode : 39122200
UpperTemperatureRating : 55 degrees_celsius
