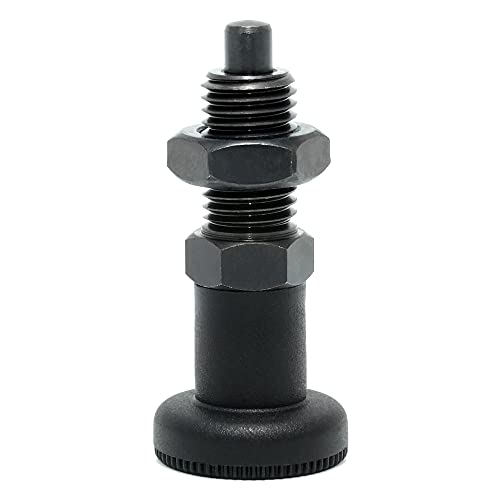

AUZHU- PTK - Metric- Steel Indexing plungers Locking plungers Without Rest Position Spring plungers Locating plungers Dowels Positioning Elements Safety pins Wheel Bolts Size: M20 mm - Pitch 1.5 mm

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 7600/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : AUZHU

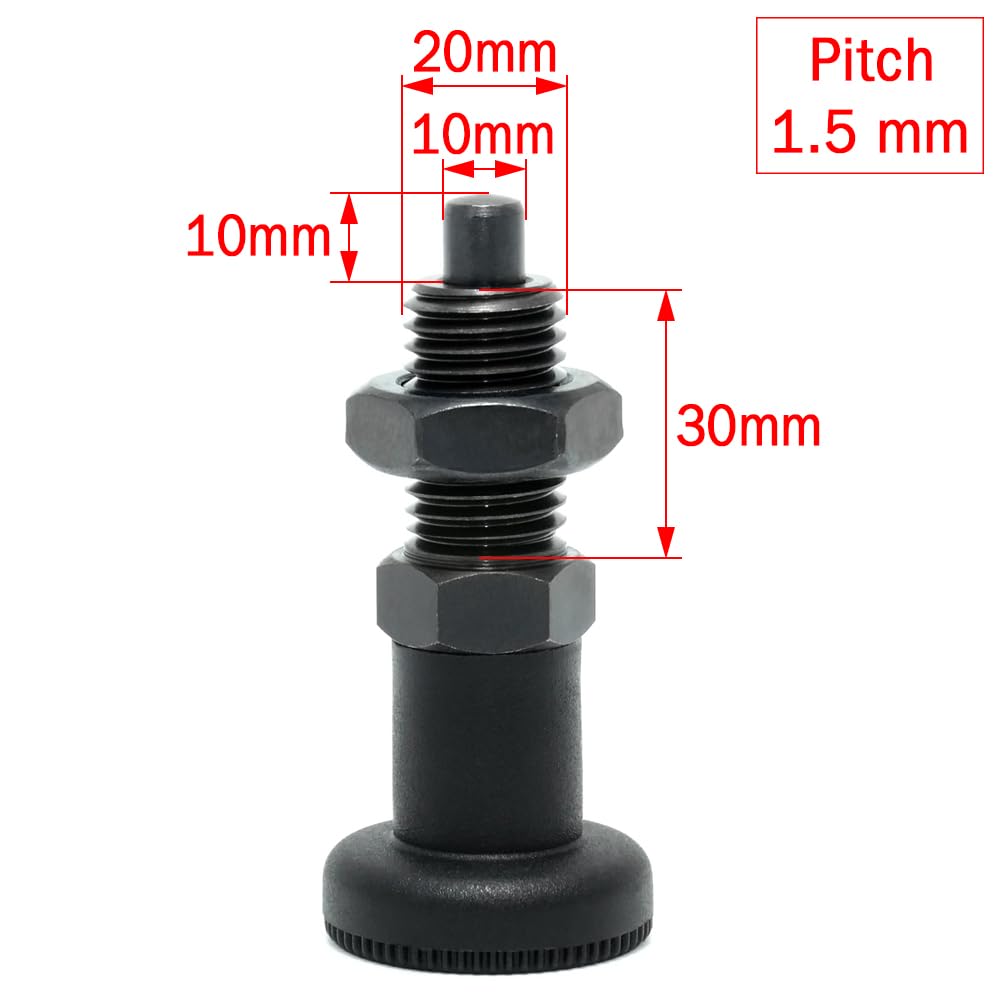

BulletPoint1 : PTK is the model number for this product. The dimensions you choose are: thread diameter M of 20 mm; thread length L of 30 mm; thread pitch of 1.5 mm; diameter B of the spring pin of 10 mm; and length S of the spring pin of 10 mm. Different capital letters are used in the product drawings to represent the dimensions of the various detail positions on the product. The specific dimensional data can be found in the specification sheet under the corresponding letter.
BulletPoint2 : [Material of main body: Carbon Steel]; [Surface treatment of main body: Black Oxide]; [Material of spring pin: Carbon Steel]; [Surface treatment of spring pin: Black Oxide]; [Material of the handle: Nylon 6 (Mat Black)]; [Material of built-in spring: Stainless Steel ]
BulletPoint3 : How to use: This Indexing plungers can be divided into two types of mechanical structures with a lock type and without a lock type. This product model PTK is an indexing plunger without a lock type, which can be controlled by pulling the handle the extension and retraction of the spring pin, but the rotation of the handle has no effect on the pin. In use, the handle is pulled out and the pin retracts into the interior of the plunger; release the handle and the pin pops out.
BulletPoint4 : This product is an indexing plunger with a built-in spring. The extension and retraction of the pin can be controlled by adjusting the handle, so as to achieve the effect of indexing, positioning or stop limit. Indexing elements are designed to reproduce locked positions defined by indexing bores. Indexing plungers are made up of a threaded body with or without a knob and a plunger, in different high-quality materials: steel, stainless steel and aluminum alloy.
BulletPoint5 : Warm reminder: the data on this page are in metric millimetres. As the sizes are measured manually, there may be a slight error, but the error will be less than ±0.5 mm, please understand.
Color : silver
ExternallyAssignedProductIdentifier : 18470026178073
IncludedComponents : Deep Groove Bearings
ItemDisplayDimensions_Height : 0.47 centimeters
ItemDisplayDimensions_Length : 0.98 centimeters
ItemDisplayDimensions_Width : 1.89 centimeters
ItemDisplayWeight : 0.17 pounds
ItemName : AUZHU- PTK - Metric- Steel Indexing plungers Locking plungers Without Rest Position Spring plungers Locating plungers Dowels Positioning Elements Safety pins Wheel Bolts Size: M20 mm - Pitch 1.5 mm
ItemPackageDimensions_Height : 11.5 centimeters
ItemPackageDimensions_Length : 2.2 centimeters
ItemPackageDimensions_Width : 7.8 centimeters
ItemPackageQuantity : 20
ItemShape : Ptk
ItemTypeKeyword : push-fit-ball-nose-spring-plunger
Manufacturer : AUZHU
Material : Carbon Steel
MeasurementSystem : Metric
ModelName : NPQPNAFC
ModelNumber : PTK-M20-L30-S10
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : PTK-M20-L30-S10
Pattern : Solid
PinType : Linchpins
ProductDescription : About this product:
* This indexing plunger is available in two materials: stainless steel and carbon steel. The product models of different materials are different. It is recommended to choose the material suitable for you according to the usage scene. The steel material has high rigidity, high strength, high toughness and excellent heat resistance, can be welded, uniform in material and high structural reliability. Stainless steel material has excellent rust resistance, corrosion resistance, high temperature resistance, low temperature resistance, wear resistance, high hardness, safety and environmental protection, and can be adapted to high humidity environments, navigation and aviation fields or food processing industries.
* Scope of application: This indexing plunger is made of high-quality steel, which is strong, wear-resistant and corrosion-resistant. It can be widely used in standard parts of precision equipment such as factory automation, MRO, manufacturing and processing, electronic and electrical equipment, ships, military aviation, decorative hardware, industrial manufacturing, plastic molds, etc.
* We are a factory, if you need more special hardware parts, we can provide customized processing services. We can customize the style and size you need according to the customer's drawings or requirements, and welcome your letters.

ProductSiteLaunchDate : 2022-10-18T13:55:10.822Z
Size : Thread diameter: 20 mm, Pitch: 1.5 mm
SpecificationMet : ABEC 3
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 31160000
