Specification
Brand : AUZHU
BulletPoint : Please select the model you need to buy

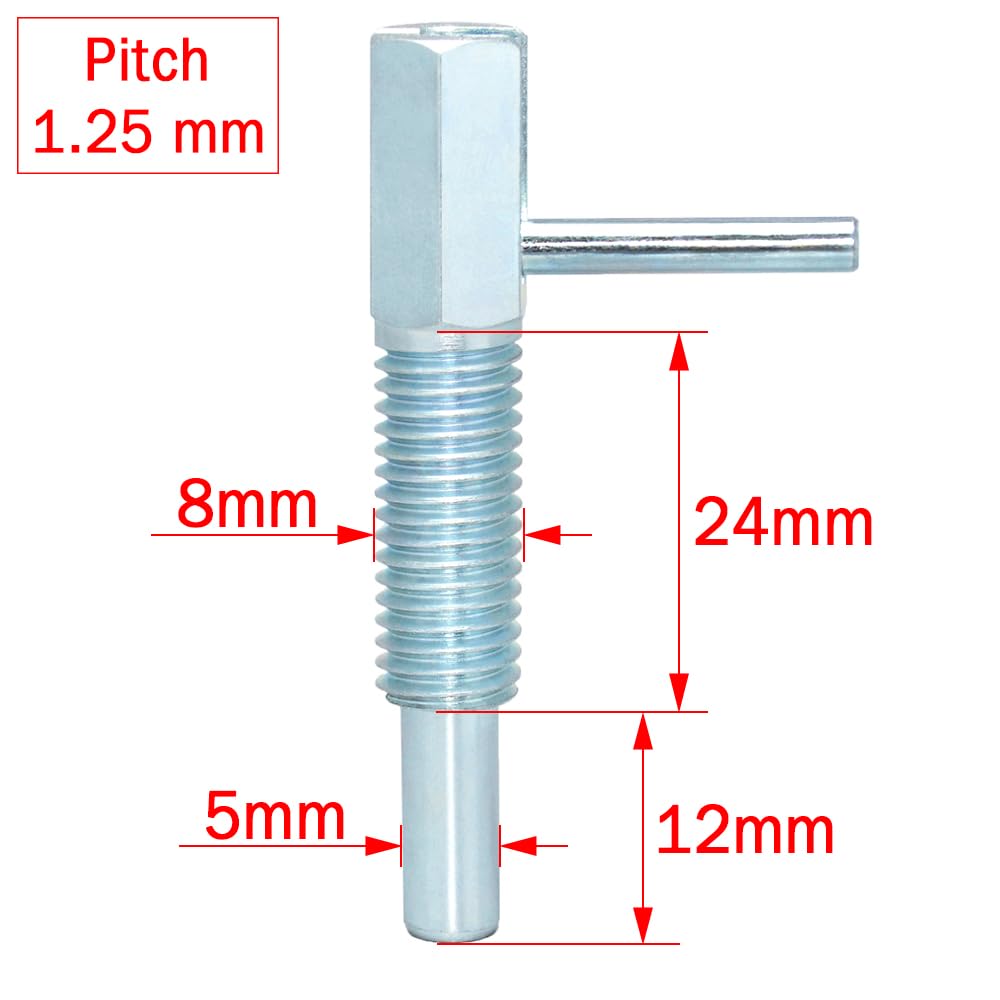

BulletPoint1 : PTH is the model number for this product. The dimensions you choose are: thread diameter M of 8 mm; thread length L of 24 mm; thread pitch of 1.25 mm; diameter B of the spring pin of 5 mm; and length S of the spring pin of 12 mm. Different capital letters are used in the product drawings to represent the dimensions of the various detail positions on the product. The specific dimensional data can be found in the specification sheet under the corresponding letter.
BulletPoint2 : [Material of main body: Carbon Steel]; [Surface treatment of main body: Galvanized]; [Material of spring pin: Carbon Steel]; [Surface treatment of spring pin: Galvanized]; [Material of the handle: Carbon Steel]; [Surface treatment of handle: Galvanized]; [Material of built-in spring: Stainless Steel ]
BulletPoint3 : How to use: Pull out the L-shaped handle when in use, and the pin will retract into the inside of the bolt. Pulling the L-shaped handle further and turning it so that the L-shaped handle hangs on the plunger body and release, the pin can always remain retracted inside the bolt. When the pin needs to be ejected, pull the L-shaped handle again and turn it so that the L-shaped handle is embedded in the groove of the plunger body and then release, and the pin will pop out.
BulletPoint4 : This product is an indexing plunger with a built-in spring. The extension and retraction of the pin can be controlled by adjusting the handle, so as to achieve the effect of indexing, positioning or stop limit. Indexing elements are designed to reproduce locked positions defined by indexing bores. Indexing plungers are made up of a threaded body with or without a knob and a plunger, in different high-quality materials: steel, stainless steel and aluminum alloy.
BulletPoint5 : Warm reminder: the data on this page are in metric millimetres. As the sizes are measured manually, there may be a slight error, but the error will be less than ±0.5 mm, please understand.

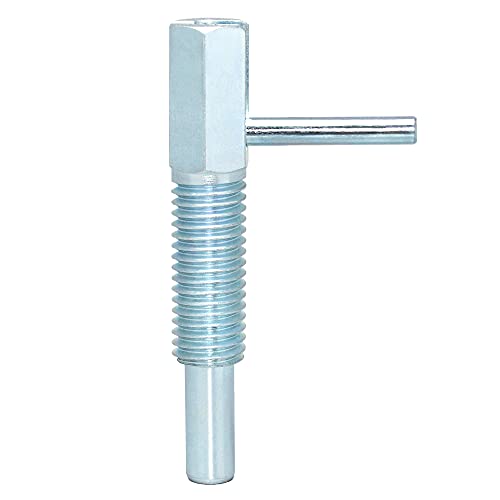

ItemName : AUZHU- PTH - Metric- Steel Galvanised Indexing plungers Locking plungers with Rest Position Spring plungers Locating plungers Dowels Positioning Elements Wheel Bolts Size: M8 mm - Pitch 1.25 mm
ItemPackageQuantity : 1
ItemShape : Pth
ItemTypeKeyword : push-fit-ball-nose-spring-plunger
Manufacturer : AUZHU
Material : Carbon Steel
MeasurementSystem : Metric
ModelNumber : PTH-M8
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : PTH-M8
PinType : Linchpins
PinType1 : Spring
PinType2 : Dowel
ProductDescription : About this product:
* This indexing plunger is available in two materials: stainless steel and carbon steel. The product models of different materials are different. It is recommended to choose the material suitable for you according to the usage scene. The steel material has high rigidity, high strength, high toughness and excellent heat resistance, can be welded, uniform in material and high structural reliability. Stainless steel material has excellent rust resistance, corrosion resistance, high temperature resistance, low temperature resistance, wear resistance, high hardness, safety and environmental protection, and can be adapted to high humidity environments, navigation and aviation fields or food processing industries.
* Scope of application: This indexing plunger is made of high-quality steel, which is strong, wear-resistant and corrosion-resistant. It can be widely used in standard parts of precision equipment such as factory automation, MRO, manufacturing and processing, electronic and electrical equipment, ships, military aviation, decorative hardware, industrial manufacturing, plastic molds, etc.
* We are a factory, if you need more special hardware parts, we can provide customized processing services. We can customize the style and size you need according to the customer's drawings or requirements, and welcome your letters.

ProductSiteLaunchDate : 2023-08-09T09:56:24.415Z
Size : Thread diameter: 8 mm, Pitch: 1.25 mm
SupplierDeclaredDgHzRegulation : not_applicable
