Specification
Brand : AUZHU

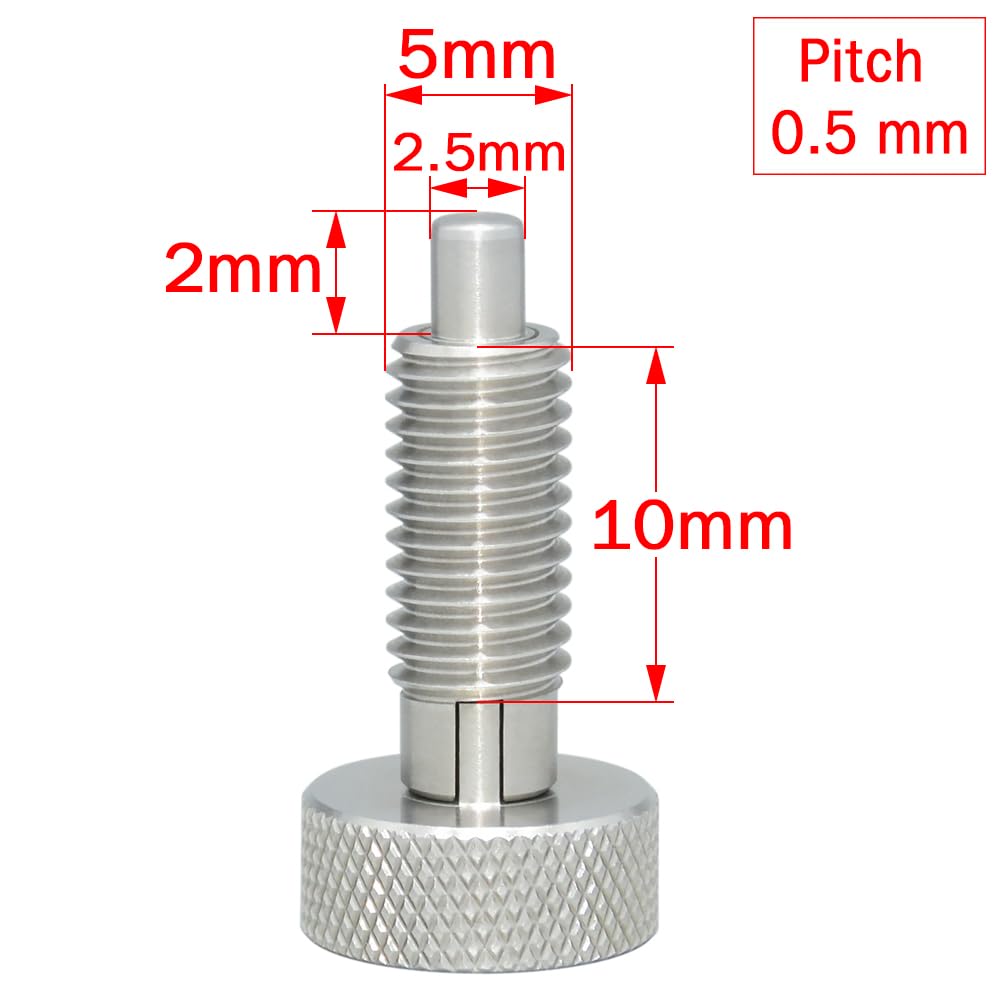

BulletPoint1 : PTC is the model number for this product. The dimensions you choose are: thread diameter M of 5 mm; thread length L of 10 mm; thread pitch of 0.5 mm; diameter B of the spring pin of 2.5 mm; and length S of the spring pin of 2 mm. Different capital letters are used in the product drawings to represent the dimensions of the various detail positions on the product. The specific dimensional data can be found in the specification sheet under the corresponding letter.
BulletPoint2 : [Material of the main body: 304 Stainless Steel]; [Material of the pin: Stainless Steel]; [Material of the handle: Stainless Steel]; [Material of the built-in spring: Stainless Steel]
BulletPoint3 : How to use: This Indexing plungers can be divided into two types of structures with a lock type and without a lock type. This product model PTC is an plunger with a lock type. When in use, pull the handle out and rotate it 90 degrees and release it, clip the handle on the main body, and the pin will always keep retracted in the plunger; when the pin needs to be ejected, pull the handle again and rotate it 90 degrees and release it, Insert the handle into the groove and the pin will pop out.
BulletPoint4 : This product is an indexing plunger with a built-in spring. The extension and retraction of the pin can be controlled by adjusting the handle, so as to achieve the effect of indexing, positioning or stop limit. Indexing elements are designed to reproduce locked positions defined by indexing bores. Indexing plungers are made up of a threaded body with or without a knob and a plunger, in different high-quality materials: steel, stainless steel and aluminum alloy.
BulletPoint5 : Warm reminder: the data on this page are in metric millimetres. As the sizes are measured manually, there may be a slight error, but the error will be less than ±0.5 mm, please understand.
BulletPoint6 : The spring plunger is an important component for providing pressure and accurate positioning
Color : M16
ExternallyAssignedProductIdentifier : 9306745984188
ExternallyAssignedProductIdentifier1 : 0602950125637
ExternallyAssignedProductIdentifier2 : 602950125637

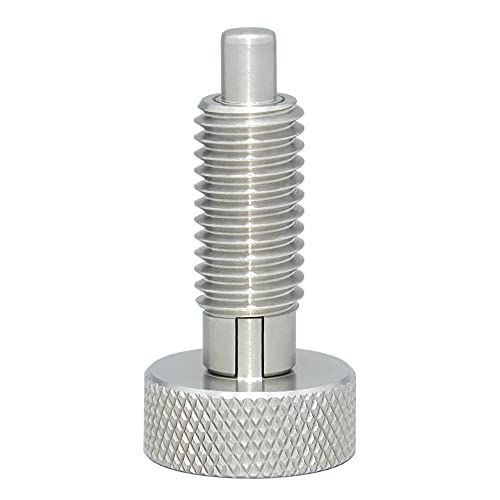

ItemName : AUZHU- PTC- Metric- Stainless Steel Indexing plungers Locking plungers with Rest Position Spring plungers Locating plungers Dowels Positioning Elements Wheel Bolts Size: M5 mm - Pitch 0.5 mm
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemShape : Ptc
ItemTypeKeyword : push-fit-ball-nose-spring-plunger
Manufacturer : AUZHU
Material : Stainless Steel
Material1 : Zinc
Material2 : Stainless Steel
Material3 : steel
MeasurementSystem : Metric
ModelNumber : PTC
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : PTC-M5-L10-B2.5-S2 mm
PinType : Linchpins
PinType1 : Quick Release
PinType2 : Spring
ProductDescription : About this product:
* This indexing plunger is available in two materials: stainless steel and carbon steel. The product models of different materials are different. It is recommended to choose the material suitable for you according to the usage scene. The steel material has high rigidity, high strength, high toughness and excellent heat resistance, can be welded, uniform in material and high structural reliability. Stainless steel material has excellent rust resistance, corrosion resistance, high temperature resistance, low temperature resistance, wear resistance, high hardness, safety and environmental protection, and can be adapted to high humidity environments, navigation and aviation fields or food processing industries.
* Scope of application: This indexing plunger is made of high-quality stainless steel, which is strong, wear-resistant and corrosion-resistant. It can be widely used in standard parts of precision equipment such as factory automation, MRO, manufacturing and processing, electronic and electrical equipment, ships, military aviation, decorative hardware, industrial manufacturing, plastic molds, etc.
* We are a factory, if you need more special hardware parts, we can provide customized processing services. We can customize the style and size you need according to the customer's drawings or requirements, and welcome your letters.

ProductSiteLaunchDate : 2023-03-13T16:57:25.545Z
Size : Thread diameter: 5 mm, Pitch: 0.5 mm
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 31163200
